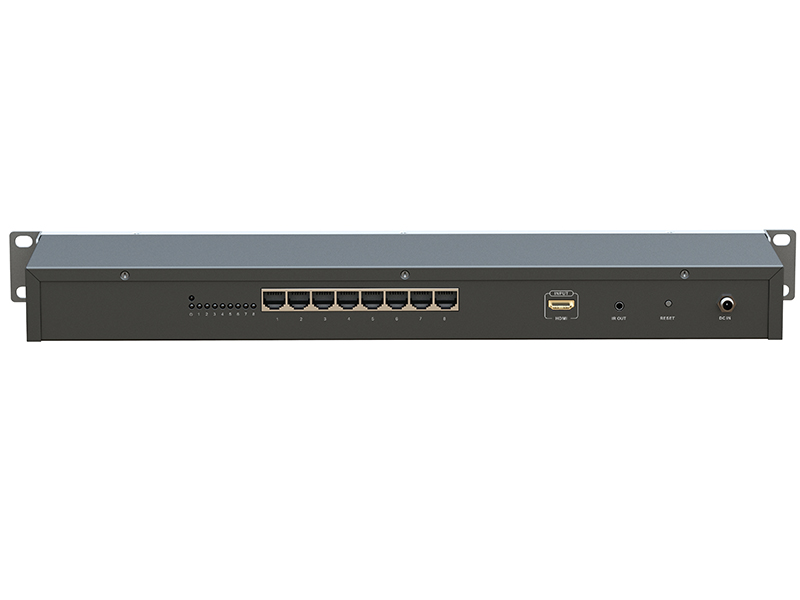

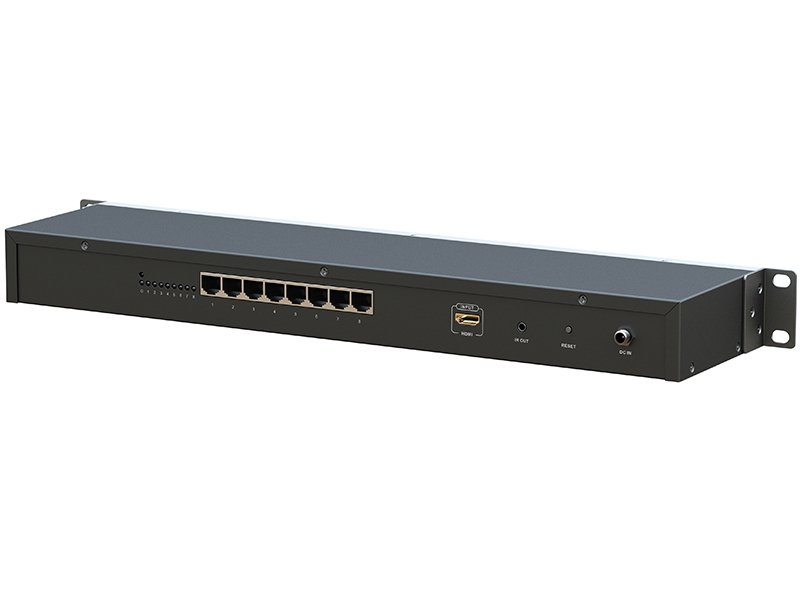

4K-HDbitT 4KX2K 1X8 HDMI Extender Splitter over CAT6 with IR

This is the perfect solution for splitting and extending your HDMI signal with ultra HD resolution to multiple displays over long distance. It uses HDbitT technology to split 1 HDMI source to 8 displays simulataneously over single CAT6 cable for each display up to 120m / 394ft, any one of eight HDbitT 4K receiver works with the splitter individually, and the highest resolution supported is 4Kx2K@30Hz.

Features

• Split 1 HDMI source to 8 HDbitT displays
• Compatible with Cat 6/6a/7 cable
• Supports resolutions up to 4K*2K (3840 x 2160 @ 30Hz)
• Supports transmission distance up to 394feet (120 meters)
• Supports IR pass-back function
• Plug and play

1 HDMI Source in and 8 HDMI Displays out

This HDbitT splitter distributes 1 HDMI source to 8 HDMI displays over CAT6 cable for each display
at the same time. It offers UHD video solution for data control center, conference rooms,
education and training, showroom display, home entertainment systems etc.

120M Transmission Distance over CAT5/5e/6

This product converts the HDMI signal to standard network signal and transfer over CAT5/5e/6 cable,
to break through the limitation of HDMI cable making the transmission distance up to
120 meters(394ft). It is a cost-effective solution for A/V integration.

4Kx2K

This HDMI Extender Splitter is fully compatible with HDMI 1.4, and the highest resolutions
supported is up to 4Kx2K@30Hz. Professional performance, coupled with UHD
resolutions, makes it an ideal choice for business users.

Auto Adjustment to Match Cable Length

     Adjust the specifications automatically for different cable lengths 1-120m(394ft) to achieve
the best display, without any manual configuration.

IR Pass-back Function

     Infrared Radiation pass-through compatible, allow source device to recognize remote
commands at a secondary location, supports standard 20~60KHz IR devices.

7x24 Hours of Continuous Work

LKV318-4K-HDbitT adopts all metal shell design  for better heat dissipation for more
professional industrial application.
