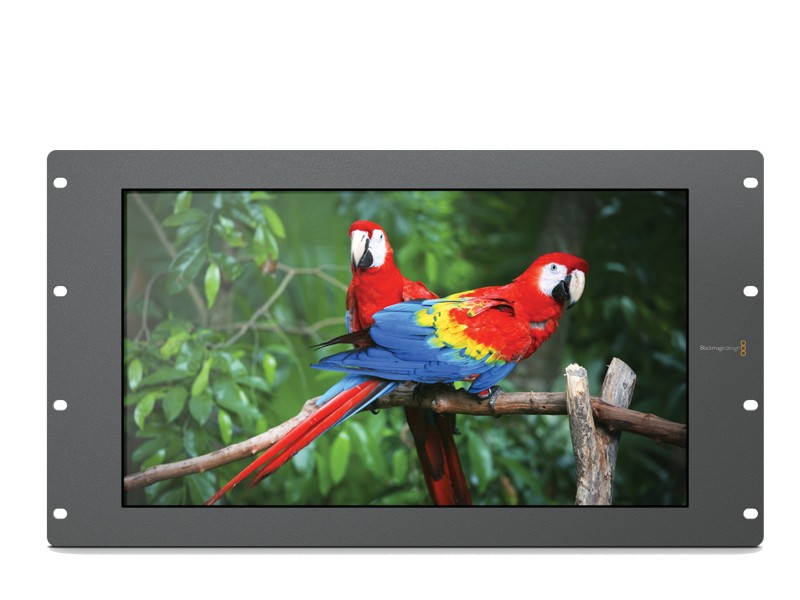

Blackmagic Design Smarview HD

SPECIFICATIONS

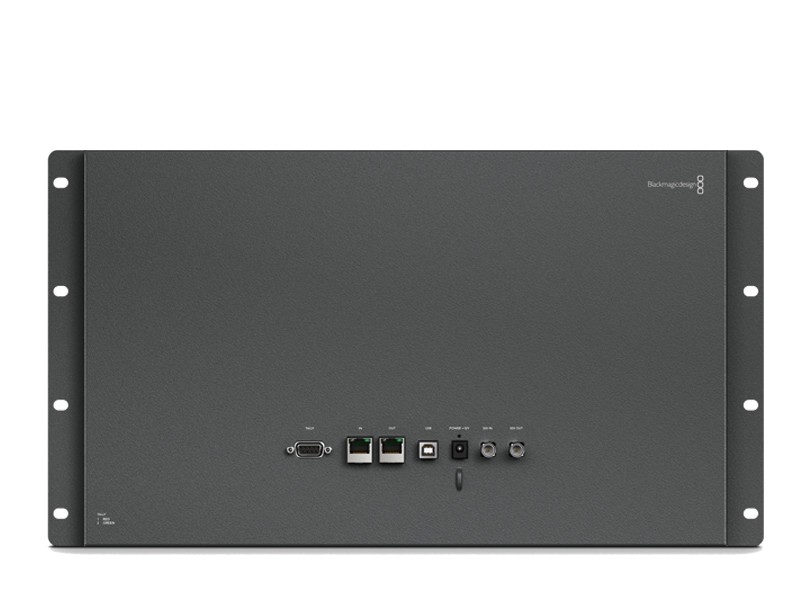

• Connections
  • SDI Video Input Switchable between SD, HD and 3 Gb/s SDI. Reclocked loop through output. Switchable
  • Multi Rate Support Auto detection of 2K, HD or standard definition inputs
  • Updates and Configuration Via USB 2.0 high speed (480 Mb/s)
  • Ethernet 10/100 BaseT with loop through.
  • Tally 9-pin D connector
• Standards
  • SDI Format Support
    • 525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25,2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24,2048x1556PsF/25
  • SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
  • SDI Color Space REC 601, REC 709
  • SDI Auto Switching Automatically selects between SD, HD and 3 Gb/s SDI
  • Video Sampling 4:2:2 and 4:4:4
  • Color Precision 6-bit
• Extras
  • Software Control Mac OS X and Windows
  • Settings Control Via USB or Ethernet
  • Rack Height 6 Rack Units
  • Displays 1
  • Display Size 17.3in diagonal
  • Display Element TFT Active Matrix LCD
  • Display Resolution 1920 x 1080 pixels
  • Response
  • Contrast Ratio Typically 650:1
  • Color Depth 262,144 Colors
  • Display Orientation Display can rotate upside down for optimum viewing angle
  • Firmware Upgrade Via included firmware updater software
  • Power Supply 12V universal power supply included with international socket adapters for all countries
  • Power Consumption
  • Operational Voltage Range 12V - 15V
  • Product Warranty 12 Months Limited Manufacturerft s Warranty
