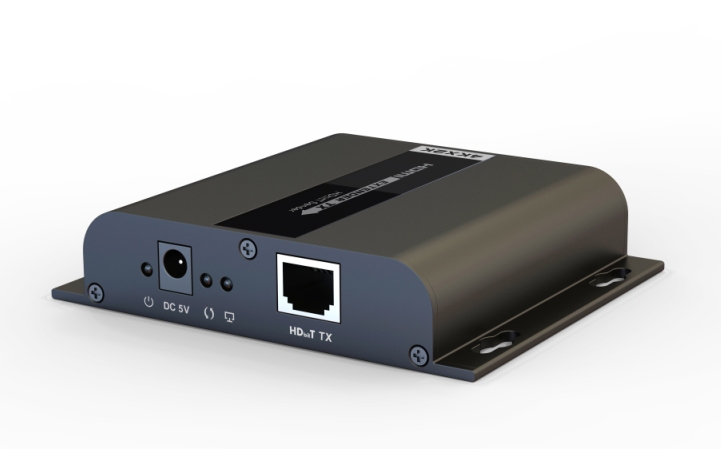

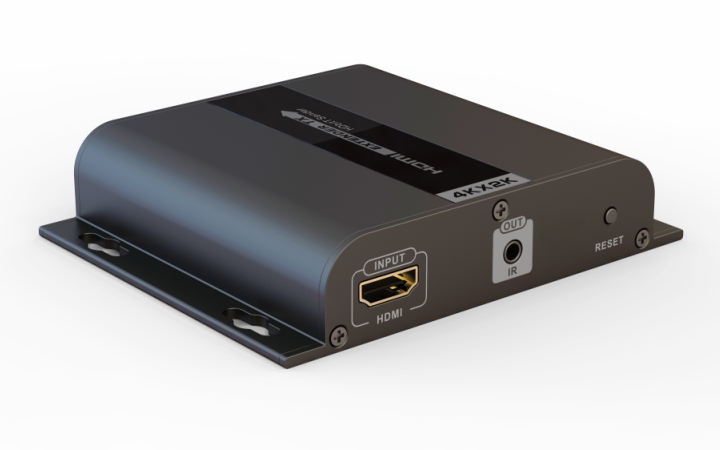

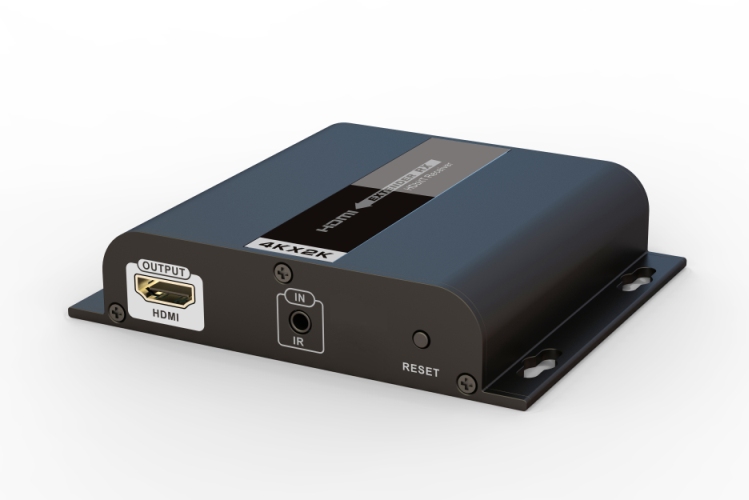

LKV683 4KX2K HDbitT HDMI over IP CAT6 Extender

HDMI extender applies HDbitT technology, to transmit HDMI signal over single CAT5/5e/6 cable to make the transmission distance up to 394feet (120 meters). The highest resolution supported is 4Kx2K(3840x2160@30Hz), and it will extend HDMI signal unlimitedly with cascade connection.

Features:

• Supports resolutions up to 4Kx2K@30Hz
• Transmits HDMI signal over single CAT5/5e/6 cable
• Extends up to 394 feet (120 meters) at 4Kx2K@30Hz
• Connects with routers to split and extend unlimitedly
• Compatible with existing network, not affect Internet Supports IR signals 20kHz to 60kHz
• Compatible with HDMI V1.4 and HDCP 1.4

Connection:

1.Point to Point connection: Up to 120m transmission distance over single CAT6

2.Router connection: By using network router/repeater, realize unlimited extension

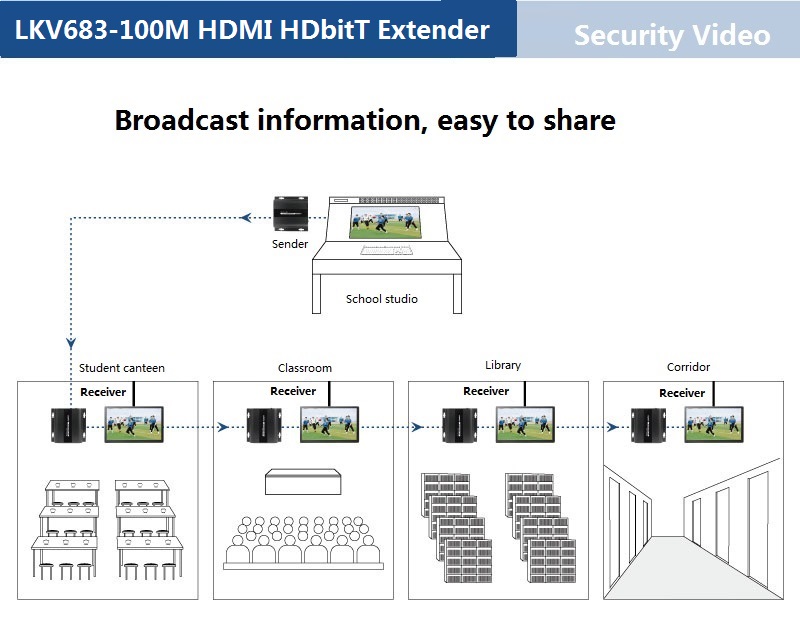

3.One to many connection: By using network router/switch, one sender to several receivers, realize extender and splitter function.
