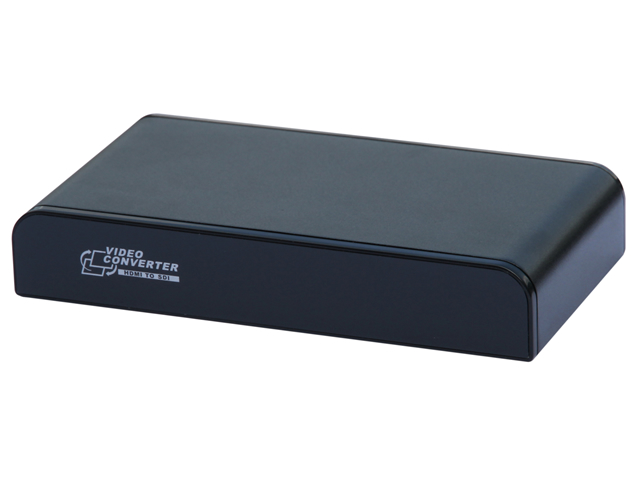

SKYTECH HDMI to SDI Converter

Features:

• HDMI to SDI conversion technology.
• Intelligent recognition technology.
• According EDID automatic identification resolution.Through the video convert to SDI directly. Full HD 1080p; bring you into a new frontier Extend
• HDMI signal to two SDI display.
• Through the HDMI input signal, convert to SDI HD signals.
• Support 3G-SDI 1080P 50Hz/60Hz,Comatible with SD-SDI,HD-SDI

Diagram :

Specifications:

• Material: Aluminum + ABS + Crystal plate
• HDMI Version: HGDMI1.3, HDMI1.2, HDMI1.1
• HDCP Version: HDCP1.2
• HDMI Signal Format: EIA/CEA-861D standard
• HDMI Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
• Ma*. Date Rate: 10.2Gbps
• TMDS Signal: 0.5 to 1.5Vp-p(TMDS)
• DDC Signal: 5Vp-p(TTL)
• The Length of HDMI Cable: <=5m(AWG26 HDMI1.3)
• Color Depth: 24-bits /Deep color, 30 bits/ Deep color, 36 bits/Deep color
• Working Voltage:DV5V
• Output Resolution:480、720、1080
• Package Size:220*280*86mm
• Package Weight:405g

Package included:

• 1 * Converter
• 1 * Power Charger
• 1 * User manual
