Mini AV to HDMI converter

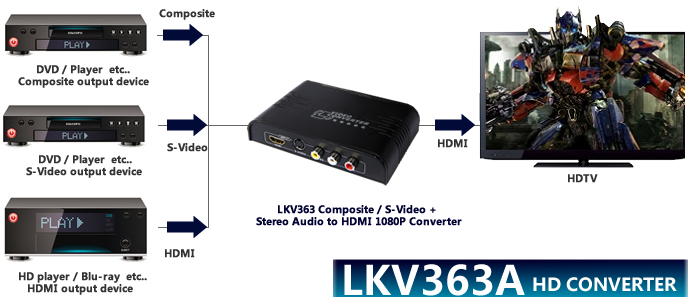

1. Convert analog audio and video signals into a single HDMI output for use with HD displays
2. Up-scales Composite Video or S-Video up to full HD 1080p;
3. HDMI output is optional at 720P 50Hz/60Hz (LED: red )or 1080P 50Hz/60Hz;(LED:Green)
4. Composite Video ,HDMI and S-video can stay simultaneous connection, and to be selected as the input source by the switch button
5. Composite Vide and S-Video Share the same audio input
6. Supports OSD (One Screen Display) OSD information display as below: S-video (Source) 1080P 50Hz/60Hz (Output Resolutions)
7. Supports HDMI input resolution:480p@60Hz,480i@60Hz,576i@50Hz 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz
   Supports HDMI graphic card resolution: 640x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x768@60Hz,
   1280x1024@60Hz,1360x768@60Hz,1366x768@60Hz,1400x1050@60Hz,1440x900@60Hz,
   1680x1050@60Hz,1920x1080@60Hz
8. Supports 50Hz to 60Hz frame rate conversion
9. Automatic NTSC/PAL video format detection
10. Settings of input signal and output resolution are auto-stored when powered on and off

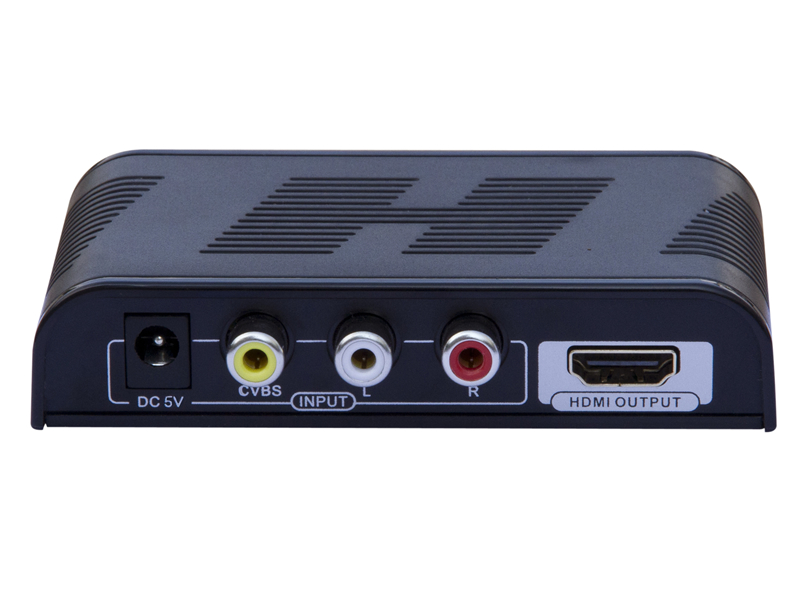

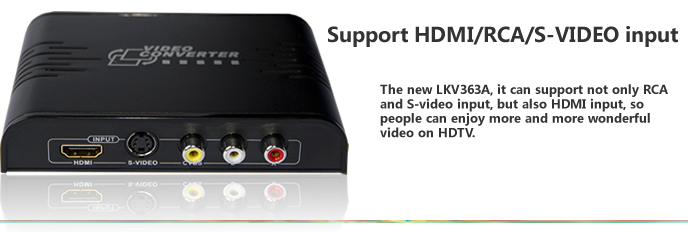

11. Input ports include: 1 x Composite Video; 1 x S-Video, 1 x Analog Audio 1 x HDMI
12. Output ports include: 1 x HDMI
13. Power Supply:1x 5V/2A

Specifications

• CVBS Input:
• Video signal: NTSC/PAL
• Peak value: 1.0Vp-p
• Impedance: 75Ω
• Connector: RCA connector
• Audio: L/R
• HDMI Output:
• HDMI Port: Standard HDMI
• HDMI resolution: 720P@ 50/60Hz, 1080P@ 50/60Hz
• HDMI bandwidth: 24bit~30bit
• HDMI Signal format: EIA/CEA-861D
• HDCP Version: HDCP1.2
• Power:
• Power In:  DC5V/1A
• Unit:
• Dimension: 105.5*64.5*23 mm
• Weight:


1 x Composite to HDMI converter

1 x Manual

1 x AC power adapter
