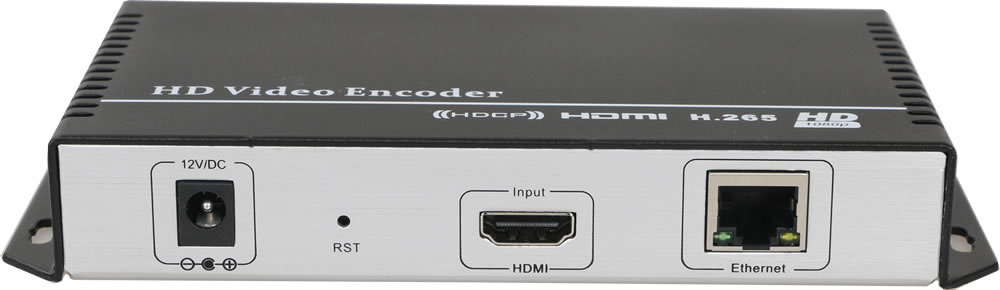

EN265 IPTV Streaming HD-HDMI Encoder H.265

HD-HDMI Encoder H.265

HDMI HD Encoder is a hardware device that independently used for high-definition video signal (720P / 1080P, etc.) encoding and network transmission, using the latest and high-efficient high-definition digital video compression technology H.265, with the characteristics of reliable, high-definition, low bit rate and low latency. Input the SDI high-definition video signal to conduct the encoding process, after compression processing of DSP chip, output the standard TS network stream, the launch of product fills the gap in this industry, which is a direct replacement for the traditional capture card or software coding method, using hard-coded, the system is more stable, and image quality is more perfect, which can be used in a wide variety of needs for high-definition video and high-resolution and high frame rate acquisition-based IP network transmission, its powerful scalability makes it more easily to respond to the needs of different industries and can be used as live video encoder. Industrial controlled, precision design, small size, easy installation, the power is less than 5W, which is more energy and more stable.

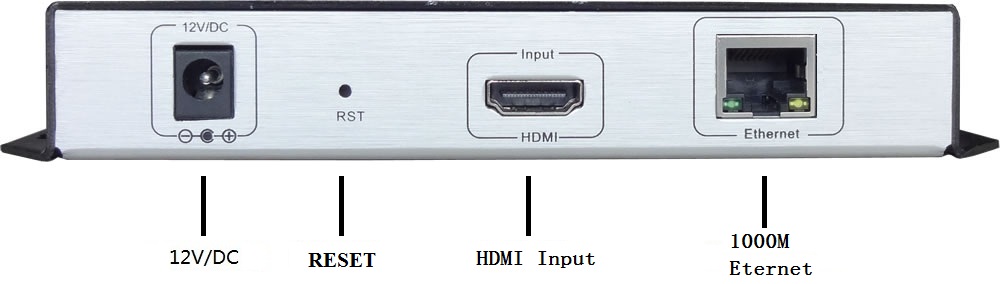

Diagram

็Hardware encoding

• support H.265 high- efficiency video coding
• H.264 BP / MP / HP
• H.265 Main Profile
• support AAC G.711 advanced audio quality encoding format
• CBR / VBR rate control, 16kbit / s ~ 12Mbit / s
• 1000M full duplex mode of network interface
• 1 channel HDMI input
• support up to 720P, 1080P @ 60HZ HD video input
• support image parameter settings
• support HDCP protocol, support for Blu-ray
• support HTTP, UTP, RTSP, RTMP, ONVIF protocol
• WEB interface operation, Chinese and English configuration optional
• WEB operation interface authority management
• support WAN remote management (WEB)
• supports dual stream output
• main stream and secondary stream can use different network protocols for transmission
• support streaming resolution for customized output settings
• support stream text insert function, XY axis and fonts can be set
• support stream watermarking insert function, XY axis can be set
• support for a key to restore the factory configuration
• low power supply design

Application：

• Internet TV HD Encoder
• Access to the DVR NVR
• Digital signage HD streaming server
• Video conference system video server
• Web conferencing system video capture
• High-definition video replacement capture card
• Hotel cable system
