 Quick Overview

Description

Blackmagic Design Smart VideoHub

Smart Videohub includes all the great features of Micro Videohub plus a built in control panel. Now you can change all routing with the push of a button! Smart Videohub includes 16 x 16 SDI, 3 Gb/s SDI, auto SD/HD/3 Gb/s SDI, re-clocking, ethernet, USB and serial router control interfaces. Great first router that’s incredibly easy to use. Plus you can expand it’s power with all the exciting Videohub control!

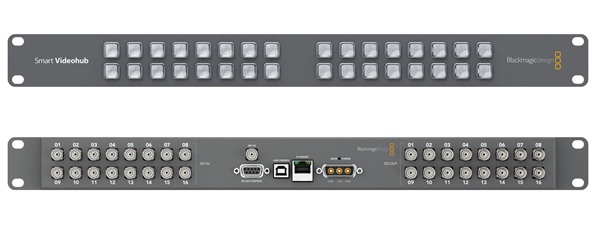

Smart Videohub is a professional 1 rack unit routing switcher with advanced features such as 3 Gb/s SDI, auto switching SD, HD and 3 Gb/s SDI, as well as full SDI re-clocking. Smart Videohub includes attractive crystal look buttons on the front, with 16 buttons for destinations and 16 buttons for sources. All the customer needs to do to change routing is press a destination and then select a source. Because the control panel is built into the front panel, Smart Videohub only needs power to work and no other setup is required.

Smart Videohub’s control buttons are designed for high reliability and the front panel can be removed to allow labeling of buttons. All buttons are illuminated by brilliant white LEDs and when used in dark rooms, all buttons can be backlit so button labels can be clearly seen.

Smart Videohub includes control interfaces for USB, direct ethernet and RS-422 serial. Ethernet control allows direct connection to the computer network and is fully compatible with Blackmagic Design‘s wide range of software control panels and the new Videohub Smart Control hardware control panel. This means customers can simply use the front panel control, but then as they expand, they can add software control to computers on their network, and Videohub Smart Control panels throughout their facility as well.

FEATURES

• 16 SDI inputs, supports SD, HD and 3 Gb/s SDI.
• 16 SDI outputs, supports SD, HD and 3 Gb/s SDI.
• USB connection for computer control.
• Ethernet direct network connection for control.
• Serial port for router control.
• 12 volt universal power supply included.
• Reference input compatible with black burst and tri-sync.
• Button caps can be removed for easy labeling.
• Buttons are illuminated with white LEDs for highest illumination quality.
• Includes full SDI re-clocking.
• Allows simultaneous SD, HD and 3 Gb/s SDI formats on the router at the same time.
• Includes free software control panels for Mac and Windows.
• Compact 1 rack unit size.
• Fully compatible with Videohub Smart Control.

SPECIFICATIONS

SD Format Support

• 625/25 PAL and 525/29.97 NTSC

HD Format Support

• 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60

2K Format Support

• 2048 x 1556/23.98/24/25

SDI Compliance

• SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601

SDI Video Sampling

• 4:2:2 and 4:4:4

SDI Video Rates

• SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI.

SDI Color Precision

• 4:2:2 and 4:4:4 10 bit

SDI Color Space

• YUV or RGB

SDI Metadata Support

• Video payload identification ancillary data as per SMPTE 352M.

SDI Audio Sampling

• Television standard sample rate of 48 kHz and 24 bit.

SDI Auto Switching

• Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard.

Updates

• USB 2.0 high speed (480Mb/s) interface.

Re-clocking

• On all SDI inputs, auto switching between standard definition, high definition or 3 Gb/s SDI video.

Reference Input

• Blackburst and TriSync for SD, HD and 2K.

RS-422 Router Control

• 1 x input for controlling router crosspoint switching.

Router Configuration

• Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network.

Software Control

• Router control included free for Windows™ and Mac OS X™.

Firmware Upgrade

• Via included firmware updater application.

Installation

• 1 rack unit size. Less than an inch deep.

Power Supply

• 1 x Universal power supply included. IEC power cable required.

Power Fail Protection

• Router connections preserved and restored instantly at power on independently of host computer.

Product Warranty

• 3 Year Limited Manufacturer's Warranty.
