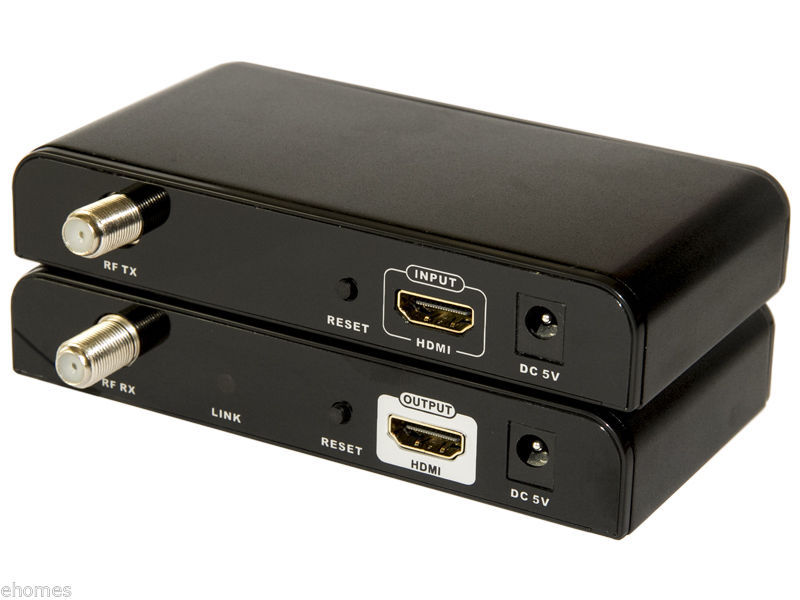

HDMI Extender RF Coaxial Transmitter Up to 700 M.

1. เป็นอุปกรณ์HDMI to RF Modulator

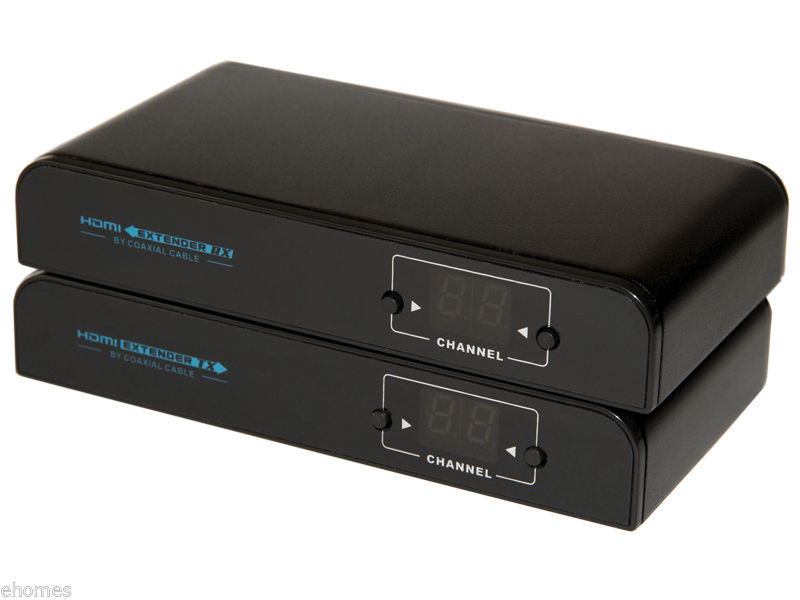

2. เลือกช่องความถี่ในหารรับ-ส่งได้ถึง 99 ช่อง เพื่อไม่ให้ช่องซ้ำหรือชนกัน

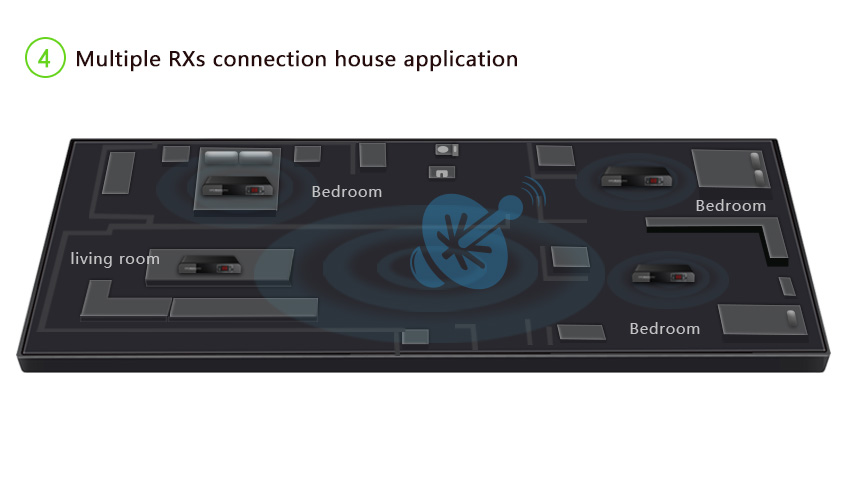

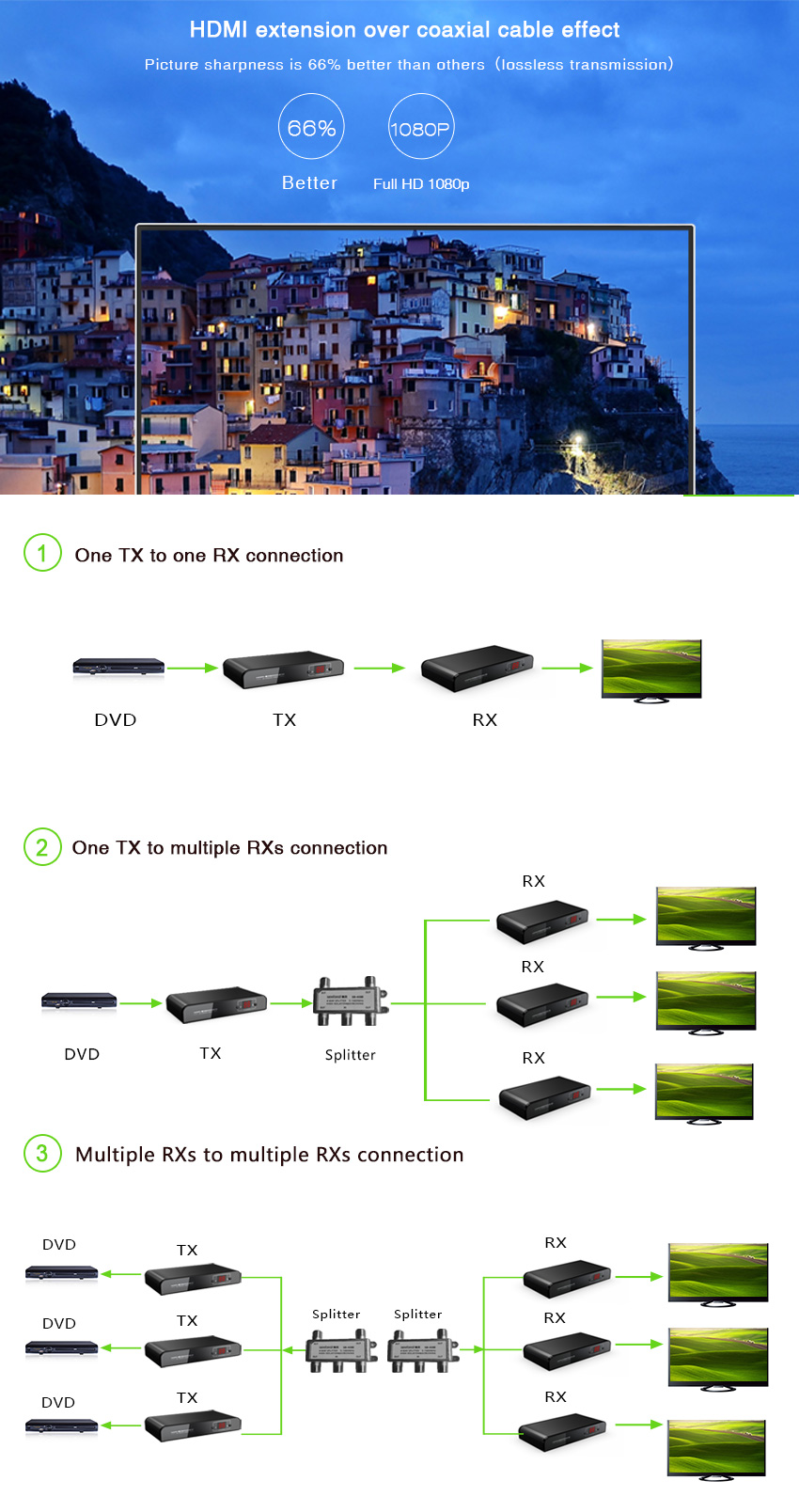

3. 1 ตัวส่ง สามารถใช้กับตัวรับได้หลายตัว

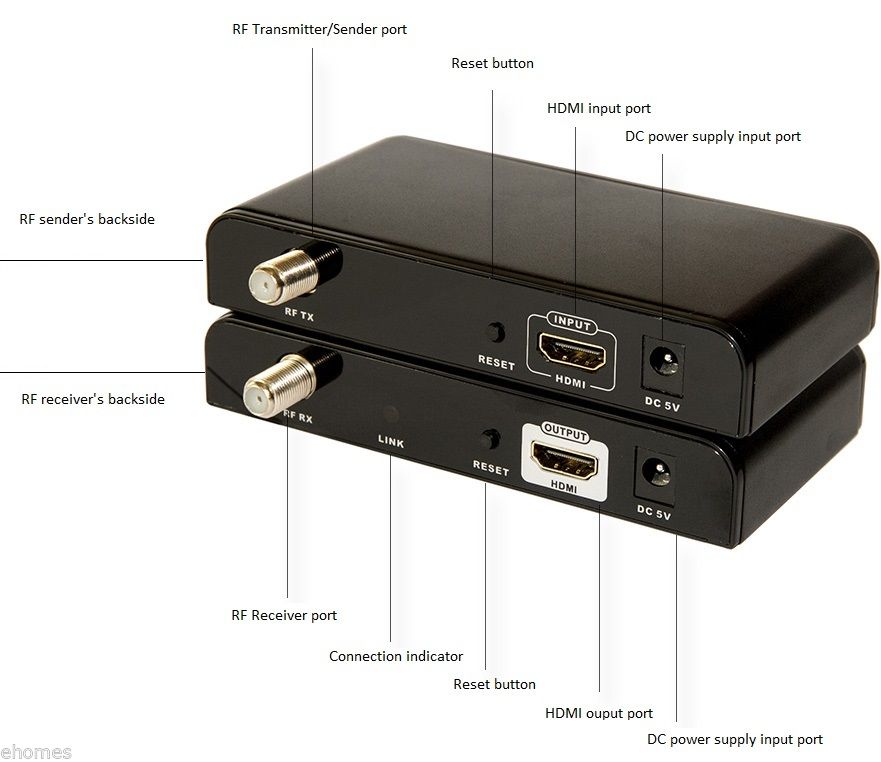

4. TX: input: 1x HDMI,output: 1x RF; RX: input:1x RF,output: 1x HDMI
5. RX: input:1x RF,output: 1x HDMI
6. Support HDMIinput/output:480i/480p@60Hz,576i/576p@50Hz,720p/1080i/1080p@50/60Hz.
7. Video encoding: H.264. Audio encoding: MPEG2.
8. Coaxial cable: RG6,RG7,RG11 etc.Frequency point:100-1000M
9. Frequency point:100-1000M
10. Effective bit rate: Max 31.6M bits,Transmission delay:500Ms

Specifications
• Power supply: 2 power DC 5V 1A (included)
• Resolution entrance supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
• Output resolution supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
• Graphic resolution HDMI supports up to 1920x1080 @ 60Hz
• Video Coding: H.264
• Audio encoding: MPEG2
• Coaxial cable: RG6, RG7, RG11, etc.
• Point Frequency: 100-1000M
• Transmission effective: max 31.6M bits
• Insertion loss: <2dBm
• Consumption of RF output TX: + 0dBm
• TX RF Sensitivity: different for each frequency
• RF Connector: 75Ω Type F
• Transmission delay: 500ms
• Consumption: Tx <3.5W; Rx <3W

Environmental Characteristics
• Operating temperature: 0-50 ° C
• Storage temperature: -10 - 70 ° C
• Operating Humidity: 10-80% non-condensing
• Storage Humidity: 10-90% non-condensing

Dimensions
• Width 130 mm
• Depth 68 mm
• Height 24 mm

Package Contents
• 1x Transmitter
• 1x Receiver
• 2x Power Supply DC 5V 1A
• 1x Instruction Manual
