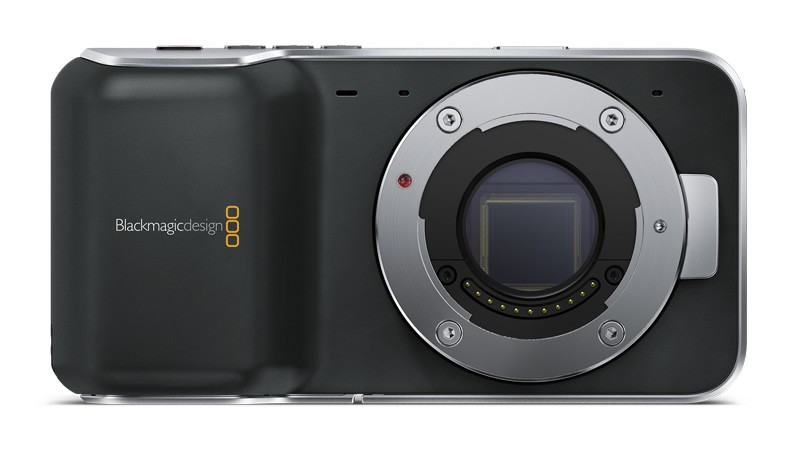

Blackmagic Design Pocket Cinema Camera

Quick Overview

  • Super 16mm Sensor
  • 13 Stops Dynamic Range
  • Compatible with Micro Four Thirds Lenses
  • Built in SD Card Recorder
  • ProRes 422 (HQ)
  • CinemaDNG 12 bit RAW
  • Integrated Stereo Microphone
  • Includes DaVinci Resolve Lite Software

Features

Small Size, Big Image

Stunning design that makes the Pocket Cinema Camera a professional solution

Blackmagic Pocket Cinema Camera is a revolution in digital film camera design! Due to their weight and size, large format digital film cameras are only suitable for use with tripods and other camera support equipment. Until now you’ve never been able to carry a digital film camera with you wherever you go! The Blackmagic Pocket Cinema Camera packs the features and technology of a digital film camera into a truly pocket size design, so you can now shoot film quality images in places and situations that were previously impossible!

Design



128
355
PortableMachinedFact1




Mft -mount

Micro Four Thirds Lens Mount

Quality and compatibility!

The Blackmagic Pocket Cinema Camera has a Super 16 size sensor, which is the perfect ratio and size for stunning 1920 x 1080 HD images. The active Micro Four Thirds mount provides electronic lens control, helps to keep the camera small in size and importantly lets you use the largest possible range of lenses. You can use native MFT lenses from Olympus, Panasonic, Leica and more, or use commonly available adapters for Canon EF™, Nikon F™, ARRI PL™ or 16mm cine mount lenses.


Screen

High Resolution Monitoring

Sharp high resolution screen makes precise focus easy

Incorporating a large 3.5” LCD is a key component of the camera’s overall design. This extremely high resolution display gives a live view of your images, plus lets you play back recorded files and displays the camera’s adjustable settings.

Using such a high quality display lets you set focus easily. Use focus peaking to get a graphical reference of the sharpest parts of your image, plus you can zoom in to 1:1 scale for incredibly accurate focusing.

 Connections

Professional Connections

Add mic, remote and monitor!

Connecting to the Blackmagic Pocket Cinema Camera is easy, as it uses standard commonly available cables and connectors. The video, audio and remote connections are conveniently located on the same side of the chassis. The micro HDMI output lets you connect to electronic viewfinders, monitors, external disk recorders and more. Stereo audio inputs and outputs use 3.5mm stereo jacks for connecting microphones and headphones. Plus you get a 2.5mm jack connection for LANC remote control and the DC power supply for mains operation and battery charging uses a standard 0.7mm plug.



Removable Battery

When you need to keep shooting, just replace the battery!

The Blackmagic Pocket Cinema Camera includes a removable and rechargeable lithium ion battery, which provides up to an hour of continuous recording time. The Nikon EN-EL20 battery type is commonly available, so you can purchase multiple batteries if you need to shoot for longer periods. The battery charge time is approximately 1 hour 15 minutes with the camera off. With a wide 12-20V power input range the camera can easily be powered and charged from larger professional camera batteries and other power sources.

Battery




Pocket Cinema Camera

Advanced hand held design

The Blackmagic Pocket Cinema Camera combines a range of advanced technologies to create a portable pocket size camera capable of shooting incredible digital film quality images! Each piece of technology used in the development and manufacture of the Blackmagic Pocket Cinema Camera has been chosen for its performance, reliability and innovation. What you get is a breakthrough in camera design that perfectly matches complementing technologies and lets you achieve things that were previously impossible!

Technology


Sd -cards

Built in SD Card Recording

Record standard ProRes and RAW files to SD cards

The Blackmagic Pocket Cinema Camera features a built in SD card recorder. With the amazingly fast read/write capabilities of SDXC and SDHC cards you can record digital film quality images to a memory card that’s smaller than a postage stamp! The camera creates 12-bit lossless compressed CinemaDNG and 10-bit ProRes 422 (HQ) files that are way beyond broadcast standards! When using ProRes you can record for more than 50 minutes on a 64GB SD card at 24 frames per second and swapping cards takes just seconds!



Lenses2

Use Professional MFT Lenses Select some of the world's best lens crafters

The shorter flange focal distance of the Micro Four Thirds camera system helps to keep the Blackmagic Pocket CInema Camera so small, but more importantly this technology also unlocks the use of a huge variety of lenses, especially when combined with the camera’s Super 16 sensor size.

In addition to using native MFT lenses it’s easy to adapt other lens mounts to MFT using third party adapters. The active MFT mount is powered so is capable of providing electronic control of focus and iris.


ConnectionsPopular Connections Get the connections you need for monitoring, remote control, power and more!

HDMI Output

For great on set monitoring!

You can connect the Blackmagic Pocket Cinema Camera to a huge range of equipment such as electronic viewfinders, monitors and disk recorders, using the camera’s built in HDMI output. The Micro HDMI output uses a small Type D connector and cables with Type D to full size Type A connectors are commonly available at low cost. The camera’s HDMI output includes an overlay setting with frame guides, f-stop, frame rate and more. The overlay can easily be disabled for a clean video output!

LANC Remote Control

Full control of your camera

The LANC control protocol allows the Blackmagic Pocket Cinema Camera to be controlled remotely by a wired controller. Connection to the camera is via a 2.5mm jack and the controller allows the camera’s record, stop, focus and iris settings to be remotely controlled. LANC remote controllers are typically fitted to tripods and often in situations where the camera is out of reach for direct operation.





Shoot Digital Film Anywhere!

Get the super compact Super 16 digital film camera that you can take anywhere!

The Blackmagic Pocket Cinema Camera lets you shoot digital film quality images in virtually any location and for any kind of production. The camera’s handheld design features a built in SD card recorder and removable battery, so you only need to add a lens and you’re ready to shoot. You can easily attach the camera to vehicle mounts and other camera supports, including professional camera rigs with follow focus and matte box accessories.

Remote -documentary

Remote Documentary



Pack and take anywhere

If you want to make a documentary in a remote location then one of the major challenges is taking heavy equipment with you. Blackmagic Pocket Cinema Camera's compact size means you’re agile enough to follow the story wherever it may

take you! The camera’s lightweight design fits into your pocket, backpack or bag, and because the camera records to small SD cards and uses a removable battery it’s easy to carry spares so you can keep shooting over long time periods!

Independent -film

Independent Film



Tell your story in digital film

Passionate independent film makers can now shoot digital film quality and get the beauty that comes from wide dynamic range and color correction, so their productions truly look like film and not video. The Blackmagic Pocket Cinema Camera’s MFT lens mount and Super 16 size sensor lets you swap

between different lenses for different shots and styles. You can even use incredible distinctive looking Super 16 cine lenses with commonly available adapters to fit the MFT mount. The camera can be used with professional rigs when follow focus, matte box and other accessories are required.

Photo -journalism

Photo journalism



Capture historical events

Bigger cameras can create barriers for journalists, whereas the Blackmagic Pocket Cinema Camera is perfect when you’re fighting you’re way through a crowd to find the perfect angle to shoot from, sometimes without being noticed! Use the camera

in Video mode to record in Rec709 color space that’s standard for HDTV, and because files use ProRes 422 (HQ) and are saved to SD card, you can move the card to a laptop and access your media within seconds!

Crash -cam

Crash Cam



Tough camera for tough work!

Crash cams are often used in feature film and television drama production, where cameras are used to film stunts and special effects. These cameras are often mounted in hazardous positions in order to film close up dramatic shots, however this

knowingly can cause the camera to be damaged. Blackmagic Pocket Cinema Camera’s affordable price, size and image quality make it perfect for use as a crash cam.

Small -space

Small space shooting



Mount in tight spaces

There are lots of shooting scenarios where you need to position a camera in a small space, whether that’s due to physical lack of space or a desire to keep the camera small and perhaps hidden completely. The Blackmagic Pocket Cinema Camera has a 12.5

ounce design with a smaller surface area than many new smartphones, as well as a 2.5mm jack connection for LANC remote control. This is great in situations where you are able to position a camera but not someone to operate it!

Personal -use

Personal Use



Capture your family in digital film

The Blackmagic Pocket Cinema Camera is a fantastic camera for personal use, especially when you want to achieve quality beyond the level of traditional video camcorders. Film a family wedding, a child’s first steps or a holiday travelogue. If you’re a keen photographer interested in cinematography

you may already own MFT lenses or have other lenses that can be adapted to the camera. Operating the camera is simple and within minutes of opening the box you’ll be filming your first projects!

Educational

Educational



Teach the true art of film!

Students learning the craft of filmmaking can now get to use a digital film camera rather than only learning the theory behind the art. Blackmagic Pocket Cinema Camera’s ProRes™ 422 (HQ) and lossless compressed CinemaDNG files can be used with DaVinci Resolve Lite, so you can learn how to apply different

color correction techniques to create different styles and looks. DaVinci Resolve Lite is free to download, so every student can have their own copy of the software in the classroom and at home!





Make your camera big!

Choose from a massive range of great camera accessories

The Blackmagic Pocket Cinema Camera has been designed to be accessorized! There are times when you only want to attach a lens, particularly when shooting in crowded or remote locations. If you’re using the camera in larger film production environments then you can use the camera’s top and bottom 1/4” thread mounting points and add virtually any professional accessory. The lightweight and compact design makes it easy to mount the camera in all kinds of situations and to position the camera in the tightest spaces!

Tripod


Compatible with a huge range of accessories!

Select lenses, mounts, mics, controls and more

Mft -lens

Active Micro Four Thirds

The active MFT lens mount lets you use native Micro Four Thirds lenses with electronic lens control. The shorter flange focal distance of the MFT camera system and Super 16 size sensor gives you a huge choice of lenses with an incredibly small camera!


Adapters

Lens Mount Adaptors

Mount the camera to tripods, camera stabilizing systems, vehicle mounts and more using the 1/4” thread mounts on the top and bottom of the chassis. You can even use camera rail systems with follow focus and a matte box.


Audio

Standard Audio Jack Input

With a 1/4” thread mount and 3.5mm stereo audio jack it’s easy to add an ambient or directional mic to the top of the Blackmagic Pocket Cinema Camera for professional audio capture that’s embedded into the ProRes file.


Lanc

Remote Control Recording

Blackmagic Pocket Cinema Camera has a 2.5mm LANC remote jack so that you can attach remote controllers to tripods and other camera supports. The LANC protocol triggers Record Start and Stop, plus electronic lens control of the iris and focus.


Mounts

3rd Party Mounts

Mount the camera to tripods, camera stabilizing systems, vehicle mounts and more using the 1/4” thread mounts on the top and bottom of the chassis. You can even use camera rail systems with follow focus and matte boxes.



<iframe frameborder="0" height="350" src="http://player.vimeo.com/video/62033292" width="425"></iframe>



Blackmagic Pocket Cinema Camera

Technical Specifications

Description



The world’s most compact Super 16 digital film camera features an elegant magnesium alloy chassis, 13 stops of dynamic range, Super 16 sensor size, high quality Apple ProRes 422 (HQ) and lossless compressed CinemaDNG RAW recording, as well as interchangeable optics with an active Micro Four Thirds lens mount, all packed into an incredibly tiny size. Includes power supply, removable/rechargeable battery and wrist strap.





Camera Features

Effective Sensor Size

12.48mm x 7.02mm

Effective Resolution

1920 x 1080

Shooting Resolutions

Lossless CinemaDNG RAW and Apple ProRes 422 (HQ) at 1920 x 1080

Frame Rates

23.98p, 24p, 25p, 29.97p, 30p

Dynamic Range

13 stops

Focus

Focus button turns on peaking.

Iris Control

Iris button automatically adjusts the lens iris settings so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Lens Mount

Active MFT

Screen Dimensions

3.5" and 800 x 480 resolution.

Screen Type

Integrated LCD.

Metadata Support

Automatic camera data and user data such as shot number, filenames and keywords.

Controls

4 way directional controller for navigating menus and entering metadata. Push buttons for recording and transport control.

Microphone

Integrated stereo microphone.

Speaker

Integrated mono speaker.

Mounting Options

1 x 1/4"-20 UNC thread mounting point on top of camera. 1 x 1/4"-20 UNC thread tripod mount.

Storage Features

Storage Type

Removable SDXC, SDHC cards.

Storage Format

SD card can be formatted in either exFAT or HFS+

Storage Rates

220 Mbps using Apple ProRes 422 (HQ)

Compressed Recording Formats

Apple ProRes 422 (HQ) in QuickTime MOV, lossless CinemaDNG RAW. Recording in 1920 x 1080 with choice of Film or Video Dynamic Range.

Connections

HDMI Video Output

1 x Micro HDMI Type D output.

Analog Audio Input

1 x 3.5mm stereo audio.

Analog Audio Output

1 x 3.5mm stereo jack headphone output.

HDMI Audio Output

2 channels 48 kHz and 24 bit.

Remote Control

1 x 2.5mm LANC for Rec Start/Stop, Iris Control and Focus.

Computer Interface

USB 2.0 mini B port for software updates and configuration.

Blackmagic -pocket -cinema -camera

Software

Software Included

DaVinci Resolve Lite grading software DVD for Mac OS X and Windows.

Supported Software Applications

Apple Final Cut Pro, Adobe After Effects, Nuke - The Foundry, Adobe Photoshop, DaVinci Resolve.

Operating Systems

Icn -mac

Mac OS X 10.8 Mountain Lion or later.

Icn -windows

Windows 7 or later.




Power Requirements

External Power

1 x 0.7mm DC Jack for power and battery charging.

Power

Removable, rechargeable Lithium Ion battery for EN-EL20, 12V-20V DC port for external power and battery recharging.

Battery Life

Approximately 1 hour of continuous recording time.

Battery Charge Time

Appoximately 1 hour 15 minutes when camera is off, and approximately 2 hours when in use.

Physical Specifications

Blackmagic -pocket -cinema -camera

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic Pocket Cinema Camera

Wrist strap

Turret Dust Cap

12V AC Adapter



Warranty

Product Warranty

12 Month Limited Manufacturer's Warranty.

Where to Find Details

Refer to product Installation and Operation Manual, available on line www.blackmagicdesign.com/support.
