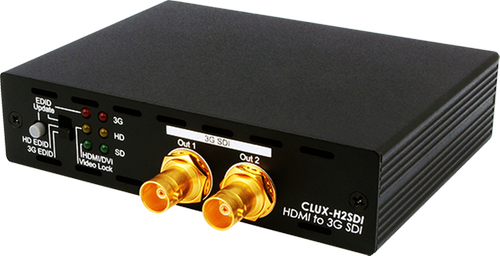

CLUX-H2SDI - HDMI to 3G SDI Dual Output Converter

The HDMI™ to 3G SDI converter from Cypress Technology allows HDMI signals to be shown on SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to 3G SDI for long distance transmission and display your work on two 3G SDI display.

The HDMI™ to 3G SDI converter from Cypress Technology also includes a 2CH L/R audio input which allows DVI signals with 2CH audio to be converted to SDI. Furthermore, this Cypress device has a built-in default EDID and a recordable EDID that guaranty image display compatibility with source equipment.

The HDMI™ to 3G SDI converter from Cypress Technology has a number of useful applications such as;

• HDMI signal display on SDI display(s)
• Extending HDMI signal over 100M away to two SDI display
• DVI signal with audio display on SDI display(s)
• Cascade HDMI signal over SDI cable

Features

• Supports HDMI timing: 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60
• Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
• Simultaneous display HDMI source on two SDI displays
• When a DVI signal goes through HDMI, the R/L audio can be sent with it to the 3G SDI output
• Integrated audio embedded up to 8 channel PCM 48kHz for HDMI or 2CH for DVI audio
• Auto video mode detection (3G/SD/HD)
• Connect with other units (SDI to HDMI) to extend your signal over long distances
• Choose between a selectable EDID and recordable EDID
• Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
