SDI Video Input

1 x SD/HD/3G/6G-SDI via DIN 1.0/2.3 connector

SDI Video Output

1 x SD/HD/3G-SDI via DIN 1.0/2.3 connector

HDMI Video Input

1 x HDMI type A connector

HDMI Video Output

1 x HDMI type A connector

SDI Audio Input

16 channels embedded in SD and HD in QuickTime files, 2 channels in Avid DNxHD MXF files

SDI Audio Output

16 channels embedded in SD and HD in QuickTime files, 2 channels in Avid DNxHD MXF files

HDMI Audio Input

2 channels embedded in SD and HD QuickTime files and Avid DNxHD MXF files.

HDMI Audio Output

2 channels embedded in SD and HD QuickTime files and Avid DNxHD MXF files.

Audio Output

1 x 3.5 mm stereo analog audio output jack.

SD Interface

1 x UHS-1 SD slot

Storage Type

Removable SDXC UHS-1 and SDHC UHS-1 cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.

Recorder Control

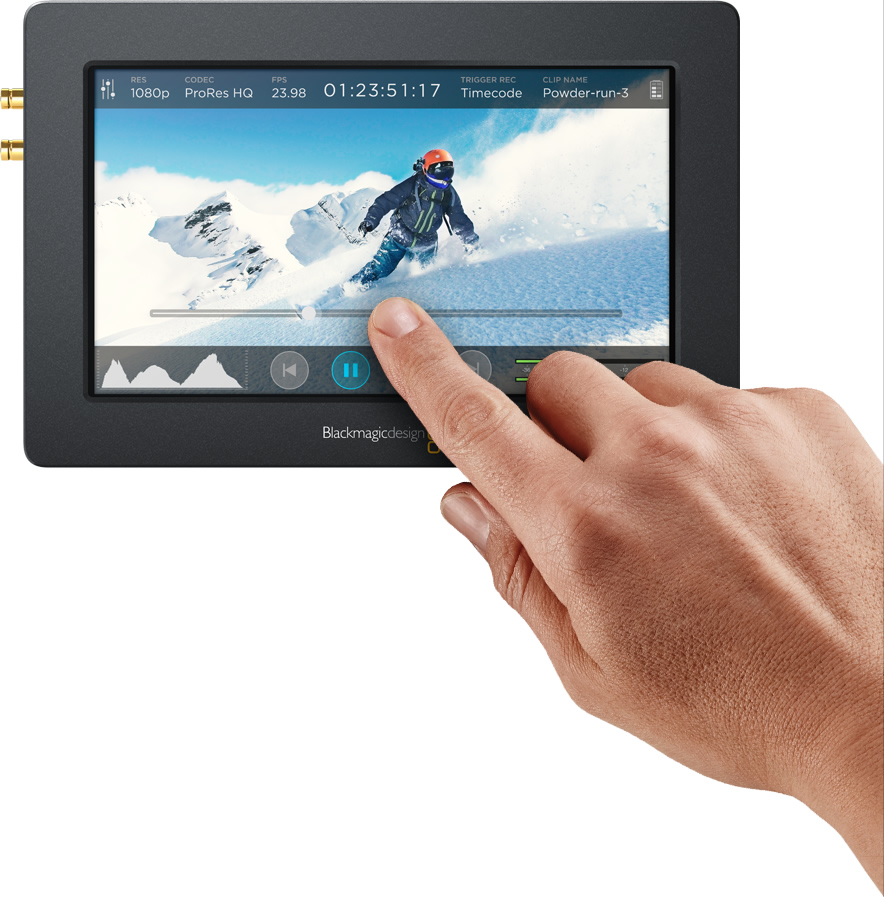

Integrated capacitive touch LCD screen with onscreen controls for settings and navigating menus.

Screen Dimensions

5" 1920 x 1080p60 capacitive touchscreen LCD.

Recorder Configuration

Via the device's USB port or the device's user interface.

Computer Interface

1 x Mini-B USB 2.0 connector for initial setup, software updates and HyperDeck Utility software control.

SD Format Support

625/50i PAL, 525/59.94i NTSC

HD Format Support

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M.

SDI Metadata Support

HD RP188 and closed captioning.

Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

REC 601, REC 709

Multiple Rate support

SDI and HDMI switches between 270 Mb/s SD , 1.5 Gb/s HD , and 3.0 Gb/s 60P HD.

SD Format Support

625/25 PAL, 525/29.97 NTSC, 480p60 and 576p50

HD Format Support

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

HDMI Color Precision

10-bit

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.

2 x rechargeable LP-E6 Lithium-Ion batteries.

+12V universal power supply included with international socket adapters for all countries.

Operating Temperature

5° to 40° C (41° to 104° F)

Storage Temperature

-21° to 45° C (-6° to 113° F)

Relative Humidity

0% to 90% non-condensing
