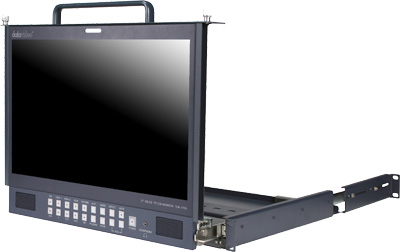

DATAVIDEO TLM-170HM MONITORS 17.3" HD/SD TFT LCD Monitor

Front Panel

• 17.3" (1600x900) LCD TFT Display
• Source Selection buttons
• Aspect ratio switch, Picture in Picture, Blue Only and Pattern buttons
• Audio Level and Mute buttons
• 3.5mm Headphone Jack
• Bi-Colour Tally indicator (Off, Yellow, Red
• Standby Power ON/OFF button

Rear Panel

• 12V DC Power adaptor input (2.1mm) with screw locking thread
• Main Power ON/OFF switch
• Adjustable viewing angle (model dependant)

Video Inputs

• HD-SDI /SD-SDI video BNC input with loop-through BNC output
• 2x Standard HDMI inputs (Ver. 1.1)
• 1x Component Y Pb Pr on BNC
• 1x S-Video (Y/C) 4pin mini din connector
• 2x Composite BNC inputs
• PAL & NTSC auto switching

Audio Inputs

• 4 x RCA sockets for analogue audio from Component, Y/C and Composite sources
• Supports SD/HD-SDI embedded audio
• Supports HDMI embedded audio (Ver.1.1)
• Speaker cable output connections (L-, L+, R-, R+) Max 5v p - p (2w)

Menu Features

• Monitor Underscan and Overscan mode selection
• Adjustment of Brightness, Contrast, Saturation, Hue and Sharpness
• Adjustable Colour Temperature setting (6500K, 7500K, 9300K and user defined)
• Adjustable PIP source and placement settings
• Internal and external speaker mute control
• On-Screen Audio Level indicator
• Selectable On-Screen overlay for center mark, 4:3, 16:9, Cinema Zone and Frame markers
• On-Screen Time Code available when monitoring SD-SDI or HD-SDI signals
• On-Screen Editable Monitor Title on Safe area
• LCD Backlight adjustment
