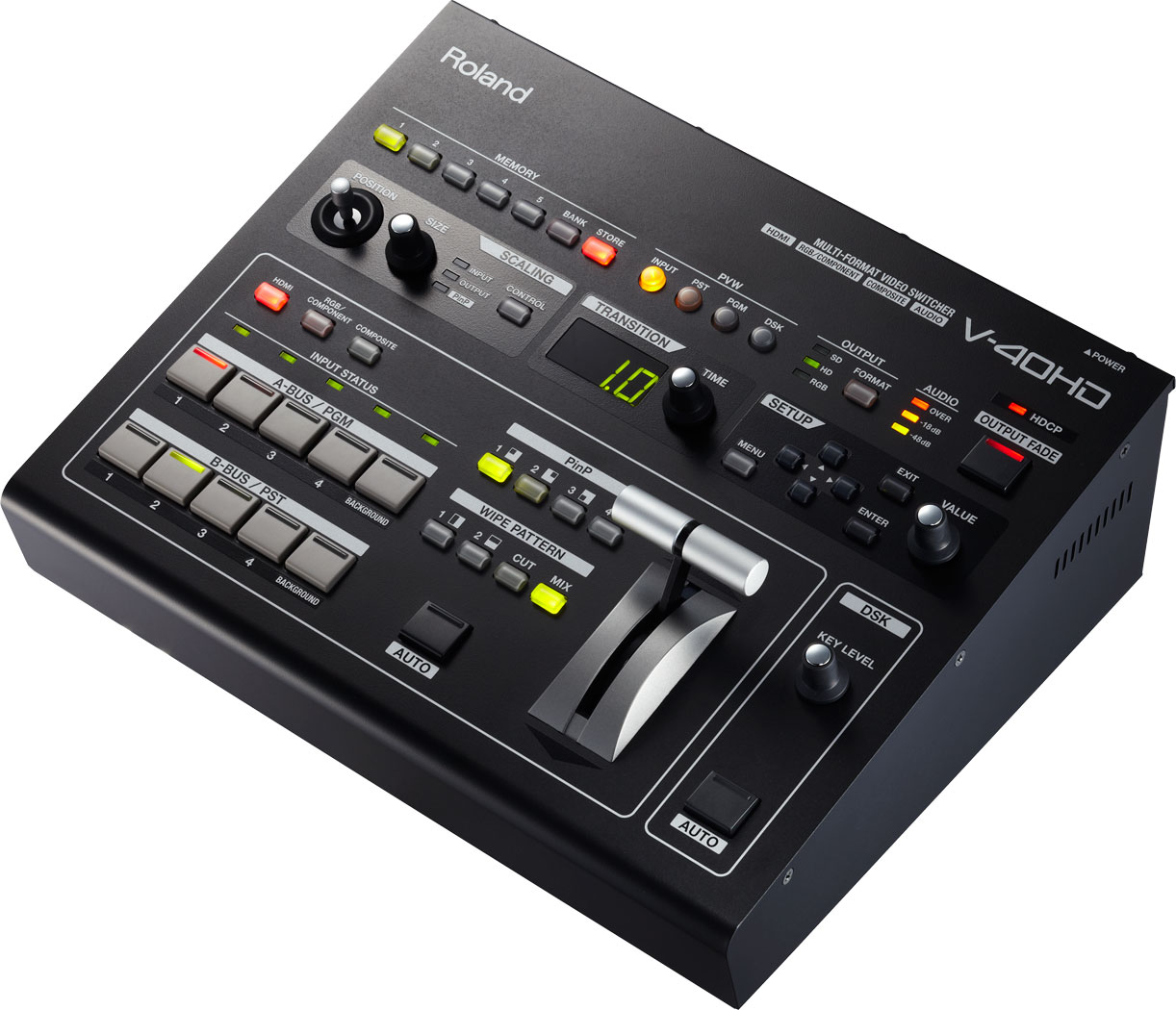

Roland V-40HD Multi-format Video Switcher

Roland V-40HD: Multi-format Video Switcher

Four Multi-Format Channels at the Pinnacle of HD Picture Quality.

Feature

• 4 Multi-Format Channels

• Up to 1080p/60/50 Input & Output Formats
• HDMI Multi-Viewer Output
• Compositing Engine
• Audio Input Bus
• Up to 25 Setting Configurations
• 4 Channels (12 Inputs - 4 x HDMI, RGB/Component, Composite),
• 3 Outputs (HDMI/RGB/Component/Composite+HDMI/RGB/Component + HDMI)
• 4:4:4/10-bit Internal Processing (*4:2:2/8-bit Output Processing)
• 1 M/E (PinP) + DSK
• Built-in frame synchronizers and scalers on all inputs
• Input status LEDs
• Full HDCP support
• Preview monitor output (Four-way split screen for Inputs, PST, PGM, or DSK)
• Audio embedding
• Audio delay to align the timing with video for perfect lip sync

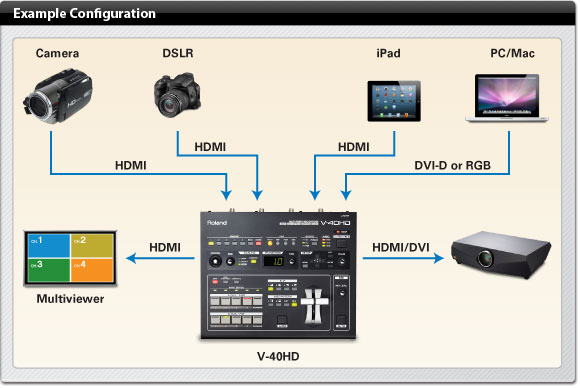

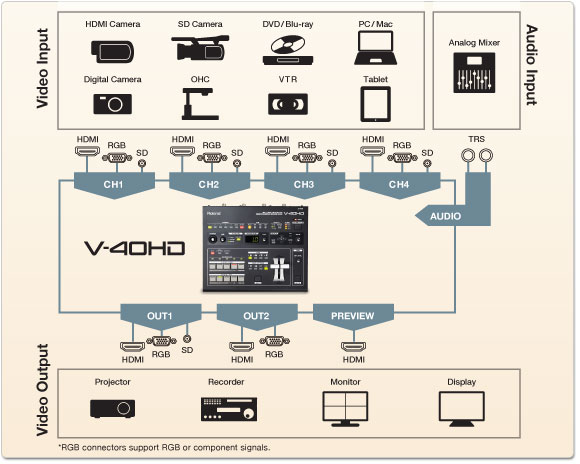

Diagram

Specifications

Video processing

Sampling rate

4:4:4 (Y/Pb/Pr), 10 bits
*Output signal processing is 4:2:2/8-bit.

Audio processing

24 bits/48 kHz, 2ch

Input formats

HDMI video

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz

* The video signal frame rate must match with the unit’s frame rate setting.

* Conforms to VESA DMT Version 1.0 Revision 11.

* 1920 x 1200/60Hz: Reduced blanking

HDMI audio

Linear PCM, 24 bits/48 kHz, 2ch

RGB/ Component

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz

* The video signal frame rate must match with the unit’s frame rate setting.

* Conforms to VESA DMT Version 1.0 Revision 11.

* 1920 x 1200/60Hz : Reduced blanking

Composite

NTSC, PAL

Output formats

HDMI video

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz

* The output refresh rates of 640 x 480--1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz.

* Conforms to VESA DMT Version 1.0 Revision 11.

* 1920 x 1200/60Hz: Reduced blanking

HDMI audio

Linear PCM, 24 bits/48 kHz, 2ch

RGB/ Component

480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94p, 1080/50p

640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz

* The output refresh rates of 640 x 480--1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz.

* Conforms to VESA DMT Version 1.0 Revision 11.

* 1920 x 1200/60Hz: Reduced blanking

Composite

NTSC, PAL

Preview (HDMI)

Video: 1920 x 1080/60 Hz (fixed)

*When INPUT is selected, the sources are displayed using a reduced frame rate. Audio: Linear PCM, 24 bits/48 kHz, 2ch

Input jacks

Video/Audio

HDMI: Type A (19 pins) x 4 ( INPUT 1--4)

RGB/Component: HD DB-15 type x 4 ( INPUT 1--4)

Composite: BNC type x 4 (INPUT 1--4)

Audio

1/4-inch TRS phone type ( balanced/unbalanced) x 1 pair ( AUDIO INPUT)

Output jacks

Video/Audio

HDMI: Type A (19 pins) x 2 (OUTPUT 1/2)

RGB/Component: HD DB-15 type x 2 (OUTPUT 1/2)

Composite: BNC type x 1 (OUTPUT 1)

Preview

HDMI: Type A (19 pins) x 1

Other jacks

Tally

HD DB-15 type x 1

(max input: 12 V/200 mA, Open collector type)

MIDI

5 pins DIN type x 2 ( IN, OUT/THRU)

RS-232C

9 pins D-sub type x 1

USB

A type x 1 ( host, for USB memories )

Signal level /Impedance

RGB/ Component

Signal level: 0.7Vp-p( H,V:5VTTL)

Impedance: 75 ohms

Composite

Signal level: 1.0 Vp-p ( luminance), 0.286 Vp-p (chroma(NTSC) ), 0.3 Vp-p (chroma(PAL))

Impedance: 75 ohms

Analog audio

Nominal input level: +4 dBu Maximum Input Level: +22 dBu

Impedance: 15 k ohms

Video effects

Transition

Mix, Cut, Wipe ( 9 patterns )

Composition

Picture in Picture

DSK (Luminance Key, Chroma Key)

Others

Output Fade

Audio effects

Delay

0.0-12.0 frames

Others

Display

7 segments, 3 characters LED

Power Supply

DC 12 V (AC Adaptor)

Current Draw

2.6A

Accessories

AC Adaptor (4 pins XLR type connector )

Power Cord

RCA-BNC conversion plug x 4

Owner's manual

Size and Weight

Width

317 mm
12-1/2 inches

Depth

266 mm
10-1/2 inches

Height

108 mm
4-5/16 inches

Weight

3.4 kg
7 lbs. 8 oz.

* 0dBu = 0.775 Vrms
