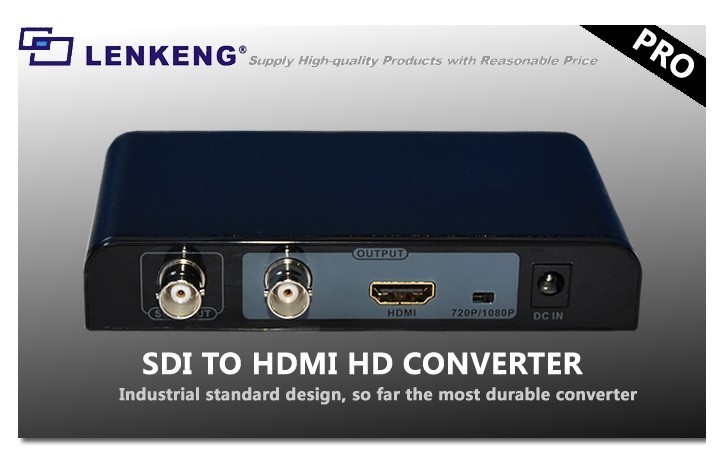

SDI to HDMI converter Pro

SDI to HDMI Converter

SDI to HDMI converter converts SDI signal to HDMI signal by Lenkeng new Color eye technology so that you can enjoy your favorite videos more vivid on HDMI displays.
And the conversion chipset with scaler technology can convert the SDI signal to standard HDMI signal and make it compatible with more devices.
In addition, this converter is with industrial standard, aluminum alloy product housing, one piece appearance to make it professional.

Features

• Extend HDMI signal to two SDI display
• Supports signal transmission distances up to 300M for SD-SDI, 200M for HD-SDI and 100M for 3G-SDI signals
• Full 1080P

Diagram

Specifications:

1.Format: Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
2.Data rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
3.Impedance: 75Ω
4.Supports signal transmission distances of up to 300M for SD-SDI signals, 200M for HD-SDI signals and 100M for 3G-SDI signals.
5.Resolution: 525i,625i;HD720P@24Hz,720P@25Hz, 720P@30Hz, 720P@50Hz, 720P@60Hz, 1080i@50Hz, 1080i@60Hz, 1080P@24Hz, 1080P@25Hz, 1080P@30Hz, 1080P@50Hz, 1080P@60Hz.
6.Recommended resolutions: 720P@50Hz;720P@60Hz.
7.HDMI output: 720P@50Hz, 720P@60Hz, 1080i@50Hz, 1080i@60Hz, 1080P@24Hz, 1080P@25Hz, 1080P@30Hz, 1080P@50Hz, 1080P@60Hz.
8.SDI output :100m Boost function  Pass through, operational even when using HDMI.
9.Dimensions: 105*59*23mm.

Package includes:
1 * Converter
1 * Power supplier(with US Plug)
1 * User manual
