Effective Sensor Resolution

2400 x 1350

Effective Sensor Size

15.81mm x 8.88mm

RAW Resolution

12-bit RAW files recorded at 2400 x 1350

Shooting Resolutions

2.5K RAW at 2400 x 1350. ProRes and DNxHD at 1920 x 1080

Frame Rates

HD 1080p23.98, 24, 25, 29.97, 30.

Dynamic Range

13 stops

Focus

Focus button turns on peaking.

Iris Control

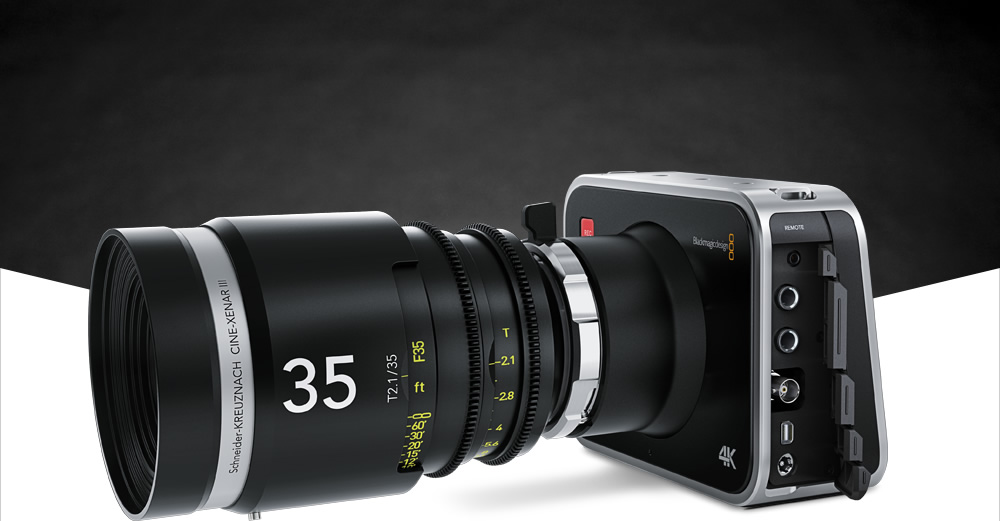

Compatible with manually operated PL mount lens.

Lens Mount

PL mount for manually operated lens with manual iris control.

Screen Dimensions

5" and 800 x 480 resolution

Screen Type

Integrated LCD capacitive touchscreen

Metadata Support

Automatic camera data and user data such as shot number, filenames and keywords

Controls

Onscreen touch menus and physical buttons for recording and transport control

Microphone

Integrated mono microphone

Speaker

Integrated mono speaker

Mounting Options

3 x 1/4"-20 UNC thread mounting points on top of camera.

1 x 1/4"-20 UNC thread tripod mount with locator pin.

Power

Integrated Lithium-ion Polymer rechargeable battery.

12V-30V DC port for external battery power or use included 12V AC adapter.

Battery Life

Approximately 90 minutes

Battery Charge Time

Approximately 2 hours when not in use.

Storage Type

Removable 2.5” SSD

Storage Format

Mac OS Extended or exFAT format. SSDs can be formatted on any Mac or Windows computer.

Storage Rates

5 MB/frame in RAW 2.5K fits about 30 minutes of 24p video on a 256 GB solid state disk. Compressed HD formats fit more than 5 times the amount of RAW video.

Recording Formats

Uncompressed 2.5K CinemaDNG RAW with film dynamic range at 2400x1350. Apple ProRes 422 (HQ), ProRes 422, ProRes 422 (LT), ProRes 422 (Proxy) and Avid DNxHD. All compressed recording in 1920x1080 10-bit YUV with choice of Film or Video Dynamic Range.

SDI Video Output

1 x 10-bit HD-SDI 4:2:2 with choice of Film or Video dynamic range. When recording is set to 25p or 29.97p with SDI Overlays switched off, the SDI output format is 1080i50 and 1080i59.94 respectively.

Analog Audio Input

2 x 1/4” jacks for professional balanced analog audio, switchable between mic and line levels.

Analog Audio Output

1 x 3.5mm stereo headphone output.

SDI Audio Output

2 channels in HD-SDI

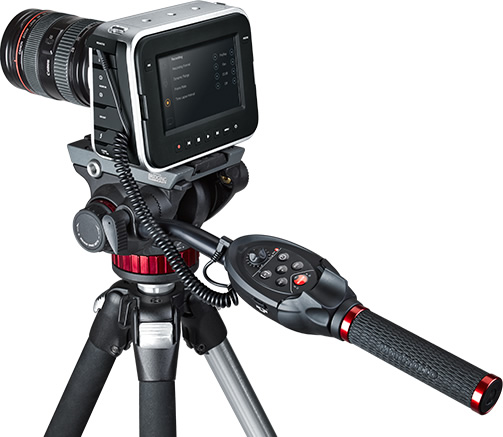

Remote Control

1 x 2.5mm LANC for Record Start and Stop.

Computer Interface

Thunderbolt port for waveform monitoring and capture of 1080 HD video

USB 2.0 Mini-B port for software updates and configuration.

External Power

12V-30V DC port for external battery power or use included 12V AC adapter.

SDI Compliance

SMPTE 292M.

SDI Audio Sampling

48 kHz and 24 bit.

Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.

Software Included

DaVinci Resolve grading software including Resolve USB dongle for Mac OS X and Windows.

Media Express software for video capture from the camera’s Thunderbolt port.

Blackmagic UltraScope software for waveform monitoring from the camera’s Thunderbolt port.

Accessories

Detachable sun shield, camera strap, turret dust cap and 12V AC adapter.

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing
