Total Video Input

8

Total Video Output

6

SDI Video Input

4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.

HDMI Video Input

4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.

Analog Audio Output

2 x XLR

SDI Audio Output

2 Ch embedded into SDI output.

Audio Input

2 x XLR. 2 x RCA.

Sync Input

Tri-Sync or Blackburst

Internal Frame Synchronizers

8. All inputs.

SDI Program Output

1 x 10-bit SD/HD/Ultra HD 4K switchable.

HDMI Program Output

1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.

Down Converted SDI Program Output

1 x 10-bit HD (Ultra HD 4K to HD)

SDI Aux. Output

1

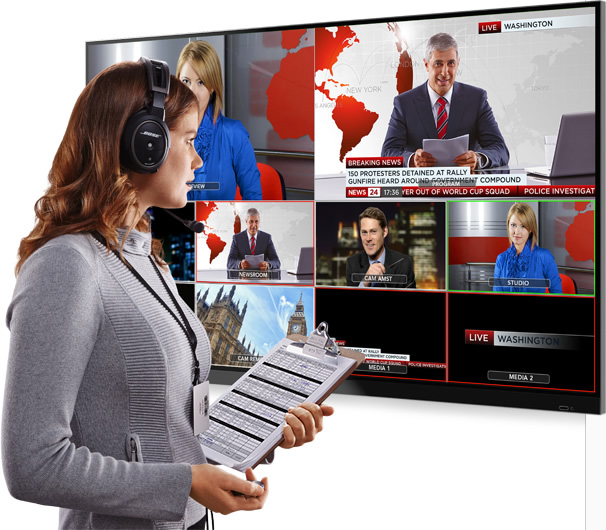

Quantity of Multi Views

1

Outputs per Multi View

1 x HD-SDI and 1 x HDMI

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.

SD Format Support

625/25 PAL 4:3 and 16:9, 525/29.97 NTSC 4:3 and 16:9

HD Format Support

720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080i50, 1080p50, 1080i59.94, 1080p59.94.

Ultra HD 4K

3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97.

SDI Compliance

SMPTE 259M, 292M.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709

HDMI Input Resolutions for Computers

720 x 480i 59.97Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz and 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz.

Colorspace Conversion

Hardware based real time.

Processing Delay

1 Line

Audio Mixer

10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring.

4K to HD Down Conversion

Yes, program x 1

Control Panel Included

ATEM Software Control Panel included free.

Tally Output

Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)

Software Updates

Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Mac OS X 10.8 Mountain Lion and
Mac OS X 10.9 Mavericks or later.

Total Number of Layers

4

Upstream Keyers

1

Downstream Keyers

2

Linear/Luma Keyers

3

Chroma Keyers

1

Pattern Generators

2

Color Generators

2

Display interface

Minimum monitor resolution of
1366 x 768.

Media Players

2

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

20 with fill and key.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Number of Windows

1 x 10

Routable Windows

8

Tally

Red for program and green for preview indication.

Windows Source Labels

Yes

Control Panel Compatibility

Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.

Input Voltage

110-240 V AC

Power Usage

60W

Operating Temperature

0-40 degrees celsius

Storage Temperature

-20 - 60 degrees celsius

Relative Humidity

Up to 95%
