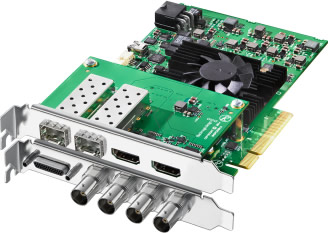

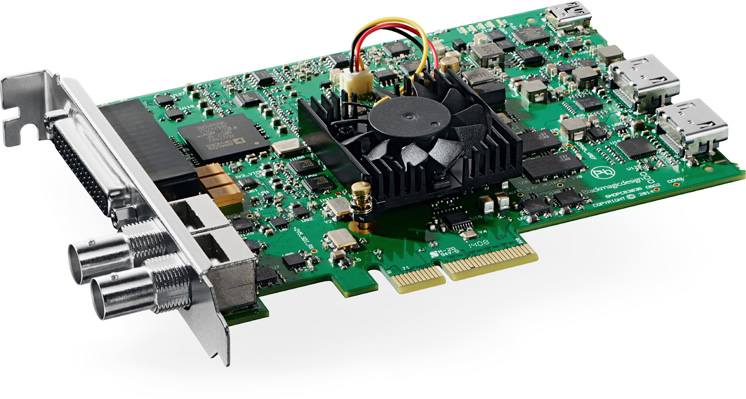

DeckLink 4K Extreme 12G Capture & Playback Card
| รหัสสินค้า | SKU-00365 |
| หมวดหมู่ | BLACKMAGIC DESIGN |
| ราคา | 39,000.00 บาท |
| สถานะสินค้า | Pre-Order |
| ลงสินค้า | 12 ก.ย. 2557 |
| อัพเดทล่าสุด | 24 พ.ค. 2565 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | ชิ้น |
หยิบลงตะกร้า
Tags : DeckLink 4K Extreme 12G, DeckLink 4K Extreme 12G ราคา, DeckLink 4K Extreme 12G จำหน่าย, DeckLink 4K Extreme 12G review
รายละเอียดสินค้า
DeckLink 4K Extreme 12G Capture & Playback CardThe ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs via 12G-SDI! You get dual link multi rate 12G-SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 60p! Capture 10-bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!
QuickOverview
DeckLink
The world's highest performance capture cards
for Mac, Windows and Linux
DeckLink capture and playback cards are used every day in the production of television commercials, music videos, episodic television programs and Hollywood feature films. With cutting edge technologies built in, you get the highest quality video and maximum reliability. No other capture cards support more applications and more platforms than DeckLink, so you can always work with your favorite software. Every DeckLink PCIe card can be installed in Mac, Windows and Linux based workstations and media servers to give you ultimate flexibility!
Highest Quality Connections
Every DeckLink card features the highest quality connections so you get pristine video and audio quality and can connect to the widest range of professional SDI equipment. DeckLink 4K Extreme 12G includes Dual Link 12G-SDI, HDMI 4K, analog video, as well as 2 channels of AES/EBU audio and 2 channels of balanced analog audio in and out. DeckLink Studio 4K includes 6G-SDI, HDMI 1.4b, analog component, S-Video, composite video, 2 channels of AES/EBU audio and 4 channels of balanced analog audio in and out. You also get a down converted SD output. Decklink SDI 4K is perfect for high quality 10 bit SDI use only. All models include black burst/tri-sync reference and serial deck control. All DeckLink 4K models switch between SD and HD and Ultra HD, while the advanced DeckLink 4K Extreme 12G supports DCI 4K and other high frame rate feature film formats!
Advanced Technology
Get the latest 6G-SDI and 12G-SDI technology so you can capture and playback in full resolution Ultra HD video, while remaining fully compatible with all SD and HD-SDI equipment! That’s 4 times the resolution of regular 1080 HD video at a massive 3840 x 2160 image size! DeckLink SDI 4K and the DeckLink Studio 4K include 6G-SDI, while the advanced DeckLink 4K Extreme 12G includes Dual Link 12G-SDI connections for higher color resolution, dual stream 3D stereoscopic support and frame rates up to Ultra HD 60p! DeckLink 4K Extreme 12G is the perfect choice for DaVinci Resolve editing and color correction!
DeckLink 4K Extreme 12G
Technical Specifications
Description
The ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs via 12G-SDI! You get dual link multi rate 12G-SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 60p! Capture 10-bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!
Connections
SDI Video Input
2 x 12Gb/s SD/HD/2K/4K. Supports single link and dual link 4:2:2/4:4:4:4 and 2D/3D switchable.
SDI Video Output
2 x 12Gb/s SD/HD/2K/4K. Supports single link and dual link 4:2:2/4:4:4:4 and 2D/3D switchable.
Analog Video Input
1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.
Analog Video Output
1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.
Analog Audio Input
2 Channels of professional balanced analog audio via XLR connectors.
Analog Audio Output
2 Channels of professional balanced analog audio via XLR connectors.
AES/EBU Audio Input
2 Channels unbalanced with sample rate converter.
AES/EBU Audio Output
2 Channels unbalanced.
SDI Audio Input
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
SDI Audio Output
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
HDMI Video Input
HDMI type A connector with support for Ultra HD 4K 60p in 4:2:0.
HDMI Video Output
HDMI type A connector with support for Ultra HD 4K 60p in 4:2:0.
HDMI Audio Input
8 Channels embedded in SD, HD and Ultra HD 4K.
HDMI Audio Output
8 Channels embedded in SD, HD and Ultra HD 4K.
Sync Input
Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.
Device Control
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface
PCI Express 8 lane Gen 2, compatible with 8 and 16 lane PCIe with HDMI mezzanine card.
Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4, Uncompressed 12-bit 4:4:4.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Software Applications
Apple Final Cut Pro X
Adobe® Premiere Pro® CC
Avid Media Composer
After Effects® CC
Nuke - The Foundry
DaVinci Resolve
Avid Pro Tools
Steinberg Cubase
Autodesk Smoke
Photoshop® CCOther supported applications include: Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
Video Standards
SD Format Support
625/50i PAL, 525/59.94i NTSC
HD Format Support
720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, 1080p60.
2K Format Support
2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25, 2048 x 1080p47.95, 2048 x 1080p48, 2048 x 1080p50, 2048 x 1080p59.94, 2048 x 1080p60
4K Format Support
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 3840x2160p50, 3840x2160p59.94, 3840x2160p60.
4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096 x 2160p30, 4096x2160p50, 4096x2160p59.94, 4096x2160p60
SDI Compliance
SMPTE 435, SMPTE 259M, SMPTE 292M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit.
SDI Video Sampling
4:2:2, 4:4:4 and 4:4:4:4
SDI Color Precision
8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4 in HD, 2K and 4K.
Color Space
REC 601, REC 709
HDMI Configuration
HDMI 1.4b supports Deep Color and automatically configures to connected display.
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Colorspace Conversion
Hardware based real time on output.
3D Processing
Dual stream and frame packed capture & playback.
HD Down Conversion
Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD downconverted signal on SDI B and SD on Composite and S-Video. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion
Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog.
HD Cross Conversion
Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.
Real Time Effects
Apple Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve.
Operating Systems
Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later.
Windows 7 64-bit or Windows 8 64-bit.
Linux
Environmental Specifications
Operating Temperature: 5° to 40° C (32° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
Physical Specifications
What's Included
DeckLink 4K Extreme 12G card
HDMI mezzanine card
SD card
Breakout cable for analog and RS-422 control.
Warranty
3 Year Limited Manufacturer's Warranty.
