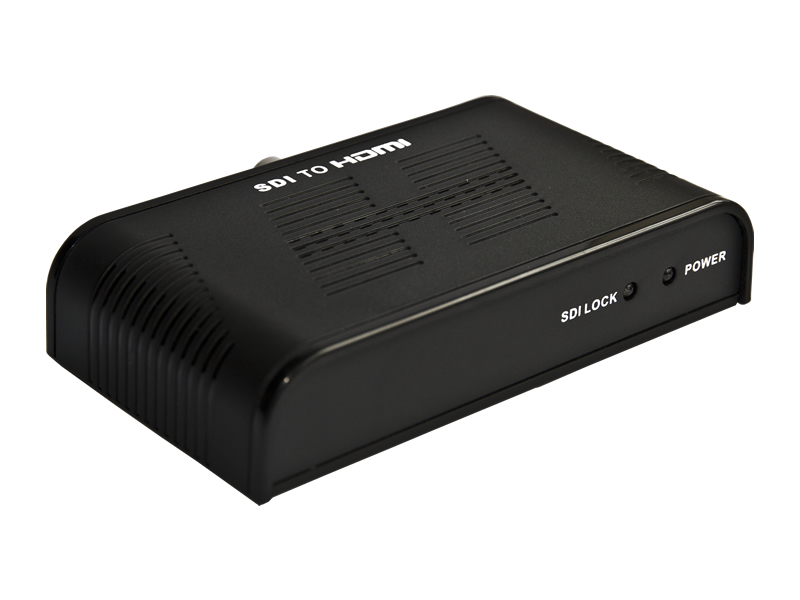

HD-SDI to HDMI Converter

SDI to HDMI Converter

This SDI to HDMI Converter converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection.

QuickOverview

• Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
• Full HDMI supported with embedded audio;
• Synchronized output audio video and audio;
• Plug and play.

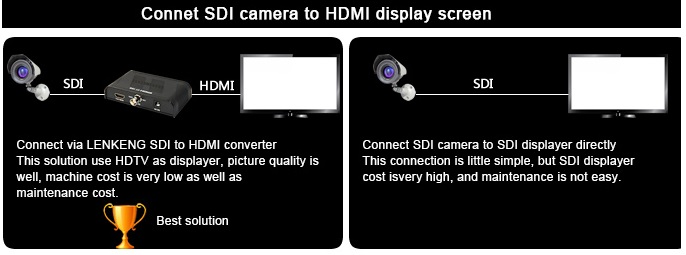

Diagram

Specifications

• Supported Video Formats: HD-SDI, SD-SDI, 3G-SDI
• Receive Distance: SD-SDI: 460, HD-SDI: 230 meters
• Supported Video Resolutions:BNC Input / HDMI Output
  • SD 525i 625i
  • HD 720P@24,HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ
  • HD 1080i@50HZ, 1080i@60HZ,
  • HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ
• Audio 48KHZ digital audio
• Date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
• Impedance: 75Ω
• Supply Power: DC 5V / 1 Amp / 400mAh working current
• Product Dimensions: 105mm x 59mm x 23mm
