Specifications
Video processing Sampling 4:4:4(24bit)
Audio processing Sampling 48kHz, 16bit
Input format HDMI Video
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640×480/60Hz, 800×600/60Hz, 1024×768/60Hz, 1280×768/60Hz, 1280×1024/60Hz, 1366×768/60Hz, 1400×1050/60Hz, 1600×1200/60Hz, 1920×1200/60Hz
HDMI Audio
linear PCM, 32kHz, 44.1kHz, 48kHz, 16bit, 2ch
Output Format HDMI Video
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640×480/60Hz, 800×600/60Hz, 1024×768/60Hz, 1280×768/60Hz, 1280×1024/60Hz, 1366×768/60Hz, 1400×1050/60Hz, 1600×1200/60Hz, 1920×1200/60Hz
HDMI Audio
linear PCM, 48kHz, 16bit, 2ch
SD card record
H.264 High Profile ( max.1080/30p 15Mbps ), AAC-LC ( max.256kbps )
Live Streaming
H.264 High, Main, Baseline Profile ( max.720/30p 10Mbps ), AAC-LC ( max.256kbps )
Input terminal
Video HDMI Type-A x 4( INPUT 1~4 )
Audio RCA type 1 pair ( R/L ), impedance:47kΩ
Output terminal
Output
HDMI Type-A x 1
Preview HDMI Type-A x 1
Other terminal
SD card
Full size゙ x 1( for recording & play its contents )
Video effect
Transition
CUT / MIX / DIP/ WIPE 15pattern x 2( mirror )
Mixer/Keyer
PinP( Picture in Picture )/ Chromakey
Others
Output fade ( FTC )
Audio effect
Delay
0.0~0.1 sec
Others
Power
AC adapter (DC 12V)
Power Consumption
52W
Accessories
AC adapter, manual, Warranty card
Size / Weight
270 x 155 x 41mm / 1.1kg

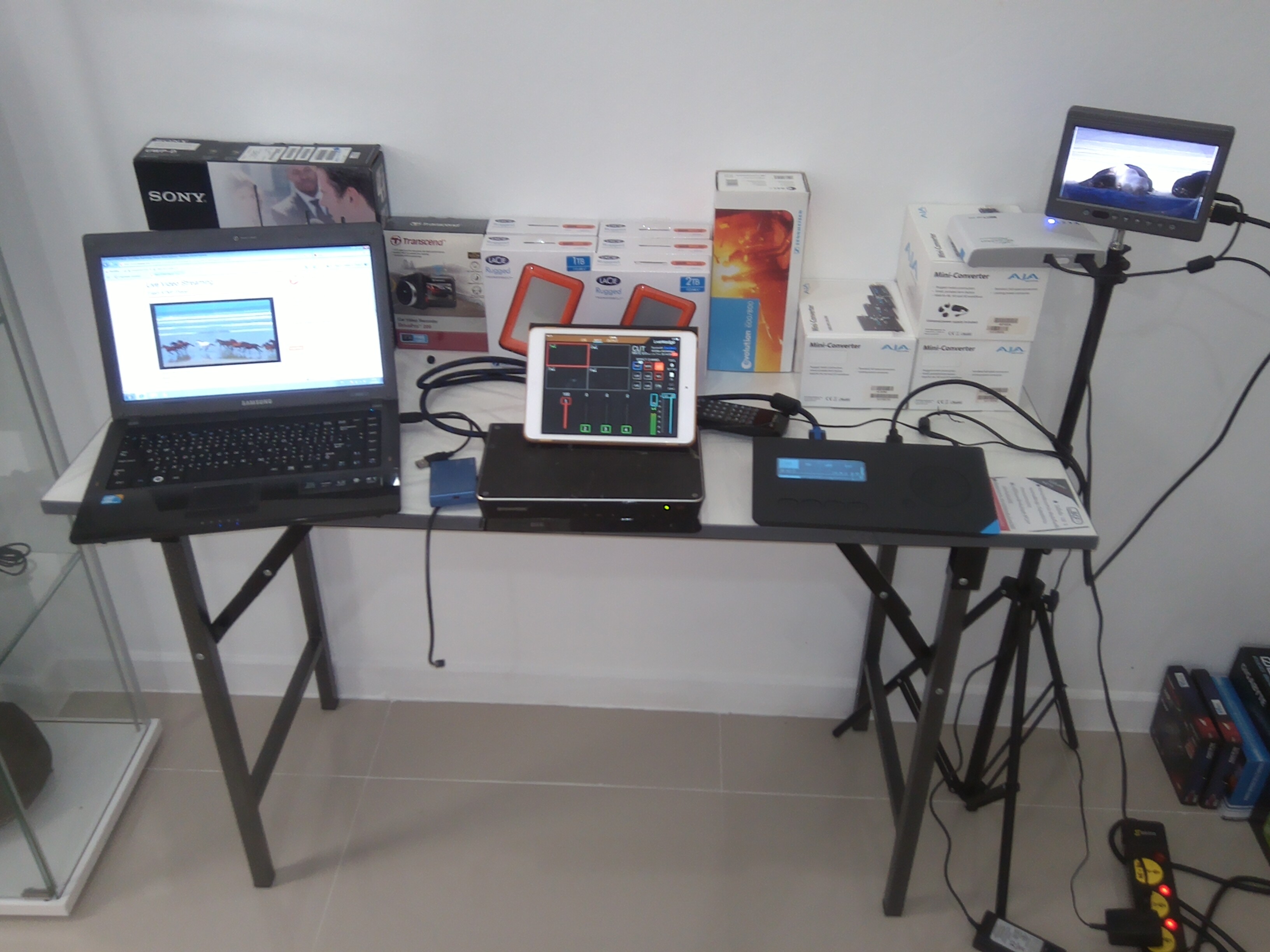

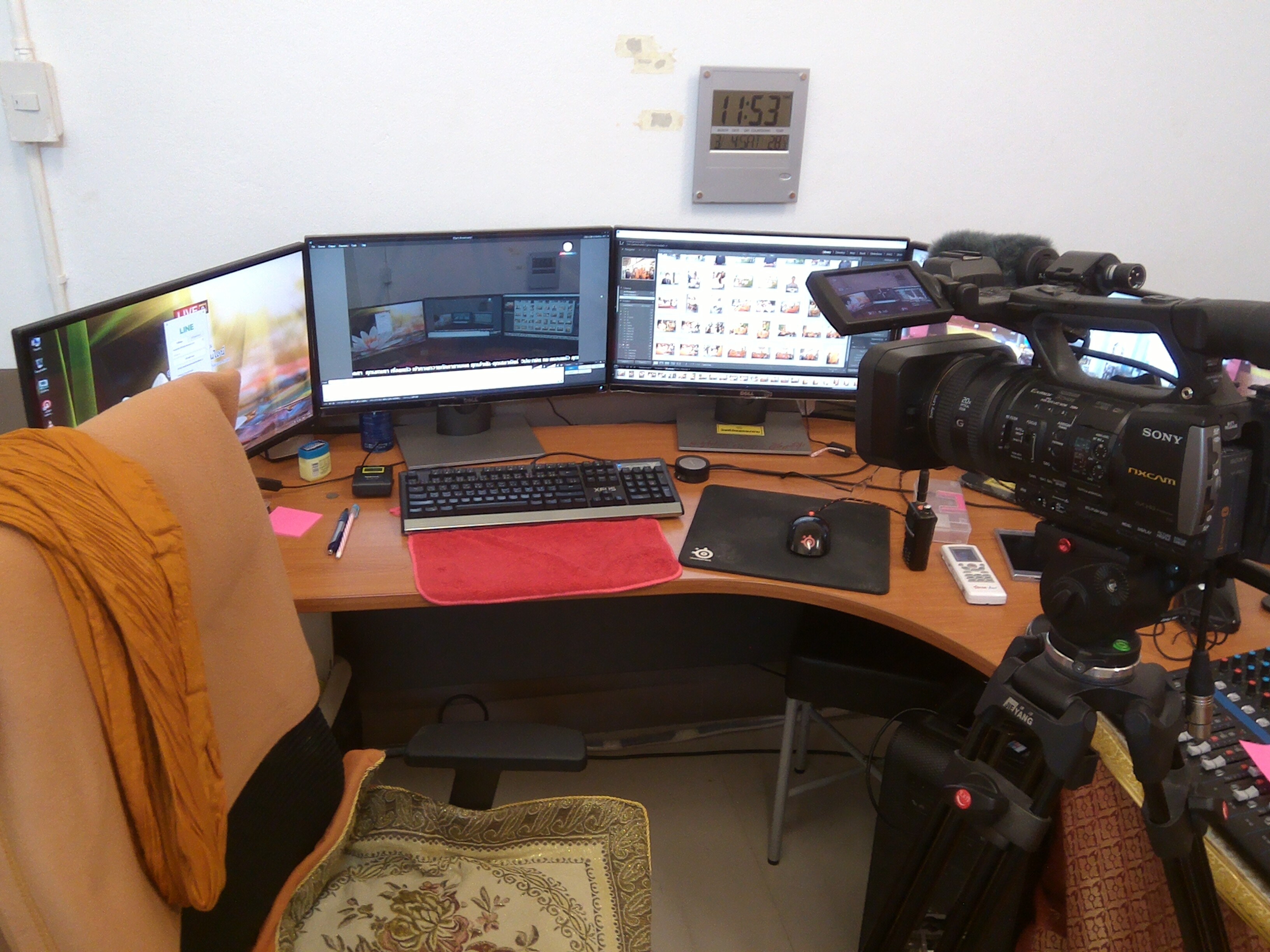

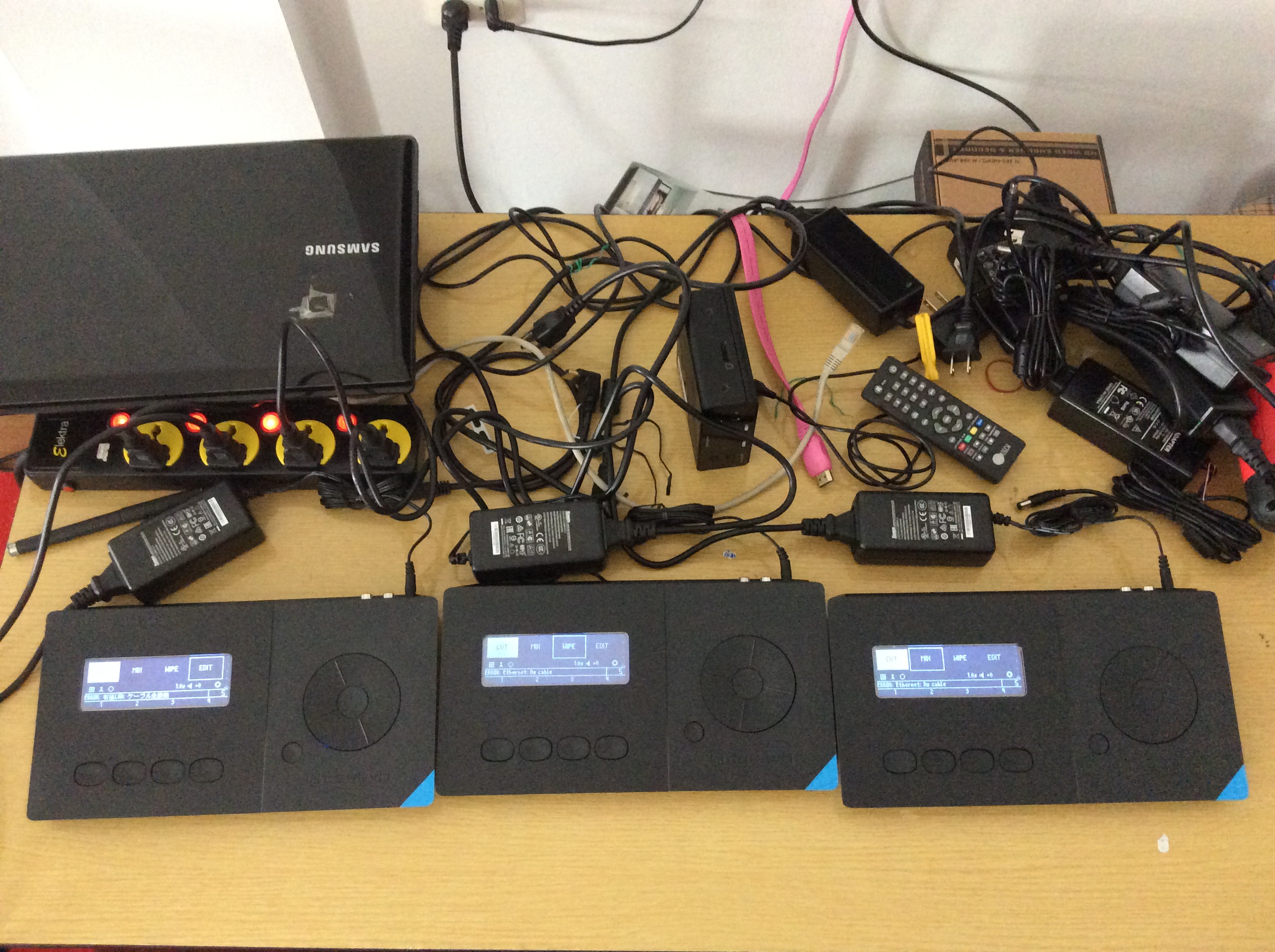

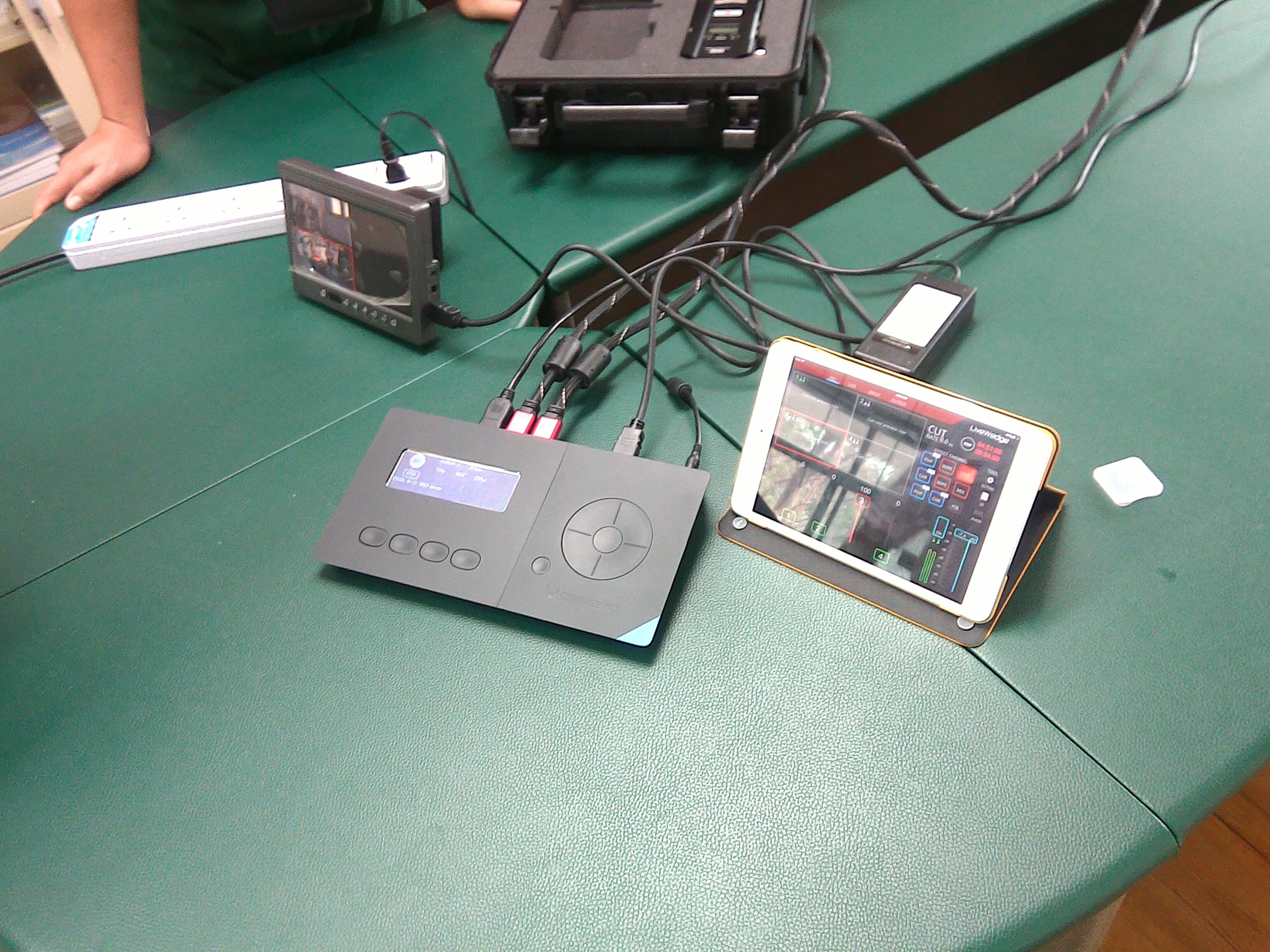

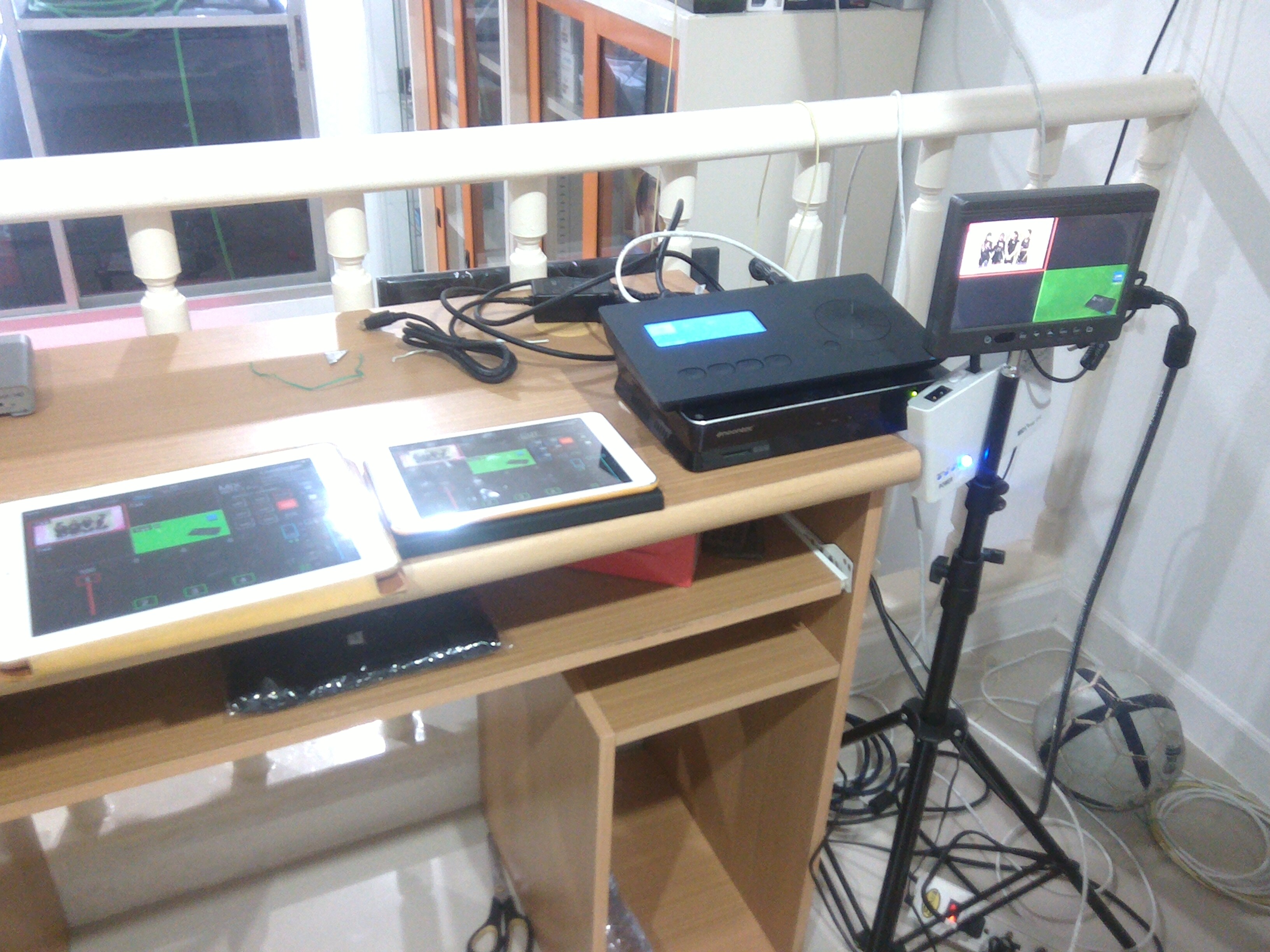

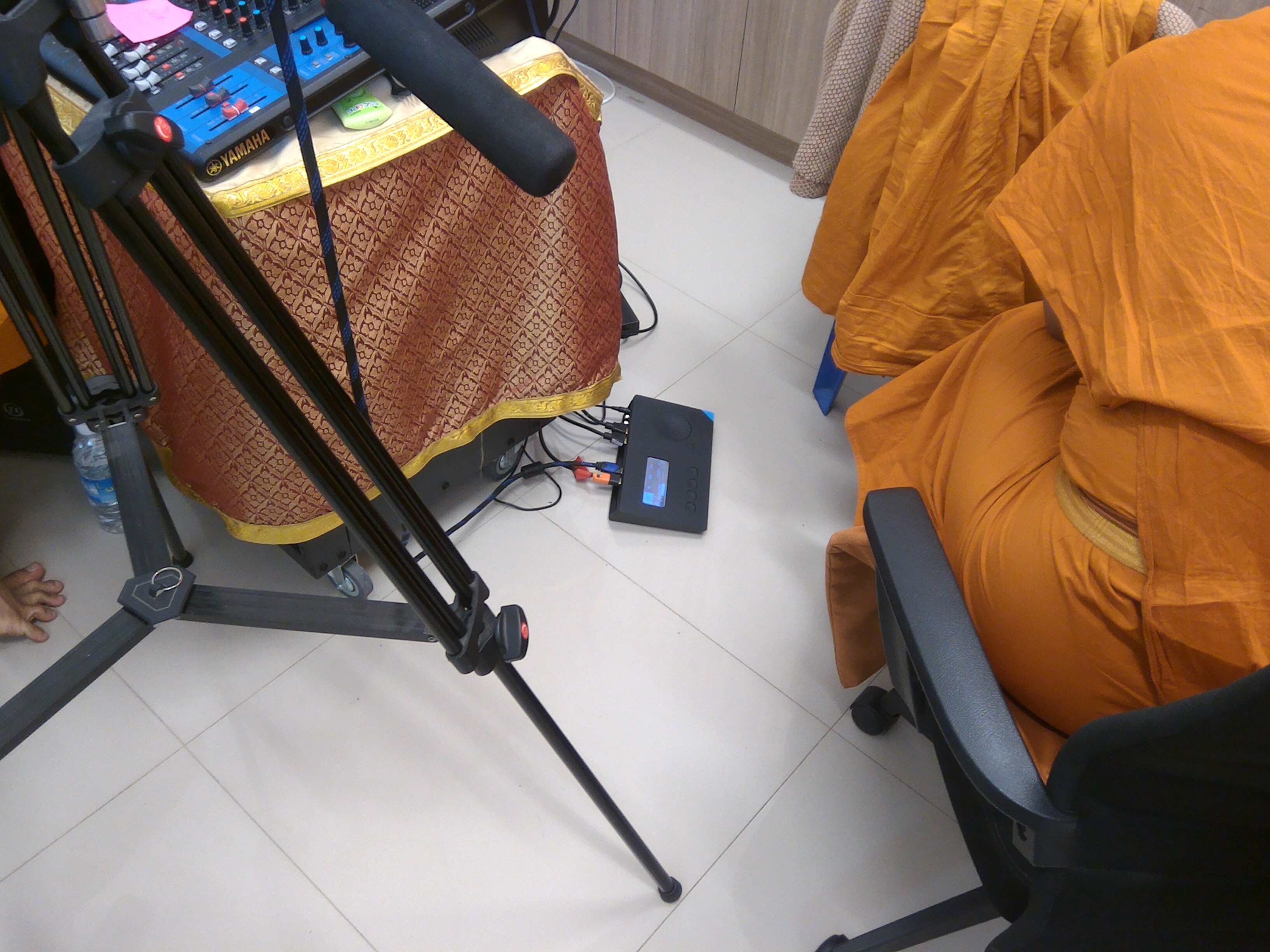

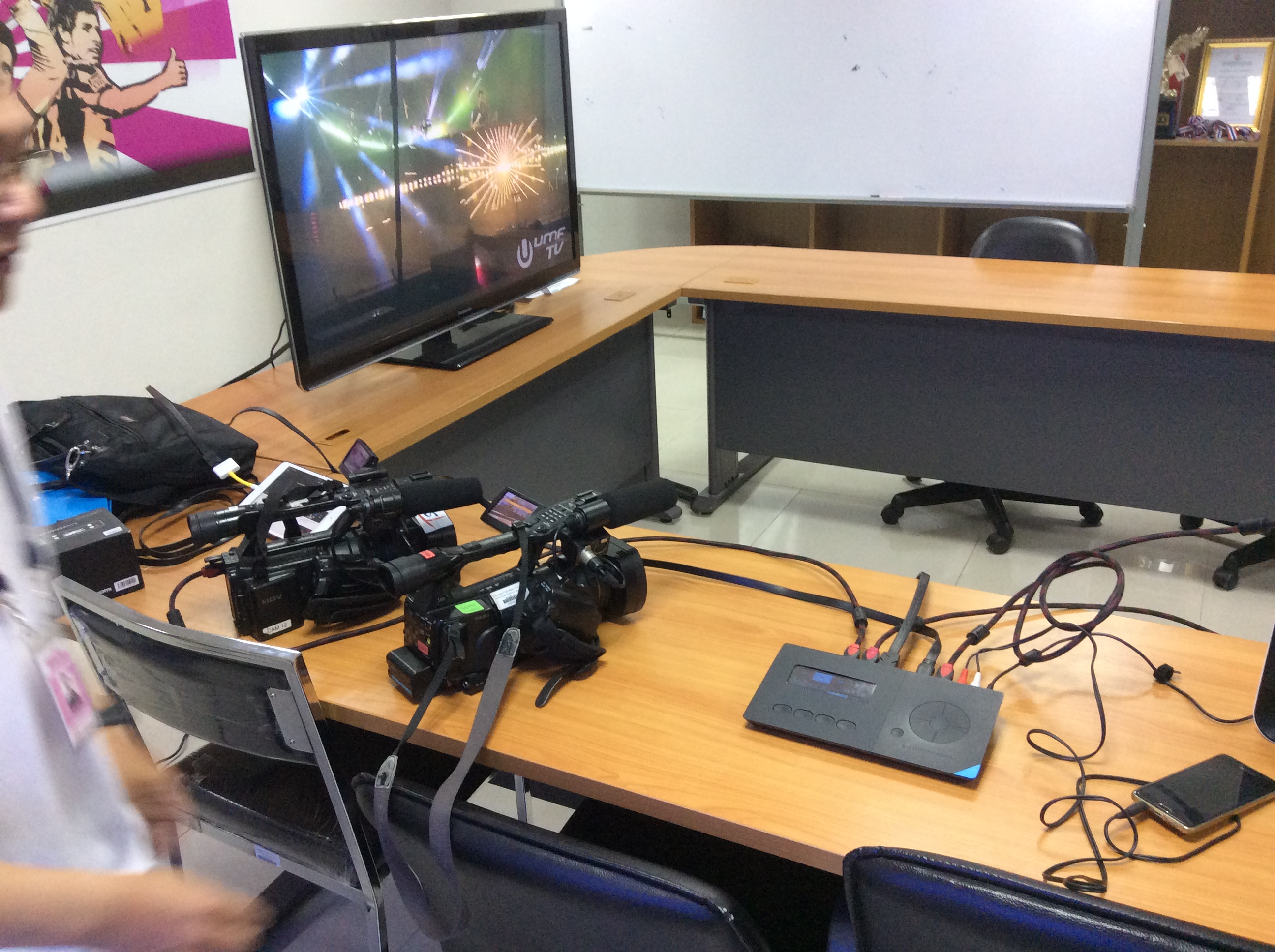

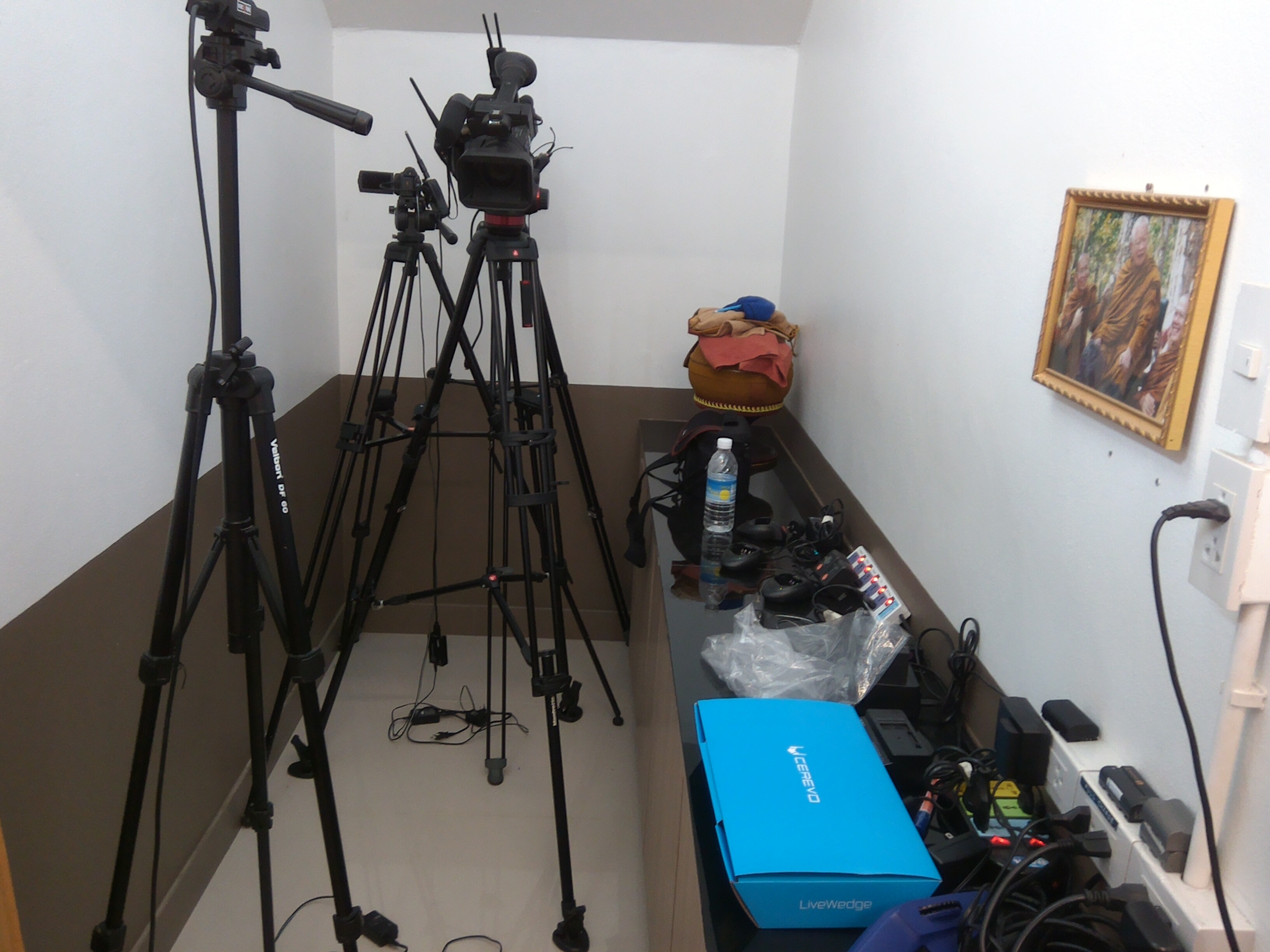

ภาพประกอบการใช้งานของลูกค้า
