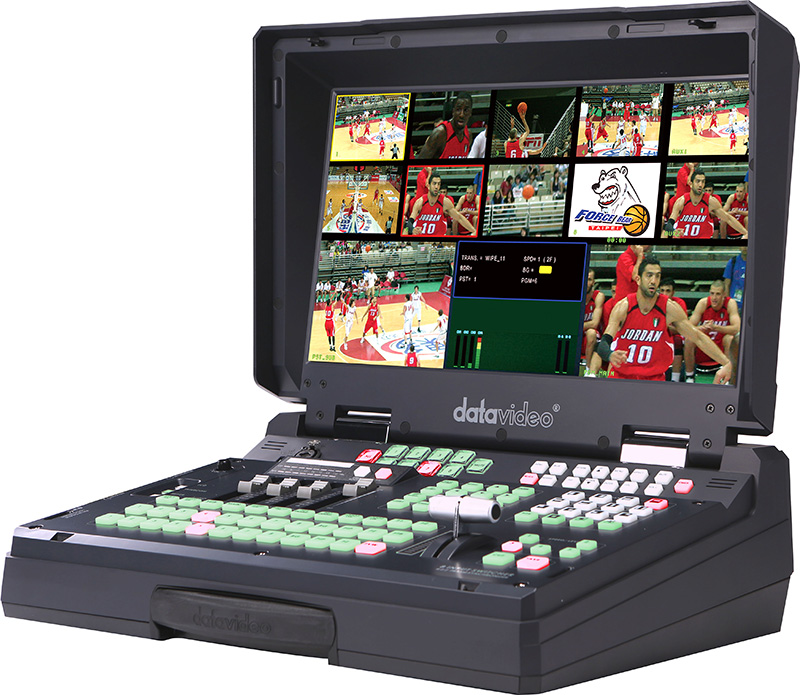

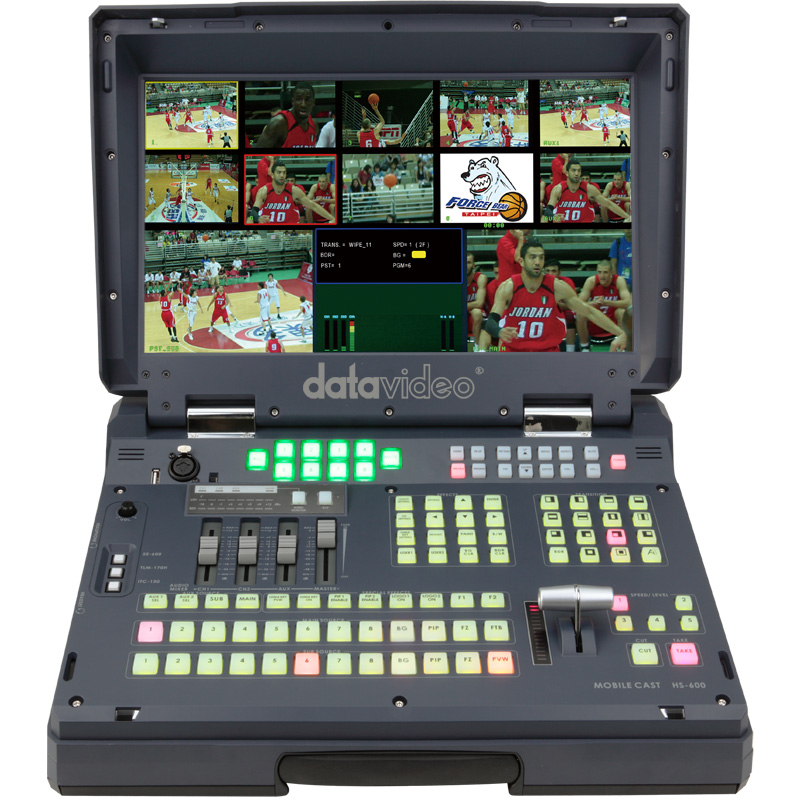

Datavideo HS-600 SD 8 - Channel Mobile Video Studio

Datavideo HS-600 SD 8 - Channel Mobile Video Studio

QuickOverview

• SD Mobile Studio for Composite & DVI-D/I
• SE-600 Switcher
• ITC-100 Intercom & Tally System
• 17" Monitor
• Audio Delay

Features

• Complete integrated solution with six Composite Video and one DVI-D input and one DVI-I input (res. 1024x768, 60Hz)
• Autoswitchable 4:3 & 16:9 inputs
• Two composite video and multiple auxiliary output, with Optional Digital Output Board: 2 x DV25 (IEEE-1394) and 2 x SDI. The flexible outputs make it easy to connect the HS-600 to external devices such as large screens, recorders, streaming and more all at the same time
• Dual Picture-in-Picture function
• 17 inch high quality TFT LED multi-view screen for each input, as well as program & preview and Audio peak meter. Adjustments for brightness, contrast, colour saturation and backlight make using the HS-600 easy to use outdoors
• Built in RS-232 & GPI control interface allow your to control external devices
• Hot key functions allow quick access to vital functions including fade to solid colour, instant key and more

What's in the Box?

• 1 x HS-600 Mobile Studio
• 1 x AC Power Cord
• 1 x Switching Adaptor DC 12V / 5A XLR 4pin Female
• 1 x LED USB Keyboard light
• 4 x ITC-100SL Belt Packs for ITC-50
• 4 x CB-3 XLR 5pin cable for ITC-50 Length 20m
• 4 x MC-1 headsets for ITC-50
• 4 x TD-1 Tally lights for ITC-50
• 4 x CB-7 cable for TD-1 Length 1.2m
• 1 x MC-2 XLR Gooseneck Mic
• 1 x HS-600 Instruction Manual
