Analog to SDI  Mini Converter

• SDI Video Input Switchable between SD, HD and 3 Gb/s SDI.
• SDI Video Outputs Automatically matches the SD, HD and 3 Gb/s SDI video input.
• Multi Rate Support Auto detection of HD or standard definition SDI inputs. SDI Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
• SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.

 Mini Converter Analog to SDI is perfect for converting from analog video in HD/SD component, NTSC, PAL or S-Video to SDI video with the choice to embed SDI audio from balanced AES/EBU or analog audio inputs. Now you can convert analog devices such as Betacam SP, VHS, Set top box's and HDV cameras to SDI video.

Build your SDI studio with the worlds most advanced and easy to use converters! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There's 4 great models to choose from depending on the conversion you need, plus a sync generator model!

Auto Switching SD and HD

Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes. A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.

Redundant SDI Input

Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events. You can connect a redundant cable to the second input, so if the main input is lost due to cable damage or any other cause, Mini Converter will automatically switch over to the redundant input cable. This lets you can use Mini Converters in locations where crowds or the environm ent might cause cable damage, or lets you place Mini Converters in hard to reach loc ations such as roof mounted video projectors etc. A loop though SDI output is also provided for connecting to other devices. A loop-thru SDI connection is also great if you need more than 2 audio channels, as you can connect the loop-thru to another Mini Converter to de-embedd extra audio channels!

New 3 Gb/s SDI Technology

Only Mini Converters include the latest 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility. 3 Gb/s SDI is also fully compatible with all your standard definition and high definition SDI equipment.

Built in AES/EBU or Analog Audio

Standard 1/4 inch jacks are built in for balanced analog or AES/EBU audio. Because Mini Converters use standard 1/4 inch jack connectors for all audio connections, you can use standard cables commonly avalible from any pro audio store. Unlike other converters, Mini Converters don't need custom cables, as any balanced 1/4 inch jack cable can be used. Mini Converters are also unique as the same 1/4 inch jack connections can be switched between professional balanced analog audio, or AES/EBU digital audio. This means you only need one model of Mini Converter for both analog and digital audio. You can select the type of audio from one of the mini switches on the side of the Mini Converter unit. On modes with AES/EBU digital audio in, a sample rate converter lets you connect to any AES/EBU source, either synchronized, or un-syncronised. On HDMI models, you also have full access to the HDMI audio embedded in the HDMI video connection.

High Quality

Mini Converters are built to highest quality standards with low SDI jitter so you get the longest SDI cable lengths combined with multiple internal power supplies for ultra low noise broadcast quality analog video and audio. Unlike other converters, Mini Converters don't use "low grade" video electronics just to save cost. Mini Converters feature the highest grade broadcast quality analog audio and video electronics. In fact, Mini Converters uses the same analog video design as our most expensive and award winning Multibridge Eclipse! That means you get the highest quality, all in a very affordable and incredibly compact unit.

International Power Supply

Unlike other converters, a universal power supply is included with international socket adapters for all countries. This lets you take Mini Converters with you to any location worldwide, and plug directly into the local power sockets. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight!

Flexibility for High End Production

The SDI video standard was designed for total flexibility. All equipment connects together using simple coax BNC cables and the connection can be more than 100 meters or 300 feet apart. SDI doesn't use compression so you can record video to any kind of broadcast or high end consumer deck completely independently of the tape format. Modern equipment such as Mini Converters allow for video rate switching between standard definition 270 Mb/s, high definition 1.485 Gb/s or high definition 3 Gb/s video rates, so newer HDTV equipment can be integrated into existing systems.

Unlike DV, which is only 4:1:1 color sampling with only 1 red and 1 blue video sample per 4 luma samples, SDI is normally 4:2:2 with twice the color resolution. When doing feature film work, or other high end multi-layer video editing, SDI allows full 4:4:4 video where full color resolution is available. When running 4:4:4, you can also connect video using RGB color space instead of the normal YUV color space, which is perfect for feature film work. Traditionally SDI equipment has been expensive, however Blackmagic Design has changed the industry and finally made SDI affordable for everyone. Now SDI is the production format of the choice for high end, corporate, on-location and live broadcast video worldwide.

Mini Converter Analog to SDI

Technical Specifications

Description

Connections

Standards

Software

Operating Systems

Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.

Windows 7 or Windows 8.


Settings Control

Power Requirements

Physical Specifications

Environmental Specifications

What's Included

Warranty

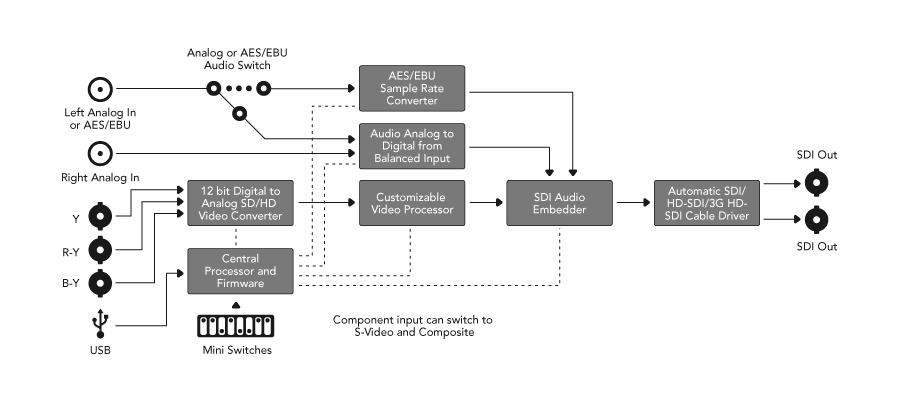

 Function Diagram
