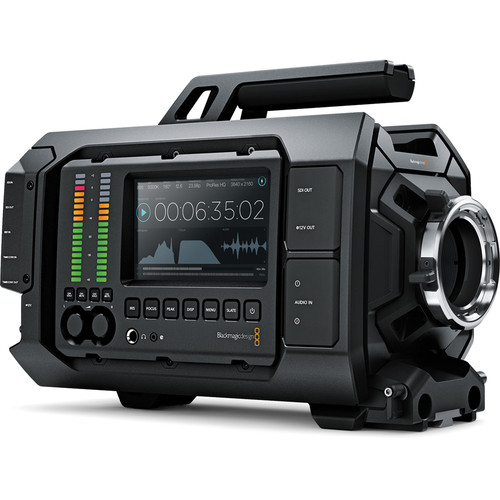

Blackmagic URSA 4K Cinema Camera (EF Mount)

Blackmagic Design URSA 4K Cinema Camera (EF Mount)

QuickOverview

• 12G-SDI Output for 10-Bit 4:2:2 4K
• Dual CFast 2.0 Card Slots

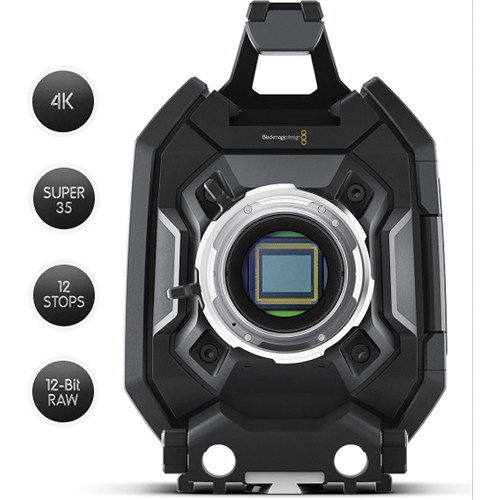

• 4K Super 35 mm Sensor
• Global Shutter
• 12 Stops Dynamic Range
• EF Lens Mount
• 3840 x 2160p Global Shutter CMOS Sensor
• 12 Stops of Dynamic Rang

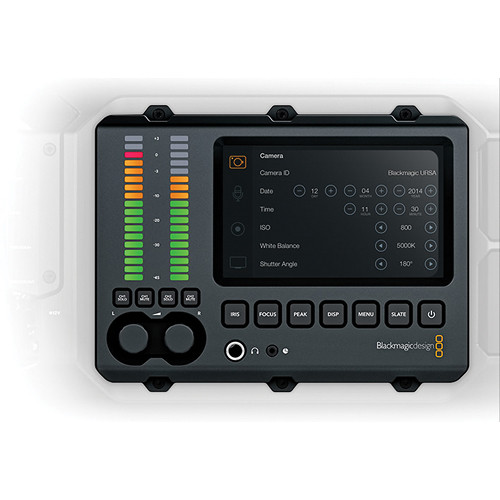

• Dual 5" Touchscreens for Menu Access
• Records CinemaDNG RAW and Pro Res 422 HQ
• Up to 60 fps
• Aluminum Frame with 3/8"-16 Mounting
• LANC Port for START/STOP, Iris, Focus
• Dual Slot CFast 2.0 Recorders
• XLR Inputs with Phantom Power
• Built in 10" LCD Monitors / Viewfinder
• CinemaDNG RAW, Apple ProRes
• Includes DaVinci Resolve Software

Feature

• Large high resolution 4K Super 35 mm sized sensor with superior handing of image detail.

• Professional global shutter for smooth pans and image motion.

• Wide 12 stops of dynamic range allows capture of increased details for feature film look.

• Compatible with extremely high quapty PL mount lenses.

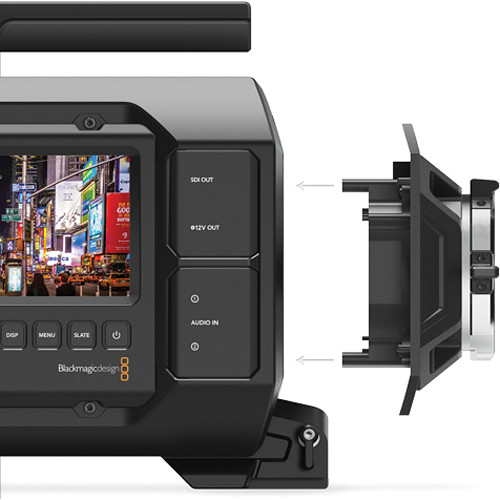

• User upgradable design allows customers to upgrade and change the sensor and lens mount.

• Built in dual CFast 2.0 card recorders allow unpmited duration recording in high quapty.

• Open file formats compatible with popular NLE software, such as Apple ProRes and compressed CinemaDNG 12 bit RAW. No custom file formats.

• Support for ProRes HQ, ProRes 422, ProRes LT, ProRes Proxy recording at resolutions up to Ultra HD.

• Features all standard connections, including dual XLR mic/pne audio inputs with phantom power, 6G-SDI output for monitoring with camera status graphic overlay and separate XLR 4 pin power output for viewfinder power, 6G-SDI monitoring input, headphone jack, LANC remote control and standard 4 pin 12V DC power connection.

• Built in stereo microphones for recording sound.

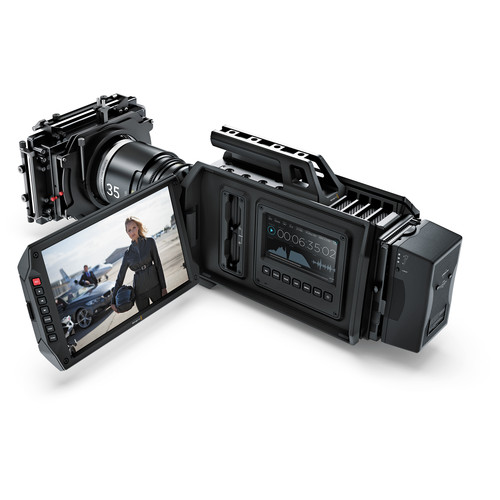

• 3 separate built in LCD monitors for camera settings and metadata entry. Large 10 inch screen folds out for full resolution HD monitoring with wide viewing angle and high brightness.

• Supports Ultra HD and 1080 HD resolution capture in 23.98, 24, 25, 29.97, 30 up to 60 fps.

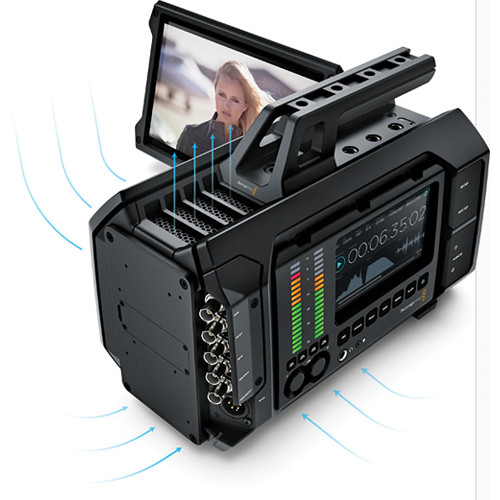

• Features pquid coopng system allowing higher frame rates when future sensors support this feature.

• Supports quick release tripod mounts and adding V-Mount and Anton/Bauer mount battery plates.

• Includes full copy of DaVinci Resolve software color grading and editing software.

In the Box

• Blackmagic URSA PL

• PL Mount turret

• Turret Dust Cap

• 12V AC Adapter

• Tripod mounting plate adapter

• DaVinci Resolve grading software including Resolve USB dongle for Mac OS X and Windows

• Blackmagic Media Express software

• DiskSpeed Test

Specifications

Camera Features Effective Sensor Size

21.12mm x 11.88mm (Super 35)

Effective Resolution

3840 x 2160

Shooting Resolutions

3840 x 2160

1920 x 1080

Frame Rates

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.9, 3840 x 2160p30, 3840 x 2160p60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 1920 x 1080i50, 1920 x 1080i59.9 and 1920 x 1080i60

Sensor frame rate support

Up to 60 fps

Dynamic Range

12 stops

Focus

Manual

Iris Control

Manual

Lens Mount

PL Mount

Screen Dimensions

1 x 10.1” - 1920 x 1200

2 x 5” - 800 x 480

Screen Type

10.1” - TFT-LCD

5” - Integrated LCD capacitive touchscreen

Metadata Support

Automatic camera data and user data such as shot number, filenames and keywords.

Controls

Touch screen menus on 5” screen. Push button controls for navigating menus.

Microphone

Integrated mono microphone

Speaker

Integrated mono speaker

Mounting Options

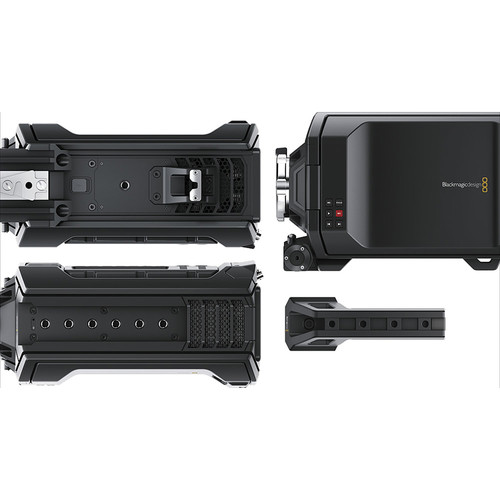

Multiple 1/4”-20 UNC thread mounting on top of camera and on handle bar. Rosette on bottom. Integrated rods mounts compatible with 15mm pght Weight Support standard.

Storage Features Storage Type

CFast 2.0

Storage Rates

Approx 880 Mbps using Apple ProRes 422 (HQ) at 3840 x 2160. Approx 220 Mbps using Apple ProRes 422 (HQ) at 1920 x 1080.

Compressed Recording Formats

Lossless compressed CinemaDNG RAW with film dynamic range at 3840 x 2160. Apple ProRes 422 (HQ) at 3840 x 2160 and 1920 x 1080 with either film or video dynamic range.

Connections SDI Video Output

1 x 12G-SDI 10-bit 4:2:2. 1 x 3G-SDI down converted for external monitoring

SDI Video Input

1 x 12G-SDI

Ref Input

1 x Reference Input

Timecode Input

1 x Timecode Input

Timecode Output

1 x Timecode Output

Analog Audio Input

2 x XLR analog switchable between mic and pne levels. Phantom power support.

Analog Audio Output

1/4” jack output for headphone monitoring

SDI Audio Output

2 channel

Remote Control

1 x 2.5mm LANC for Rec Start/Stop, Iris Control and Focus.

Computer Interface

USB 2.0 Mini-B port for software updates.

Standards SDI Comppance

SMPTE 292M

SDI Audio Samppng

48 kHz and 24-bit

Operating Systems

Mac OS X 10.8 Mountain pon or later.

Windows 7 or later.

Power Requirements External Power Input

1 x 4-pin XLR port for external power or battery use.

External Power Ouput

1 x 12V output using 4-pin XLR for powering external accessories such as EVF.

Power

Rear camera mount compatible with industry standard V-mount or Gold Mount battery plates.

Accessories Optional Accessories

Adapter plate with 15mm pght Weight Support and Rosettes.

Physical Specifications

12.3 x 6.1 x 9.6 (31.2 x 15.5 x 24.4 cm)

Environmental Specifications Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

Warranty Product Warranty

12 Month pmited Manufacturer's Warranty.
