HDR-70 Video Support

NTSC and PAL video and HD video including 1080p, 1080i and 720p

Reference In/Out Black Burst and Tri-level sync

Timecode input/outputs, and gen-lock input and pass-through

SD/HD-SDI input, with SD/HD-SDI outputs with 8-channels of embedded audio

The HDMI output uses a full sized connector and features 4 channels of embedded audio. There is also a nifty cable tie platform under the HDMI connector that you can use to secure the HDMI connector to the unit with available cable ties.

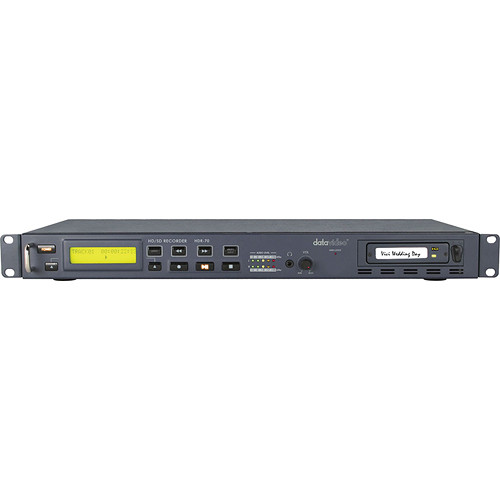

The front panel features local control buttons and a built-in headphone jack with volume knob

Features

LCD menu screen

Lockable drive bay.

Timelapse recording feature

Power on record/play

Media files are made on the fly with no rendering required.

In the event of power loss during recording, only the last two seconds of your recording are lost

Removable rack mount ears (ships unattached)

Removable rubber feet (ships attached)



• Inputs: 1x HD/SD-SDI
• Supported Input Resolutions: 1080i(50, 59.9, 60), 720p(50, 59.9, 60), 576i(50), 480i(59.9)
• Outputs: 1x HD/SD-SDI, 1x HDMI

• Inputs: 2x Balanced XLR (Analog Stereo Pair 2-Channels)
• Outputs: 2x Balanced XLR (Stereo Pair 2-Channels)
• Embedding: Stereo Audio embedded to HD/SD-SDI (8-Channels) and HDMI (4-Channels) outputs and to saved file
• Recording Format: PCM 24-bits / 8-Channels / 48KHz Sampling Rate

• 1x HD/SD-SDI

• MXF OP1A
• MOV (currently unsupported in Adobe Premier CC)

• HD (35-125Mbps): 4:2:2
• HD (10-25Mbps): 4:2:0
• SD (15-50Mbps): 4:2:2
• SD (8Mbps): 4:2:0

• 320GB HDD Included
• Compatible with SSD Drives

• HDR-70 Recorder
• 320GB Hard Drive with Enclosure
• Additional Empty HD Enclosure
• Power Adapter & Cable (DC 12V 1.5A 110/220)
• Instruction Manual
