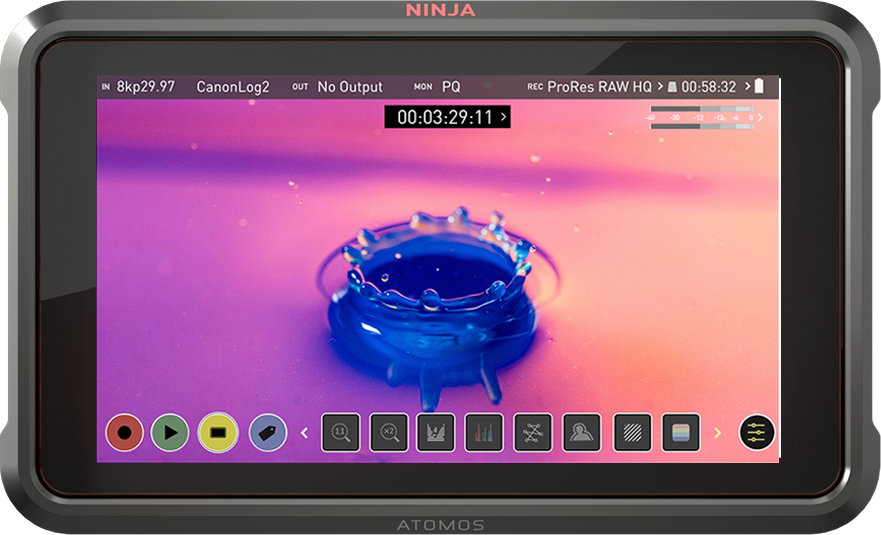

Atomos Ninja V+ 5.2" 8K HDMI ProRes RAW Recording Monitor
Tags : ProRes RAW Recorder, atomos ninja v ราคา, Atomos Ninja V, Ninja V, เครื่องบันทึก, จอบันทึก, เครื่องบันทึกติดกัวกล้อง, ninja v ขาย, ninja v ราคา, จอมอนิเตอร์ขนาด 5.2 นิ้ว รองรับการบันทึกระดับ 8K
รายละเอียดสินค้า
NINJA V+
จอมอนิเตอร์ขนาด 5.2 นิ้ว รองรับการบันทึกระดับ 8K ด้วย SSD ขนาดสูงสุด 1 TB.
Specifications
| Physical Specifications | |
|---|---|
| Dimensions (W x H x D mm) | 151 x 91.5 x 31 mm |
| Weight | 360 g / 12.7 oz |
| Mount points | Anti-rotational 3/8-16 screw mount points, 1/4-20 screw mount adaptor installed. 1x top and 1x bottom |
| Environmental | |
| Ambient operating temperature | Up to 40 Degrees Celsius |
| Construction and Control | |
| Body | Aluminium alloy chassis with ABS Polycarbonate back plate |
| Cooling | Heat Sink and actively controlled fan with user selectable modes in menu |
| Tally light | Rear and front |
| Multi-function button | Power / lock Screen |
| AtomXpansion slot | Yes |
| Power | |
| Input voltage | 5.8 - 7.2V (Battery) |
| Operating power | 10-22W |
| Compatible batteries | NP-F L series and supporting accessories |
| Built in battery | No |
| Battery Run time (Record) | 5200mAh - up to 2hrs (monitor & record 4K 60p) 7800mAh - up to 3hrs (monitor & record 4K 60p) |
| Battery Run time (Monitor only) | 5200mAh - up to 2hrs (monitor & record 4K 60p). 7800mAh - up to 3hrs (monitor & record 4K 60p) |
| Continuous power | Enabled by optional AtomX SYNC Expansion Module |
| DC in connector | Via DC Jack on Battery eliminator |
| Dtap | Via Battery Eliminator and optional D-Tap to DC cable |
| Display | |
| Touchscreen | SuperAtom IPS panel (capacitive touch) calibration to Rec.709 with optional calibration unit |
| Size | 5.2" |
| Resolution | 1920 x 1080 |
| PPI | 423 |
| Bit depth | 10Bit (8+2 FRC) |
| Backlight Type | Edge lit |
| Brightness (cdm2 / nits) | 1000 +/- 10% |
| Aspect ratio | 16:9 |
| De-interlace mode | I > P and PSF > P |
| Color Gamut | Rec.709 |
| Calibration support | Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus (Retail) |
| Color Pipeline | |
| Gamma | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Nikon N-Log, Panasonic V-Log, JVC J-Log1, Olympus OM-Log400 / Flat, Lecia L-Log, Z Cam Z-Log2, RED LogFilm / RED Log3G10 / RED Log3G12, FujiFilm F-log, PQ (HDR10), HLG |
| Gamut | Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema, DCI P3 / DCI P3+, Nikon NLog, Panasonic V-Gamut, Arri Alexa Wide Gamut, Rec709, BT.2020, FujiFilm F-Gamut, JVC LS300, RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 JVC LS300 Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display | .Cube Format |
| 3D LUT Output | Loop out |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | Native / HLG / PQ / 3D LUT |
| HDR output Conversion | Log / HDR to HLG / PQ / Dolby Vision |
| Video Input | |
| HDMI | 1 x HDMI (2.0) 4k p60 |
| HDMI RAW | Apples ProRes RAW up to 8k |
| SDI | 2 x 12G SDI Backward compatible via optional AtomX SDI module |
| SDI RAW | Optional with AtomX SDI module + SDI RAW activation |
| Bit Depth | 8/10-Bit Video / RAW up to 12Bit |
| Video Chroma Subsampling | 420 and 422 |
| HDCP copy protection | Not supported |
| Metadata | |
| HDMI | RAW - white balance, exposure index, shutter speed/angle, iris F-stop, ISO, gamma, gamut |
| SDI | File name from Arri & RED via Optional AtomX SDI Module |
| Video Output | |
| HDMI | 1 x HDMI (2.0) 4k p60 |
| SDI loop out | Optional Via AtomX SDI module |
| SDI Play out | Optional Via AtomX SDI module |
| Video Chroma Subsampling | 4:2:2 |
| Bit Depth | 10-bit Video / 12-bit RAW |
| Web Streaming | |
| USB UVC | Optional Via Connect 4k |
| Video Signal Conversion | |
| HDMI to SDI | Optional Via AtomX SDI module |
| SDI to HDMI | Optional Via AtomX SDI module |
| Audio In/Out | |
| Audio Quality | 24-bit 48kHz |
| Audio Codec | PCM |
| HDMI | 8ch 24-bit, input dependent |
| SDI | 12ch 24-bit, input dependent |
| Analogue Audio in | 3.5mm 2ch. |
| Analogue Audio Out | 3.5mm 2ch. |
| Headphone out | 3.5mm 2ch. |
| Timecode / Sync | |
| Embedded | HDMI and SDI |
| Time of day | Yes, Time and Date |
| LTC | via 3.5mm audio Jack input (Requires post processing) |
| Wireless SYNC | Via Optional AtomX SYNC Module |
| Resolution and Frame Rates (Record, Monitor & Playback) | |
| 8k | RAW Only up to 30p via HDMI |
| 6k | RAW Only up to 30p via HDMI and SDI (Camera dependent 5.9k HDMI and 5.7k SDI) |
| 5k | RAW Only up to 30p via HDMI |
| 4k DCI | 23.98/24/25/29.9/30/50/59.94/60p - HFR 100/120 via RAW over HDMI & SDI on selected cameras |
| 4k UHD | 23.98/24/25/29.9/30/50/59.94/60p |
| 2K DCI 2046 x 1080 | Optional via AtomX SDI module |
| Anamorphic | 3.5k: RAW up to 60p (from supported cameras only) |
| FHD 1920 x 1080 Progressive | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
| FHD 1920 x 1080 PsF | converted to P and looped out PsF |
| FHD 1920 x 1080 Interlaced | 23.98/24/25/29.9/30/50/59.94/60i |
| 1280 x 720p | 50/59.94/60p |
| Recording CODEC | |
| Apple ProRes RAW | ProRes RAW, ProRes RAW HQ (Free activation via my.Atomos.com) |
| Apple ProRes | LT, 422, 422HQ |
| Avid DNxHD | DNxHD 220x,220,145,36 (Free activation via my.Atomos.com) |
| Avid DNxHR | LB, SQ, HQ, HQX (Free activation via my.Atomos.com) |
| H.265 | LQ, MQ, HQ in 8/10Bit, 422 and 420 (Free activation via my.Atomos.com) |
| Playback | |
| Playlist | Yes, Create custom play lists from full or sub clips |
| Loop | Yes, with user customisable in / out markers |
| Apple ProRes Raw | Yes, recorded clips |
| Apple ProRes | Yes, with Linear PCM audio |
| Avid DNx | Yes, with Linear PCM audio |
| H.265 | Yes, recorded clips with Linear PCM audio |
| Recording functions | |
| Pre-roll record | Yes (HD 8s, 4K 2s) - Not available in RAW |
| Timelapse | Yes |
| Multi Input / Switching | |
| SDI A/B toggle | Via optional AtomX SDI module |
| Multiple HDMI input | Via optional AtomX CAST module |
| Supported media | |
| Master Caddy I | Not compatible |
| SSDmini | Native Size and Fit |
| CFast II | Supported cards via optional SSDmini CFAST II Adaptor |
| File Naming | Unit Name - Scene/Shot/Take |
| File System | ExFAT |
| On screen tools | |
| Waveform | Yes, 3 size / Position |
| RGB parade | Yes, 3 size / Position |
| Vector scope | Yes, 2 size / Position |
| 1 x Zoom | Yes. 1:1 Pixel mapping for 4k |
| 2 x Zoom | Yes |
| Focus peaking | Color selected / threshold setting / color / mono / edges only |
| False colour | Yes, with Scale |
| Zebra | Yes, Adjustable |
| Isolate color channel | Blue Only |
| Cine Frame Guides | 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame guides | 9:16, 1:1, 1.91:1, 4:5 |
| Safe areas | Action and Graphic |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 1.25x 1.33x , 1.5x ,1.8x ,2x |
| Display Flip | Vertical Only |
| Onboard Signal Processing | |
| Pulldown Removal | 24/25/30pSF > 24/25/30p (2:2 pulldown), 60i > 24p (3:2 pulldown) |
| 4K UHD Downscale for HD | Loop out - 4K UHD to FHD |
| DCI Crop | Loop out - 17:9 to 16:9 Crop |
| Remote control | |
| HDMI | Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard |
| SDI | SDI trigger camera selectable |
| Serial 2.5mm Jack | LANC control and calibration via optional USB to serial cable |
| Bluetooth LE | Via AtomRemote app (requires AtomX SYNC module) |
| Wireless RF | Via optional AtomX SYNC module |
| External Device Control | |
| Serial 2.5mm Jack | Camera control for supported cameras via Optional USB to Serial Cable |
| Bluetooth LE | Via optional AtomX SYNC module to compatible devices |
| Wireless RF | Via optional AtomX SYNC module to compatible devices |
| Supported Applications | |
| XML | Cut tag EDL in FCPX XML |
| Apple ProRes RAW | Apple FCP, Adobe Premier, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light. |
| Video Codecs | All Applications with support for Apple ProRes, H.265 and Avid DNX in .MOV wrapper |
| What’s in the box | |
| Accessories included | Ninja V +, EVA Carry case, 5" Protective Monitor sleeve, Battery eliminator, international DC power supply, 1x MasterCaddy II and QuickStart Guide |
| Optional extras | Sunhood, DC to D-Tap, Power Kit, HDMI Cables, USB to Serial cable, AtomX SYNC, AtomX SDI, AtomX CAST modules, UltraSync ONE, UltraSync Blue |
| Warranty | |
| Standard | 1 year. Extended to 3 years on product registration |
