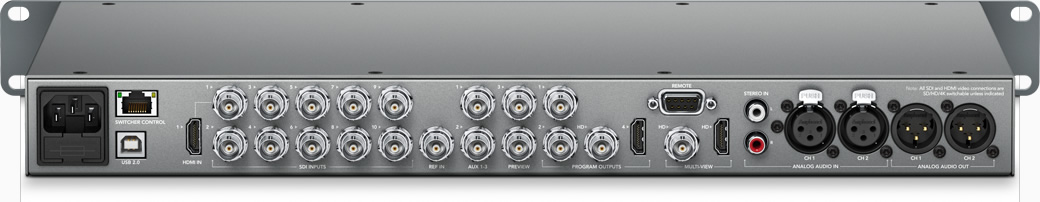

Total Video Input

10

Total Video Output

8

SDI Video Input

10 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.

HDMI Video Input

1 x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.

Analog Audio Output

2 x XLR.

SDI Audio Output

2 Ch embedded into SDI output on all outputs.

Audio Input

2 x XLR. 2 x RCA.

Sync Input

Tri-Sync or Blackburst.

Internal Frame Synchronizers

10. All inputs.

SDI Program Output

2 x 10-bit SD/HD/Ultra HD 4K switchable.

HDMI Program Output

1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.

Down Converted SDI Program Output

1 x 10-bit (Ultra HD 4K to HD)

SDI Preview Output

1 x 10-bit SD/HD/Ultra HD 4K switchable.

SDI Aux. Output

3 x 10-bit SD/HD/Ultra HD 4K switchable.

Quantity of Multi Views

2

Multi View Outputs

1 x SDI and 1 x HDMI.

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.

Tally Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)

Computer Interface

1 x USB 2.0 port.

SD Format Support

525 59.94i NTSC, 625 50i PAL, 525 59.94i 16:9, 625 50i 16:9.

HD Format Support

720 50p, 720 59.94p 1080 50i, 1080 59.94i, 1080 23.98p, 1080 24p, 1080 25p, 1080 29.97p, 1080 50p, 1080 59.94p.

Ultra HD 4K Format Support

3840x2160 23.98p, 3840x2160 24p, 3840x2160 25p, 3840x2160 29.97p.

SDI Compliance

SMPTE 259M, 292M.

Video Sampling

4:2:2.

Color Precision

10-bit.

Color Space

REC 601, REC 709, REC 2020.

HDMI Input Resolutions for Computers

720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz, 1920 x 1080 50Hz, 1920 x 1080 59.94Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz.

Control Panel Included

ATEM Software Control Panel included free for Mac OS X 10.7.2 or 10.8 Mountain Lion and Windows 7 64-bit or Windows 8 32-bit or 64-bit.

Software Updates

Using USB 2.0 connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Colorspace Conversion

Hardware based real time.

Processing Delay

< 2 Lines.

Audio Mixer

12 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
Analog outputs may be used for separate monitoring.

4K to HD Down Conversion

Yes, program x 1.

Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later.

Total Number of Layers

8

Upstream Keyers

4

Downstream Keyers

2

Linear/Luma Keyers

7

Chroma Keyers

4

Pattern Generators

7

Color Generators

2

Transition Keyer (Stinger/DVE)

1 and 1

DVE with 3D Borders & Drop Shadow

1

Control Panel Compatibility

ATEM 1 M/E Broadcast Panel preferred. Compatible with ATEM 2 M/E Broadcast Panel. Includes ATEM Software Control Panel.

Interface

Minimum monitor resolution of 1366 x 768.

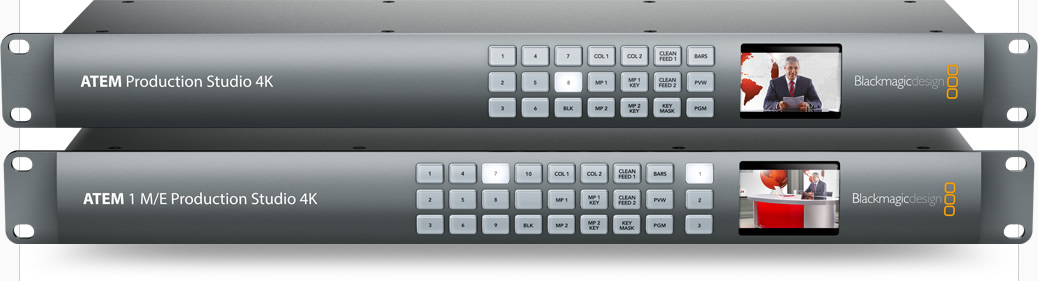

Front panel

Built in LCD monitor for video and 27 LED buttons for Aux switching.

Media Players

2

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

32 with fill and key.

Media Pool Clip Capacity

2 with fill and key.

Maximum Clip Length in Ultra HD 4K

180 frames

Maximum Clip Length in 1080

720 frames.

Maximum Clip Length in 720p

1600 frames.

Maximum Clip Length in NTSC/PAL

3600 frames.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Video File Format

TGA Sequence.

Media Pool Audio File Format

WAV, MP3 and AIFF.

Number of Windows

1 x 10

Routable Windows

8

Tally

Red for program and green for preview indication.

Windows Source Labels

Yes

Physical Installation

1 Rack Unit Size.

Power Usage

100 W

Power Supply

1 x built in international AC power supply. 110-240V AC.

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing
