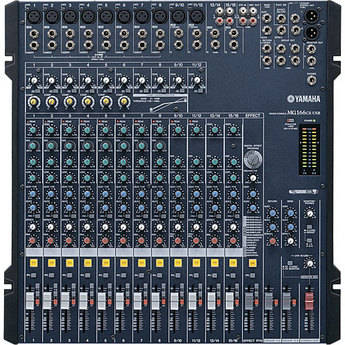

YAMAHA MG166CX-USB

YAMAHA MG166CX-USB

มิกเชอร์ 16 Input (8 Mono + 4 Stereo), Stereo Out, 4 Group Out, 2 Aux, 16 Digital Effect, 6 Channel Compressors, USB  YAMAHA Mixer

Quick Overviewer

• 16-Channels
• 10-Microphone Inputs
• 4-Stereo Channels
• 6 Built-In Compressors
• USB Connection

16 Inputs

The MG166CX-USB features a total of 16 line inputs via 1/4" TRS balanced Phone connections.

Internal Effects

An internal effects processor provides up to 16 user selectable presets including reverb, delay, chorus, flanger, distortion and more.

USB Port

A USB port is provided and integrates with an PC for direct, digital recording and playback. A copy of Cubase AI4 recording software is also included.

Built-in Compressor

A built-in compressor is featured on 6 of the mono channels for controlling vocal and instrument dynamics.

4 Stereo Inputs

Input channels 9/10, 11/12, 13/14 and 15/16 are stereo paired for inputs, suitable for connecting playback devices or keyboards.

High Quality Microphone Inputs

10 of the inputs feature high quality balanced XLR connections. The inputs are capable of +48V phantom power.

Inserts

1/4" TRS phone connections are found on every microphone input allowing flexible signal routing to external processors.

4 Output Buses

A Stereo Group bus output features a pair of 1/4" TRS phone outputs. The MG166CX-USB features a total of 4 buses when using stereo group and main stereo outputs simultaneously.

Sweepable EQ Section

All mono channels feature a 3-band EQ with sweepable mid-range and high pass filter.

Total # Of Inputs	16 - Total Inputs
Mic/Line Inputs	10 - Mic Inputs: Balanced 3-pin XLR 16 - Line Inputs: Balanced 1/4" TRS Phone
Stereo Line Inputs	4 - Stereo Line Inputs: (L/R) Balanced 1/4" TRS Phone, channels 9/10, 11/12, 13/14, 15/16 channels 13/14 & 15/16 feature both TRS Phone and RCA Phono connections
In-Line Inputs/Returns	No
AUX Sends	2 - L/R Stereo 1/4" TRS Phone connections
AUX Returns	Aux are returnable via stereo input channels
Inserts	1/4" TRS Phone all mono channels
BUS (Group) Outputs	Stereo Group Bus: (2) 1/4" TRS Phone 4 Bus output when used in conjunction with main stereo output
Main Outputs	Stereo Outputs: L/R 1/4" TRS Phone & L/R XLR 3-pin balanced
ALT I/O	REC Outputs: L/R RCA Outputs
Monitor Outputs	C/R Outputs: L/R 1/4" TRS Phone
EQ Section	CH & ST High Pass Filter: 80Hz 12dB/octave Mono Channel EQ -15dB (max.): High: 10kHz (shelving) Mid: 2.5kHz (peaking) Low: 100Hz (shelving) Stereo Channel EQ -15dB (max.): High: 10kHz (shelving) Mid: 2.5kHz (peaking) Low: 100Hz (shelving)
Solo/Mute	Mute & PFL Solo - all input channels
Channel Level Control	Faders
Trim/Gain Control	Sealed Rotary Potentiometers (POTS) Gain Range: CH IN MIC: -60 to -16, 3k ohms actual CH IN LINE: -34 to 10, 10k ohms actual ST CH MIC: -60 to -16, 3k ohms actual ST CH LINE: -34 to 10, 10k ohms actual
Phantom Power	+48V
Metering	Stereo Peak LED
Frequency Response	20Hz - 20kHz @ +4dB 600 ohms (ST Out)
Dynamic Range	Not Specified by Manufacturer
Signal-to-Noise Ratio	-128dB 20Hz-20kHz, RS=150 ohms, Input Gain=Maximum, Input Pad=OFF, Input sensitivity -60dB
Total Harmonic Distortion (THD)	Less than 0.1% (THD+N) <20Hz - 20kHz @ +14dB 600 ohms (ST OUT)
Power Supply	27W 120 V/60Hz
Dimensions (WxHxD)	18.81 x 4.13 x 19.52" (478 x 105 x 496mm)
Weight	12.12 lbs (5.5kg)
