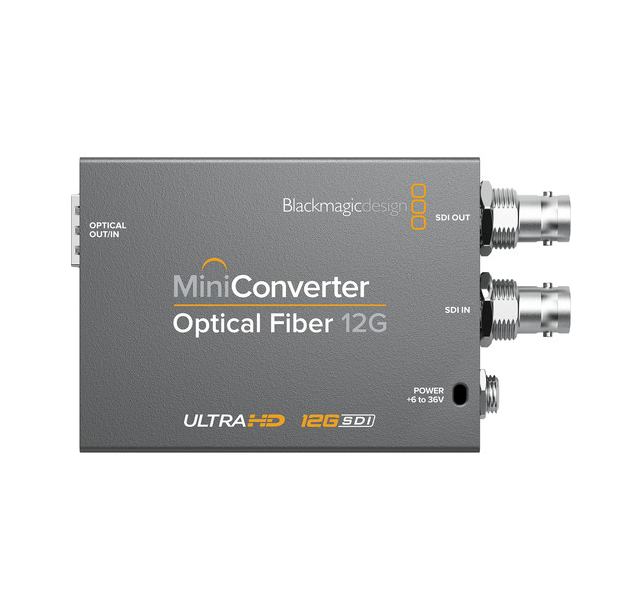

Name: Blackmagic Design Mini Converter Optical Fiber 12G
Brand: Blackmagic Design
SKU: SKU-01554
Price: 6200 THB
Availability: InStock

Packaging Info

Package Weight	0.925 lb
Box Dimensions (LxWxH)	5.8 x 4.7 x 2.75"

Connections

SDI Video Inputs

1 x SD, HD and 12G‑SDI Video and 1 x Optical Fiber Input.

SDI Video Outputs

Automatically matches the SD, HD and 12G‑SDI video input on the Optical Fiber.

Optical Fiber Connection (optional)

1x SMPTE optical fiber SFP socket.

Optical fiber SFP module sold separately.

Optical Fiber Video Inputs

1 x 10 bit SD/HD/12G‑SDI switchable.

Optical Fiber Video Outputs

Automatically matches the SD, HD and 12G‑SDI video input.

Optical Fiber Audio Inputs

16 channel embedded.

Optical Fiber Audio Outputs

16 channel embedded.

Multi Rate Support

Auto detection of SD, HD or 12G‑SDI.

Reclocking

Yes

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425M, SMPTE 424M‑B, SMPTE ST‑2081, ITU‑R BT.656, ITU‑R BT.601 and SMPTE 297M for Optical Fiber SDI.

SDI Video Rates

SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2 and 4:4:4

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically detects SD, HD or 12G‑SDI.

ASI Support

Yes

รหัสสินค้า	SKU-01554
หมวดหมู่	CONVERTER
ราคา	6,200.00 บาท
ยี่ห้อ	Blackmagic Design
รุ่น	Mini Converter Optical Fiber 12G
สถานะสินค้า	พร้อมส่ง
ลงสินค้า	13 ธ.ค. 2562
อัพเดทล่าสุด	13 ธ.ค. 2562
คงเหลือ	ไม่จำกัด
จำนวน	ชิ้น

Video Input Connectors	1 x BNC (12G-SDI)
Input Video Format	SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps
Embedded Audio Input	SDI: 16-Channel

Video Output Connectors	1 x BNC (12G-SDI / 3G-SDI / 6G-SDI)
Output Video Format	SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps
Embedded Audio Output	SDI: 16-Channel

Video Standard Compliance	SMPTE 259M/292M/296M/297M/424M-B/425M/ST-2081 ITU -R BT.601
HDCP Support	None

Power Connector	1 x Barrel (6 to 36 VDC) Input
Power Consumption	Power Supply: 2 W

Blackmagic Design Mini Converter Optical Fiber 12G

รายละเอียดสินค้า

Blackmagic Design CONVMOF12G Specs
