Blackmagic Design UltraStudio Mini Monitor

เป็นอุปกรณ์สำหรับ monitoring สำหรับงานตัดต่อ ขนากเล็กพกพาได้ง่าย แสดงภาพผ่านพอร์ต HDMI / SDI output เชื่อมต่อคอมพิวเตอร์ผ่าน Thunderbolt Port รองรับการทำงานได้ทั้งระบบ mac และ pc

Quick Overview

  • Thunderbolt Port
  • SD/HD
  • 3Gb/s SDI Output
  • HDMI Output
  • Support up to 1080p60
  • 10-Bit Color Precision / 4:2:2 Sampling
  • HD Down Conversion
  • Supports all common SD/HD video formats up to 1080p60
  • Uncompressed and compressed 10-bit 4:2:2 YUV quality
  • Supports Final Cut Pro X, Adobe Premiere Pro CS6, Avid Media Composer 6, Adobe After Effects CS6, Adobe Photoshop CS6 and more
  • Media Express Software

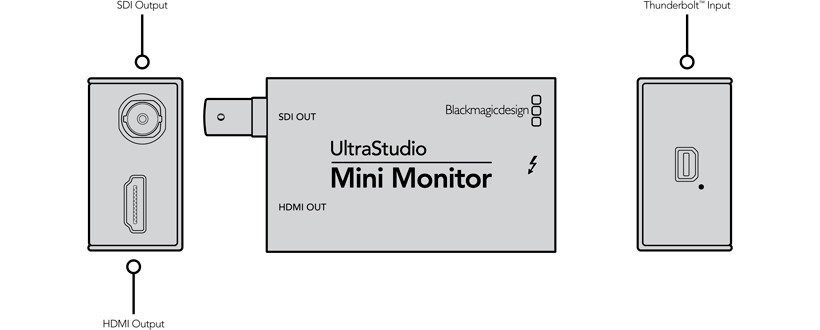

UltraStudio Mini Monitor

Technical Specifications

Description

When you need low cost monitoring for editing, then UltraStudio Mini Monitor is perfect. Plug in Thunderbolt and monitor out of the SDI and HDMI outputs. Perfect for using low cost HDMI TVs and projectors for monitoring.



Connections

SDI Video Output

1 x 10-bit SD/HD switchable.

HDMI Video Output

1 x HDMI type A connector.

SDI Audio Output

8 Channels embedded in SD and HD.

HDMI Audio Output

8 Channels embedded in SD and HD.

Computer Interface

Thunderbolt™

Codecs

Supports:  AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.



Software

Software Included

Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver, Mac OS X and Windows Drivers.

Internal Software Upgrade

Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Other supported applications include: Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Harris Infocaster.


Video Standards

SD Format Support

625/25 PAL, 525/29.97 NTSC.

HD Format Support

720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60.

SDI Compliance

SMPTE 259M and 292M.

Audio Sampling

Television rate of 48kHz and 24 bit.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709

HDMI Resolution

Pixel for pixel HD resolution input to connected device.

HDMI Color Precision

10 bit

Multiple Rate support

SDI and HDMI are switchable between standard definition and high definition.

Processing

Colorspace Conversion

Hardware based real time.

HD Down Conversion

Software based down conversion during video playback.

Real Time Effects

Apple Final Cut Pro™ internal effects. Adobe® Premiere Pro® Mercury Playback Engine effects. Avid Media Composer internal effects.

Physical Installation

Requires computer with a Thunderbolt™ port. Please check the Support pages to see the full system requirements.

Operating Systems

Icn Mac Mavericks

Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later.

Icn -windows

Windows 7 or Windows 8.




Power Requirements

Powered by Thunderbolt cable.



Physical Specifications




Environmental Specifications

Operating Temperature

5° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

UltraStudio Mini Monitor

Software CD



Warranty

12 Month Limited Warranty.
