Datavideo SE-3200 most advanced 12 input 1080P 50/60 switcher

Completely customizable 12 input full HD production switcher

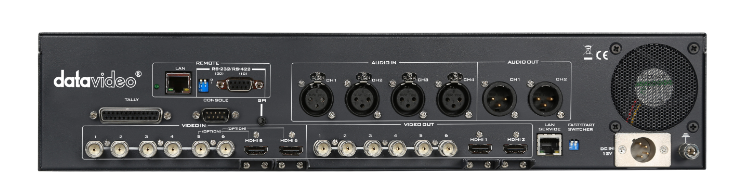

The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.

Supports full HD 1080P with scaling on each available input

The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.

Create stunning video effects with advanced features

Advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.

Built-in Stinger Transitions and backgrounds

Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects, and you can also import your own Stinger Transitions & Animated Logos.

Included CG Title Creator

All 3200 series switchers have built-in support for Datavideo CG software. This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.

Custom Multiview layout & dual Multiview output

• Flex Source to go that extra mile

  Flex Source gives you nearly the power of a 2 M/E switcher, in a 1 M/E switcher! Create a complete extra layer of image composition. These complex setups can be saved and recalled with the touch of a button. The Flex Source provides 4 PIPs with 3D Borders, with Backround layer and an additional Key Layer allowing many sophisticated





• 4 Chromakeyers for a complete virtual studio experience

  Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.





  Up to 8 picture-in-picture frames with unique 3D borders

  Create up to 8 picture-in-picture frames that can be active at the same time. Picture-in-picture frames are fully adjustable in size and position and have various border options including our unique 3D borders.





  Crosspoint assignment for ultimate flexibility

  Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!




•


  Perfect lip-sync audio

  Up to 4 stereo XLR audio inputs, next to embedded audio on each input. 2 de-embedded output channels to the mixing table and delay functionality to create a perfect lip-sync.





  Output Downconverter

  SE-3200 is an output down converter to allow 1080i or 720p output when in 1080p/60/50 modes.

   1080p Level B support

  SDI Inputs support 1080p/60/50 Level B

  Specifications


  SE-3200 HD 12-Channel Digital Video Switcher
  Video Standard	Full HD
  Video Format	1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz
  Video Processing	SDI: 4:2:2 HDMI: YUV 4:2:2, RGB: 4:4:4
  Input Routable / Crosspoint	All 12, repeatable
  Video Input	8x SDI, 4x HDMI
  Computer Graphic Interface	4 via HDMI
  Video Output	6x SDI, 3x HDMI
  Built-in Multi-view Monitoring Out	HDMI
  Audio Input	4x Balanced XLR
  Audio Output	2x Balanced XLR
  Embedded Audio Support	Embedded 4-CH audio output
  Audio Delay Calibration	Up to 16 fields or 8 frames per channel
  A+V Switching	Yes
  Chromakey	4
  USK	4x USK support Chromakey & Linear/ Luma Key
  DSK	2x DSK support Lumakey & Linear key (Key / Fill)
  Picture in Picture	8 (4x PIP, 4x Flex Source)
  Logo Insertion	2
  Still Store	999+
  Effects	DVE, FTB, Cut, 32 Wipe with border
  Transition Preview	Full transitions preview
  Sync / Reference In/Out	Built-in Genlock Support external sync with loop thru
  Tally Output	1x D-sub 25pin, dual color
  PC Remote Control	Via Ethernet (free Window software) or RS-422 / RS-232
  Special Features	4 User Memory Preset Free Virtual Set and Stinger transition included
  Chassis	2 units, 2RU rack-mount mainframe
  Dimension (LxWxH)	433 x 312 x 76 mm (switcher) 432 x 252 x 88 mm (main unit)
  Weight	4 kg
  Power	DC 12V, 69W
  Operating Temp. Range	0~40 °C
  Options	CB-46/47/60/61/62
  What's in the box	1 x SE-3200 Main Unit 1 x SE-200 Control Board 2 x AD Switch DC 12V 1 x AC Cord 1 x DB9P TO DB9P Cable 12 x Screw 2 x 2U Ear Rack 1 x Thank You Card
