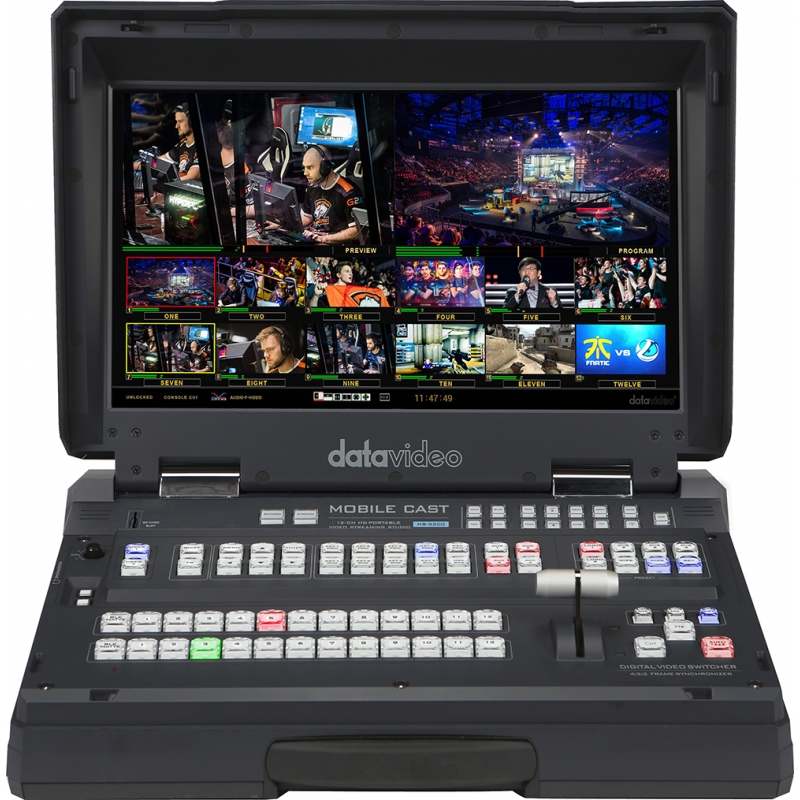

HS-3200 is a 12 channel professional mobile hand carry switcher with real Full 1080p/60 (3G) High Definition support, it features easy-to-use video streaming and recording appliance for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.

With 12 digital inputs including 8 SDI and 4 HDMI inputs with embedded audio, 5 SDI and 4 HDMI outputs for connecting HD recorder, monitor, etc.

HS-3200 is a lightweight, portable and powerful featured mobile studio solution which is designed for live events and TV programs that need to mix a variety of video and audio sources. HS-3200 is also a great value solution for the worship, education and AV market.

The HS-3200 also has powerful, easy to use effects, including Chroma / Luma Key, DSK, PIP, DVE, Wipe Generator, Still stores, logo insertion.

Advanced features include a 17.3-inch Full HD 1080p video monitor, which displays the multi-view, the Multi-view includes all the input sources, as well as preview and program.

Key Features

• One machine for 12 channel 1080p video switching, recording and streaming
• Up to 8 Picture in Picture based on Flex Source support
• Four video keyers
• Broadcast quality H.264 media streaming for sending videos to broadcast platforms like Facebook, YouTube or Twitch
• Record on SD Card for post-production
• Pre-saved multiple sets of animation files and background pictures

FEATURES

• Full native 1080p (3G) operation
• Simultaneous Live Streaming & Recording
• Broadcast quality HD / SD H.264 network streaming
• Support different bitrate for recording and streaming

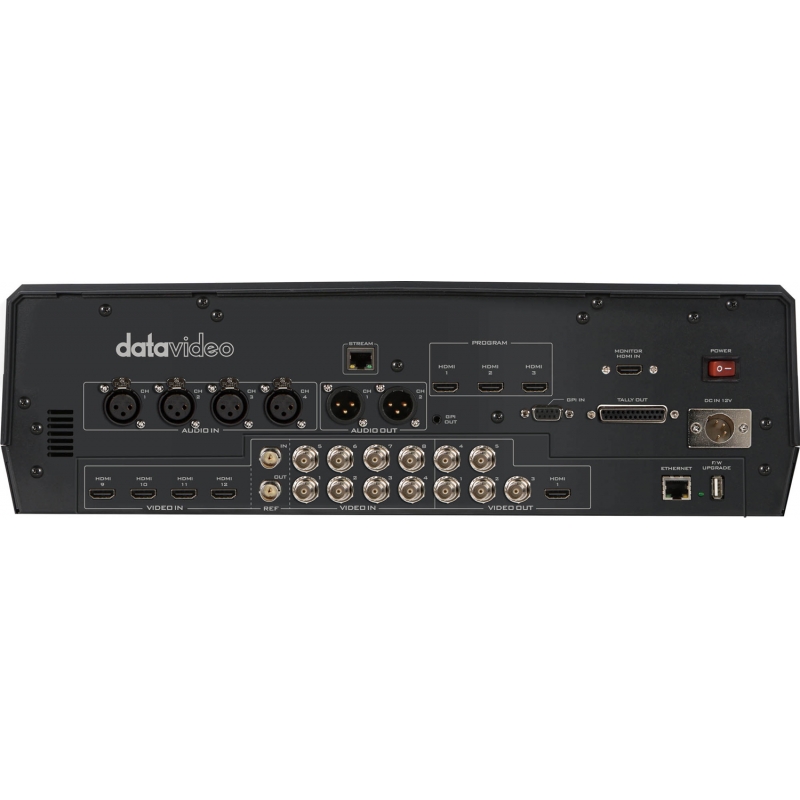

• 12 Total Video input interfaces (8 x SDI, 4 x HDMI)
• 9 Video Outputs: 5xSDI+4xHDMI
• 4 Upstream Keyers, supporting Chroma key & Linear / Luma key
• 8 PIP (4 flex source included)
• 2 DSK, supporting Linear & Luma Key Modes
• 2 Logo insertion (Animation logo, X/Y size)
• Wipe, Mix, DVE, Cut and Stinger Transitions
• 32 Wipe patterns including Circle & Heart, and Borders & Softness Control
• Clip player (150 Frames) Stinger Transitions function
• Any Input (1-12) can be used as a Frame store (Stills Store)
• Support XPT (Cross Point Assignment)
• 4 x XLR Analogue Audio Inputs
• 2 x XLR De-Embedded Analogue Audio Outputs
• Tally output
• USB Port for FW upgrade
• One 17.3-inch with a resolution of 1920x1080 dots

อุปกรณ์ในกล่อง

• 1x HS-3200
• 1x AD switch DC 12V with AC Cord
• 1x Thank You Card

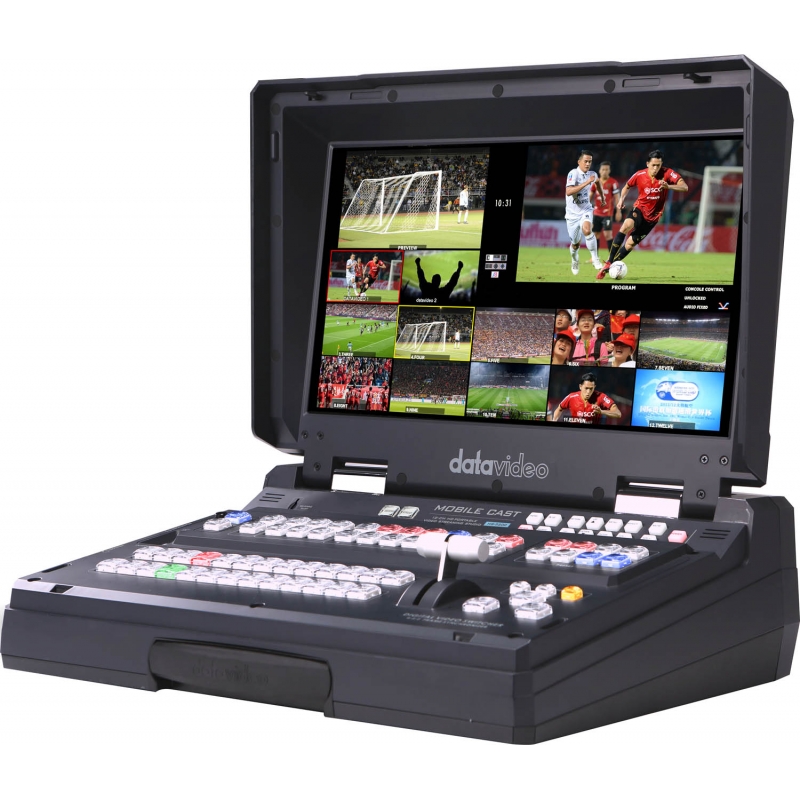

HD 12-Channel HD Portable Video Streaming Studio

A complete and portable solution for on-the-go live productions

This professional studio includes a built-in switcher, recorder, streaming encoder, audio delay, and monitor, which can easily be carried to your next live production location.



Perfect for large-sized live video productions

Supports 12 inputs and 9 outputs in full 1080p resolution.



Create stunning video effects with advanced features

8 x PIP, 4 x upstream keyers, 2 x DSK and 2 x independent logos or dual chromakeyer.



Stream to Facebook Live, YouTube, Twitch and more

The built-in H.264 web streaming encoder allows you to stream your show to Facebook, YouTube or Twitch in no time.



Built-in animations and backgrounds

Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.
