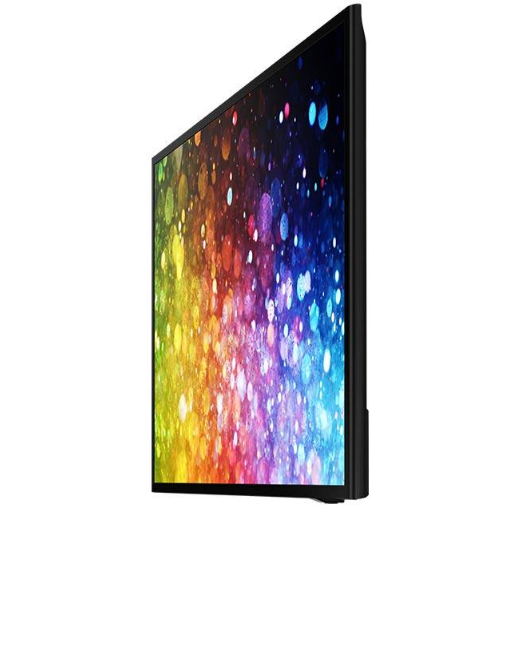

Samsung DC-J Series 49"-Class Full HD Commercial Smart LED TV

Utilize the Local Schedule Manager to seamlessly play content from the internal memory and/or a USB drive.
For added convenience, configure playback settings and create schedules directly through the display with
a remote control.

Diversify Connectivity Preferences

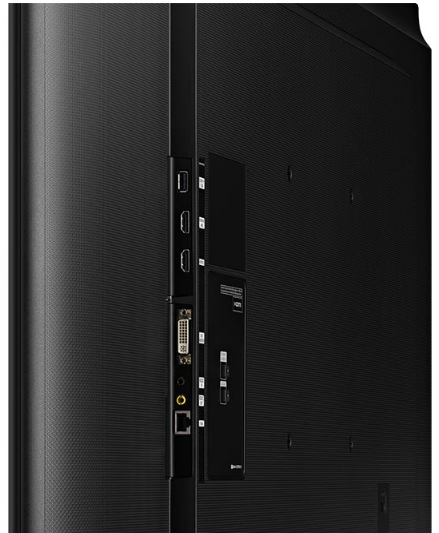

With a versatile interface including USB, DVI, HDMI, RS-232C and RJ45, easily connect and use a wide
array of devices with the display.

Specs

Panel

·         Diagonal Size49"

·         Type60Hz D-LED BLU

·         Resolution1920*1080 (Full HD)

·         Pixel Pitch(mm)0.18642(H) x 0.55926(V)

·         Active Display Area(mm)1073.78(H) x 604.00(V)

·         Brightness(Typ.)300 nit

·         Contrast Ratio3000:1

·         Viewing Angle(H/V)178:178

·         Response Time(G-to-G)8ms

·         Display Colors16.7 M

·         Color Gamut72%

·         Haze2%

Display

·         Dynamic C/RMEGA

·         H-Scanning Frequency30 ~ 81kHZ

·         V-Scanning Frequency48 ~ 75HZ

·         Maximum Pixel Frequency148.5MHz

Sound

·         Speaker TypeBuilt in Speaker(10W + 10W)

Connectivity

·         RGBDVI-I

·         VideoHDMI 1.4 (2), Component(CVBS Common)

·         HDCPHDCP 1.4

·         AudioStereo Mini Jack, RGB/DVI/HDMI/CVBS/Component Audio(Common)

·         USBUSB 2.0 x 1

·         RGBN/A

·         VideoN/A

·         AudioStereo Mini Jack

·         Power OutN/A

·         External ControlRS232C(in) thru stereo jack, RJ45

·         External SensorN/A

·         TunerYes(only for NA/KR)

Power

·         TypeInternal

·         Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz

·         Max[W/h]121

·         Typical[W/h](W/W)64, (US)42, (KR)76

·         BTU(Max)412.6

·         Sleep modeless than 0.5W

·         Off mode0

Mechanical Specification

·         Set1118.8 X 650.0 X 74.2

·         Package1236 X 750 X 161

·         Set10.1

·         Package14.7

·         VESA Mount (mm)200*200mm

·         Mounting HoleN/A

·         Protection GlassN/A

·         Stand TypeN/A

·         Media Player Option TypeN/A

·         Bezel Width (mm)17.4(Top), 18.5(Bottom), 21.5(Side)

Operation

·         Recommended Usage Hours16/7

·         Operating Temperature0.0  ℃  ~   40.0   ℃

·         Humidity10.0  %  ~   80.0   %

Feature

·         Key FeaturesLight LFD with Built-in MagicInfo Lite

·         Special FeaturesH/W : Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2) S/W : Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Lite, Firmware Update by Network

·         ProcessorMIPS 24K

·         On-Chip Cache MemoryL1 : 16KB/16KB L2 : 128KB

·         Clock Speed650MHz

·         Main Memory Interface512MB

·         GraphicsN/A

·         Storage (FDM)179MB

·         MultimediaN/A

·         IO PortsN/A

·         Operating SystemSamsung Proprietary OS(VDLinux)

Certification

·         Safety- CB (Europe) : IEC60950-1/EN60950-1 - CCC (China) : GB4943.1-2011 - PSB (Singapore ) : PSB+IEC60950-1 - NOM (Mexico ) : NOM-001-SCFI-1993 - IRAM (Argentina ) : IRAM+IEC60950-1 - SASO (Saudi Arabia ) : SASO+IEC60950-1 - BIS(India) : IEC60950-1 / IS13252 - NOM(Mexico) : Tunerless : NOM-019-SCFI-1998 - KC(Korea) : K 60950-1 - EAC(Russia) : EAC+IEC60950-1 - INMETRO(Brazil) : INMETRO+IEC60950-1 - BSMI(Taiwan) : BSMI+IEC60950-1 - RCM(Australia) : IEC60950-1/AS/NZS 60950-1 - CSA (Canada) : cUL - UL(USA) : cUL60950-1 - TUV (Germany) : CE - NEMKO (Norway) : CE

·         EMC- FCC (USA) Part 15, Subpart B Class A - CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 - VCCI (Japan) : VCCI V-3 /2010.04 Class A - KCC/EK (Korea) : Tunerless : KN22 / KN24 - BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital) - C-Tick (Australia) : AS/NZS CISPR22:2009 - CCC(China) :GB9254-2008, GB17625.1-2012 - GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003

Accessory

·         IncludedQuick Setup Guide, Regulatory Guide, Warranty Card,Power Cord, Remote Controller, Batteries, RS232C(IN) adapter,ANT Shield Box(Only for KR)

·         StandSTN-L4355F

·         MountWMN4070SE

·         SpecialtyN/A

Media Player

·         Media PlayerSBB (Not attatchable)

·

·
