Samsung DCE Series SMART Signage

Amaze your audience

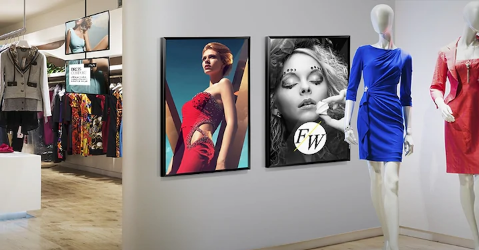

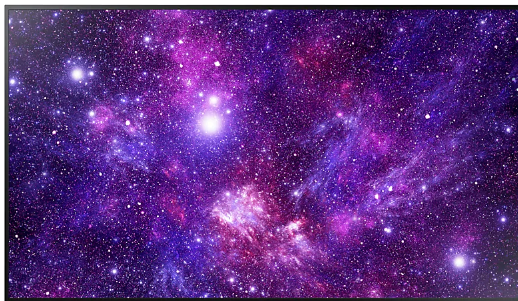

With 330-nit brightness and reliable playback up to 16 hours a day, 7 days a week, the Samsung DC32E is the perfect display for retail spaces, busy offices and restaurants. The slim and sleek display delivers incredible picture quality that makes information and marketing messages stand out and engages customers effectively.



Simplified content playback
The Samsung DC32E has MagicInfo Lite Player built in, so you can conveniently showcase a wide range of content, including videos, images, photos on demand or from a schedule. You can store content directly on the display’s large internal memory or external USB devices that you can plug straight in.



Convenient content control
With MagicInfo Lite media player on-board the Samsung DC32E, you can control content across a network of displays from a single remote PC. You can also read device information, schedule content, monitor data and set alarms without having to attend to each individual display.



Well connected

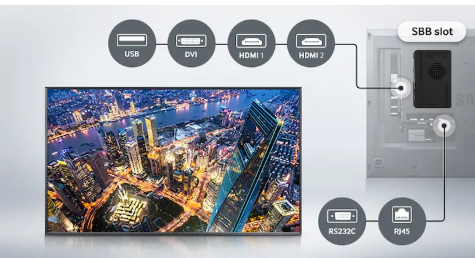

The Samsung DC32E’s wide range of built-in connectivity options make it easy to work with other digital signage and devices. You can connect to the DC32E via HDMI, DVI, D-sub, component and composite input, as well as RS-232C and RJ45. You can also attach an SBB player, which can transform your signage into all-inclusive digital signage solutions.

Specs

Panel

·         Diagonal Size32"

·         Type60Hz D-LED BLU

·         Resolution1920*1080 (Full HD)

·         Pixel Pitch(mm)0.12125(H) x 0.36375(V)

·         Active Display Area(mm)698.4(H) x 392.85(V)

·         Brightness(Typ.)330 nit

·         Contrast Ratio5000:1

·         Viewing Angle(H/V)178:178

·         Response Time(G-to-G)8ms

·         Display Colors16.7 M

·         Color Gamut72%

·         Haze2%

Display

·         Dynamic C/RMEGA

·         H-Scanning Frequency30 ~ 81kHZ

·         V-Scanning Frequency48 ~ 75HZ

·         Maximum Pixel Frequency148.5MHz

Sound

·         Speaker TypeBuilt in Speaker(10W x 1)

Connectivity

·         RGBD-SUB, DVI-D

·         VideoHDMI1, HDMI2, Component(CVBS Common)

·         HDCPHDCP 1.4

·         AudioStereo Mini Jack, RGB/DVI/HDMI/CVBS/Component Audio(common)

·         USBUSB 2.0 x 1

·         RGBN/A

·         VideoN/A

·         AudioStereo Mini Jack

·         Power OutN/A

·         External ControlRS232C(In) thru stereo jack, RJ45

·         External SensorIR

·         TunerYes(only for NA/KR)

Power

·         TypeInternal

·         Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz

·         Max[W/h]77.0

·         Typical[W/h](W/W)50, (US)28, (KR)60

·         BTU(Max)262.57

·         Sleep modeless than 0.5W

·         Off mode0

Mechanical Specification

·         Set721.4 X 420.3 X 49.9

·         Package815 X 491 X 132

·         Set4.4

·         Package5.9

·         VESA Mount (mm)200*200mm

·         Mounting HoleN/A

·         Protection GlassN/A

·         Stand TypeFoot Stand (Optional)

·         Media Player Option TypeEmbbeded, SBB (Not attachable)

·         Bezel Width (mm)10.5 (Top/Side), 15.0 (Bottom)

Operation

·         Recommended Usage Hours16/7

·         Operating Temperature0.0  ℃  ~   40.0   ℃

·         Humidity10.0  %  ~   80.0   %

Feature

·         Key FeaturesSlim & Light LFD with Built-in MagicInfo Lite

·         Special FeaturesH/W: Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 1) S/W: Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Lite, Firmware Update by Network

·         ProcessorN/A

·         On-Chip Cache MemoryN/A

·         Clock SpeedN/A

·         Main Memory InterfaceN/A

·         GraphicsN/A

·         Storage (FDM)179MB

·         MultimediaN/A

·         IO PortsN/A

·         Operating SystemSamsung Proprietary OS(VDLinux)

Certification

·         Safety- CB (Europe) : IEC60950-1/EN60950-1 - CCC (China) : GB4943.1-2011 - PSB (Singapore ) : PSB+IEC60950-1 - NOM (Mexico ) : NOM-001-SCFI-1993 - IRAM (Argentina ) : IRAM+IEC60950-1 - SASO (Saudi Arabia ) : SASO+IEC60950-1 - BIS(India) : IEC60950-1 / IS13252 - NOM(Mexico) : Tunerless : NOM-019-SCFI-1998 - KC(Korea) : K 60950-1 - EAC(Russia) : EAC+IEC60950-1 - INMETRO(Brazil) : INMETRO+IEC60950-1 - BSMI(Taiwan) : BSMI+IEC60950-1 - RCM(Australia) : IEC60950-1/AS/NZS 60950-1 - CSA (Canada) : cUL - UL(USA) : cUL60950-1 - TUV (Germany) : CE - NEMKO (Norway) : CE

·         EMC- FCC (USA) Part 15, Subpart B Class A - CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 - VCCI (Japan) : VCCI V-3 /2010.04 Class A - KCC/EK (Korea) : Tunerless : KN22 / KN24 - BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital) - C-Tick (Australia) : AS/NZS CISPR22:2009, - CCC(China) :GB9254-2008, GB17625.1-2012 - GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

Accessory

·         IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter

·         StandSTN-L3240E

·         MountWMN4070SD

·         SpecialtyCML400D (Ceiling Mount)

Media Player

·         Media PlayerSBB (Not attachable/Optional)
