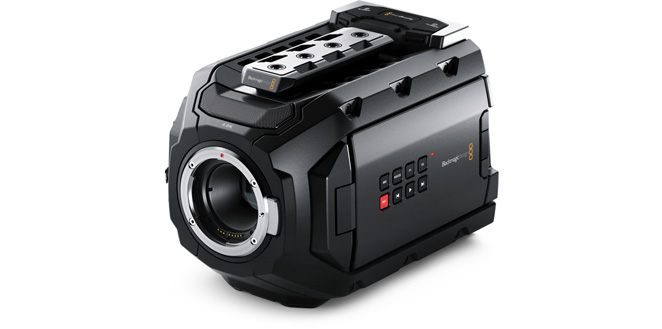

Blackmagic URSA Mini 4.6K EF

Name: Blackmagic URSA Mini 4.6K EF
Brand: BLACKMAGIC DESIGN
SKU: URSA Mini 4.6K EF
Price: 181700 THB
Availability: PreOrder

Technical Specifications

Description

The compact URSA Mini camera with EF lens mount, 4.6K Super 35 sensor and an incredible 15 stops of dynamic range, is lightweight and perfectly balanced for handheld use and comfortable enough for all day shooting. URSA Mini 4.6K EF features professional 12G-SDI connections, 5” fold out touchscreen monitor and side grip with camera control functions as well as dual CFast card recorders, built in stereo microphones and more

Download Manual Download Software

Camera Features

Effective Sensor Size

25.34mm x 14.25mm (Super35)

Lens Mount

EF Mount.

Lens Control

EF via mount pins.

Dynamic Range

15 Stops.

Shooting Resolutions

4608 x 2592,

4096 x 2304 (4K 16:9),
4608 x 1920 (4K 2.4:1),
4096 x 2160 (4K DCI),
3840 x 2160 (Ultra HD),
3072 x 2560 (3K Anamorphic),
2048 x 1152 (2K 16:9),
2048 x 1080 (2K DCI),
1920 x 1080

Frame Rates

Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60p in 4.6K, 120p in 2K windowed.

Focus

Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control

Iris button automatically adjusts the lens iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screen Dimensions

5 inch 1920 x 1080

Screen Type

LCD capacitive touchscreen

Metadata Support

Automatic camera data and user data such as shot number, filenames and keywords.

Controls

Touchscreen menus on 5 inch screen. Push buttons for other controls. 2 assignable shortcut keys.

Connections

Total Video Inputs

1 x SDI

Total Video Outputs

1 x SDI, 1 x SDI Monitoring.

SDI Rates

1.5G, 3G, 6G, 12G.

Optical SDI

None.

Analog Audio Inputs

2 x XLR analog switchable between mic and line levels. Phantom power support.

Analog Audio Outputs

1 x 3.5mm headphone jack, supports iPhone microphone for talkback.

Built in Speaker

Mono.

Reference Input

Tri-Sync/Black Burst/Timecode.

Remote Control

2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.

Computer Interface

USB 2.0 Mini-B port for software updates.

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

Mono.

Standards

SD Video Standards

None.

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1

SDI Audio Sampling

48 kHz and 24 bit

Media

2 x CFast for HD and Ultra HD recording.

Please click here for a summary of compatible media.

Media Format

Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

Codecs

CinemaDNG RAW, CinemaDNG RAW 3:1, Apple ProRes 4444 XQ QuickTime, ProRes 4444 QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime and ProRes 422 Proxy QuickTime.

Control

External Control

Blackmagic SDI Control Protocol. 2 x 2.5mm LANC for lens and record control.

Color Corrector

DaVinci YRGB.

Talkback and Tally

Live Tally Indicator

Tally on LCD, viewfinder and studio viewfinder.

Talkback

SDI Channels 15 and 16.

Storage Features

Storage Type

2 x CFast 2.0

Storage Rates

4608 x 2592

CinemaDNG RAW - 381 MB/s

CinemaDNG RAW 3:1 - 180 MB/s

CinemaDNG RAW 4:1 - 135 MB/s

3840 x 2160

Apple ProRes 444 XQ - 250 MB/s

Apple ProRes 444 - 165 MB/s

Apple ProRes 422 HQ - 110 MB/s

Apple ProRes 422 - 73.6 MB/s

Apple ProRes 422 LT - 51 MB/s

Apple ProRes Proxy - 22.4 MB/s

1920 x 1080

Apple ProRes 444 XQ - 62.5 MB/s

Apple ProRes 444 - 41.25 MB/s

Apple ProRes 422 HQ - 27.5 MB/s

Apple ProRes 422 - 18.4 MB/s

Apple ProRes 422 LT - 12.75 MB/s

Apple ProRes Proxy - 5.6 MB/s

Storage rates based on 30 frames per second.

Recording Formats

Lossless CinemaDNG RAW, RAW 3:1 and RAW 4:1 with film dynamic range at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080. Apple ProRes 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with either film or video dynamic range.

Software

Software Included

URSA Mini Operating System.

DaVinci Resolve Studio for Mac and Windows including activation key.

Blackmagic Camera Setup.

Operating Systems

Mac 10.11 El Capitan,
Mac 10.12 Sierra or later.

Windows 8.1 or Windows 10.

Power Requirements

Power Supply

1 x External 12V power supply. 12-pin molex connector on rear battery plate.

External Power Input

1 x 4-pin XLR port for external power or battery use.
1 x 12-pin molex connector on rear battery plate.
Custom V-mount battery plate with D-tap +12V regulated output from camera.

Power

Rear camera mount compatible with industry standard V-mount or gold mount battery plates.

Acessories

Optional Accessories

URSA Mini Shoulder Kit including top handle and extender arm

URSA Viewfinder

URSA Studio Viewfinder

URSA VLock Battery Plate

Physical Specifications

Environmental Specifications

Operating Temperature

0°to 40°C (32° to 104°F)

Storage Temperature

-20°to 45°C (-4° to 113°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic URSA Mini 4.6K EF

Turret dust cap

Side Handle with LANC Cable and strap

Power supply

SD card with software and manual

DaVinci Resolve Studio with activation key

Warranty

12 Month Limited Manufacturer's Warranty.
