WATSON D-4203 OVERVIEW

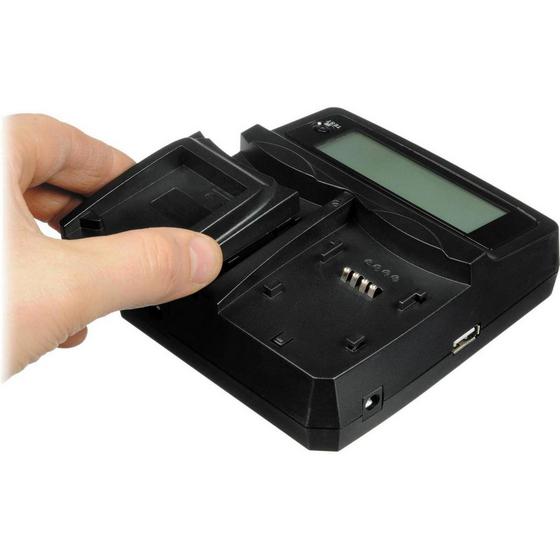

The Duo LCD Charger for L & M Series Batteries from Watson conveniently charges two batteries simultaneously, drawing power from either an AC wall source (an AC cord with two-prong plug is included) or a 12/24V DC power source (a DC car charger is also included). Additionally, the Duo Charger features a USB power output to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input.
With two easily interchangeable plates, the intelligent charger can also be used for other battery models that are not listed above via the separate purchase of an additional battery plate that's compatible with the intended battery model.
The intelligent charger features an LCD display that graphically shows charge status for both batteries. This allows you to test batteries instantaneously, so you can easily decide which Li-ion cells to bring with you for the day. With protection against overcharging, overheating, and short circuit, the Duo Charger safely, conveniently, and quickly recharges up to two compatible Li-ion batteries and one USB-powered device.
Features
- Dual Bay ChargerCharges two batteries simultaneously.
- LCD DisplayThe LCD display shows charging status, charging voltage, USB output, and DC output.
- USB OutputCharge or supply power for MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input--even while you're charging your digital camera or camcorder batteries. USB output is also displayed on the LCD.
- Test ButtonTest the charge of a battery even with the Duo Charger unplugged by sliding the battery into the charging plate and pressing the Test button. Press the button a second time to display the voltage of the battery.
- Safety FeaturesShort-circuit protection, overcharge protection, and overheat protection.
- CompatibilitySony NP-F550, NP-F570, NP-F730H, NP-F750, NP-F770, NP-F930, NP-F950, NP-F960, NP-F970, NP-FM30, NP-FM50, NP-FM500H, NP-FM55H, NP-FM70, NP-FM90, NP-FM91, NP-QM71, NP-QM71D, NP-QM91, and NP-QM91D type
WATSON D-4203 SPECS
Power Input 100-240 VAC, 50/60 Hz, 12/24 VDC, 2.0 A
Power Output 1.2-8.4 VDC, 2.0 A (max),
Additional Output USB 2.0, 5 VDC, 1 A (max), for charging USB devices
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions Charger: 4.9 x 4.5 x 1.8" (12.5 x 11.5 x 4.5 cm)
Cord length: 4.7 ft (1.4 m)
Box Dimensions (HxWxD) 2.6 x 6.3 x 9.7
