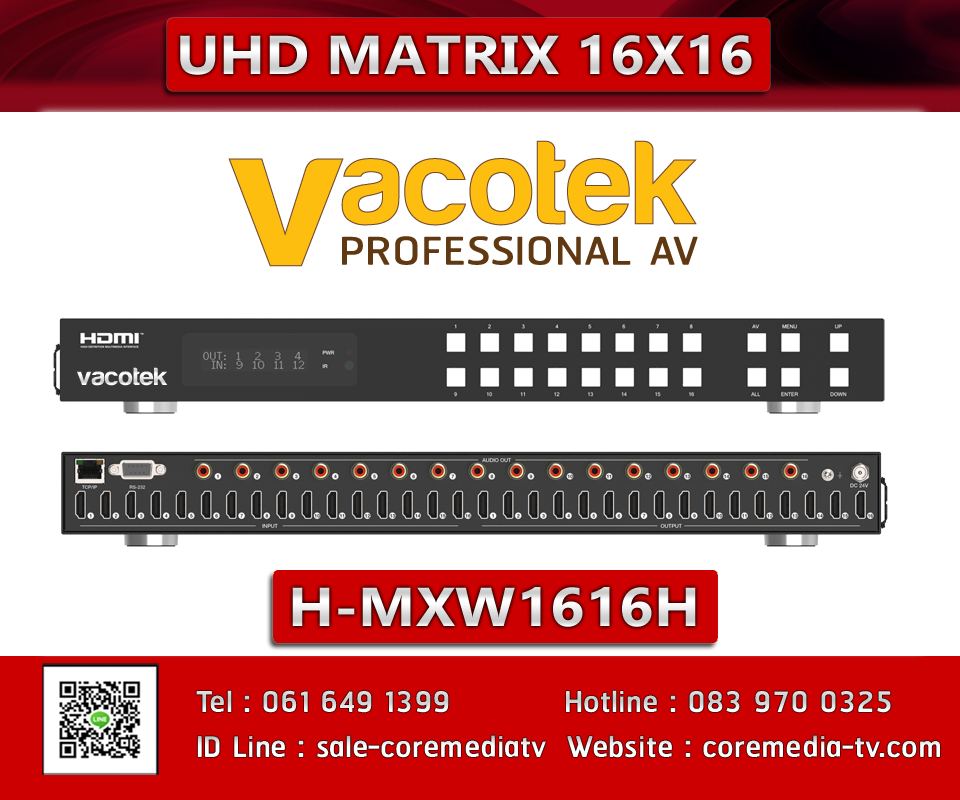

MXW1616H UHD MATRIX 16X16 With Scaling 4K to HD

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2/1.x

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@60Hz (4:4:4)

Color Space

RGB, YCbCr 4:4:4/4:2:2/4:2:0

Color Depth

8-bit, 10-bit, 12-bit

HDMI Audio Formats (Pass-through)

LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

Coax Audio Formats

LPCM 2.0, Dolby Digital / Plus, DTS 5.1

HDR formats

HDR10,HDR10+,Dolby Vision, HLG

ESD Protection

Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connection

Input Ports

16×HDMI Type A [19-pin female]

Output Ports

16×HDMI Type A [19-pin female]

16×Coax Audio (RCA)

Control Ports

1×TCP/IP [RJ45]

1×RS-232 [D-Sub 9]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

440mm (W)×200mm (D)×44mm (H)

Weight

3.1kg

Power Supply

Input: AC 100 - 240V 50/60Hz, Output: DC 24V/3.75A

(US/EU standard, CE/FCC/ULcertified)

Power Consumption

76.8W

Operating Temperature

-10°C ~ 45°C / 14°F ~ 113°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

Resolution / Cable length

4K60 -

Feet / Meters

4K30 -

Feet / Meters

1080P60 -

Feet / Meters

HDMI IN / OUT

16ft / 5M

32ft / 10M

50ft / 15M
