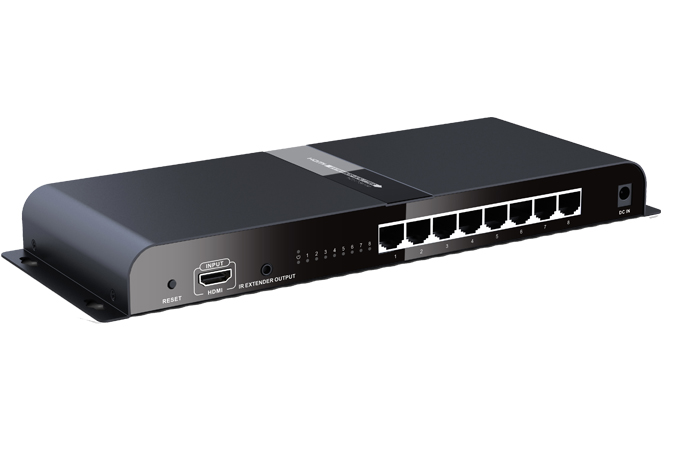

LKV318-HDbitT, 1X8 HDMI Extender Splitter over CAT6 with IR

LKV318-HDbitT, 1X8 HDMI Extender Splitter over CAT6 with IR

LKV318-HDbitT is a product for splitting and extending your HDMI signal to multiple displays over long distance. It uses HDbitT technology to split one HDMI source to 8 displays simulataneously via CAT6 cables up to 120m / 394ft under 1080P@50Hz/60Hz. It also supports IR pass back function to control the source device remotely.

Features：

1.Incorporates HDbitT technology
2.Full compatible with HDMI & HDCP
3.Distributes 1 HDMI source to 8 HDbitT displays over CAT5/5e/6 cable
4.Supports resolutions from 480i@60Hz to 1080p@50Hz/60Hz
5.Supports transmission distance up to 120 meters through CAT6 cable
6.With IR pass-back function

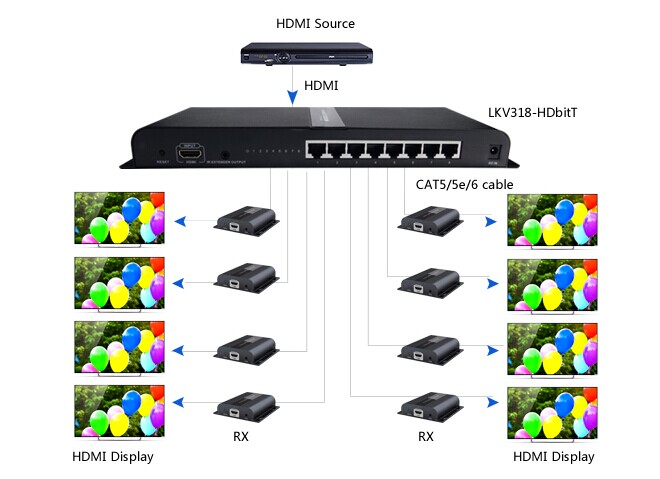

Diagram
