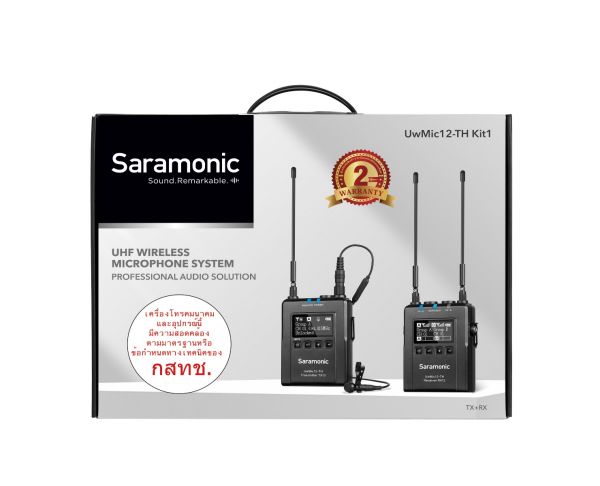

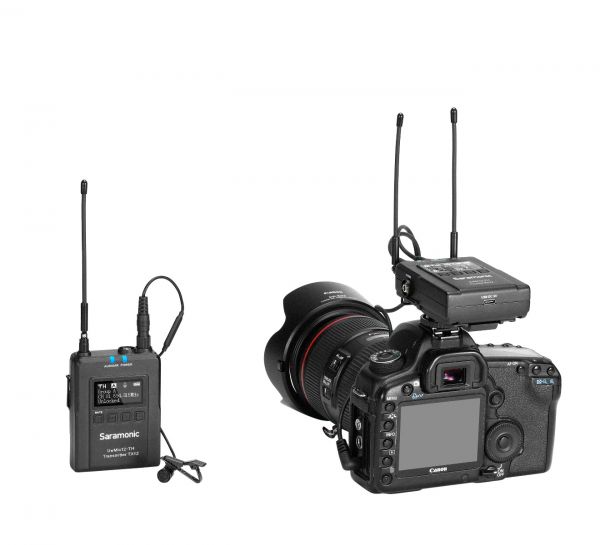

ไมโครโฟนไร้สาย คลื่น UHF ( 1ตัวรับ+1ตัวส่ง)

Transmitter

• Channels : 11
• Groups : A or B
• Oscillator Type : PLL Synthesizer
• Frequency Range : 694.4 MHz – 757.8 MHz
• Reference Deviation : +/- 5 kHz (-60dBV, 1kHz input)
• Signal to Noise Ratio : 70 dB or more
• Spur Suppression : -60 dB
• Voice Delay : 12 ms
• Antenna : 1/4λ wire antenna
• Audio input connector : TX12 TH , 3.5mm mini jack
• Reference audio input level : -60dBV (MIC input, 0dB attenuation)
• Distortion : 0.5% or less
• Weight : TX12 : 211.4g
• Battery：Two AA size batteries (Allow 5V DC by USB Type-C)
• Dimensions：170.9 x 63.5 x 30.0 mm
• Operating temperature : 0℃ to 50℃
• Storage temperature : -20℃ to +55℃

Receiver

• Channels : 11
• Groups : A or B
• Oscillator Type : PLL Synthesizer
• Audio output connector : 3.5mm mini jack
• Antenna : 1/4λ wire antenna
• Audio output level : -60dBV
• Headphone output level : 30mW (16Ω)
• Receiver frequencies : 694.4 MHz – 757.8 MHz (Allow 5V DC by USB Type-C)
• Signal to Noise Ratio : 70 dB or more
• Voice Delay : 12 ms
• Reference Deviation : +/- 5 kHz (-60dBV, 1kHz input)
• Frequency response : 40Hz to 18kHz (+/-3dB)
• Distortion : 0.5% or less
• Spur Suppression : -60 dB
• Weight : 218.7g (Excluding batteries)
• Battery : Two AA size batteries
• Dimensions : 170.9 x 63.5 x 30.0 mm
• Operating temperature : 0℃ to 50℃
• Storage temperature : -20℃ to +55℃

• Uwmic12-TH RX12 receiver x 1
• Uwmic12-TH TX12 transmitter x 1
• DK3A Omni-directional lavalier microphone x 1
• USB-C charging cable x 2
• 3.5mm TRS Locking-type plug audio cable for cameras x 1
• SR-C2004 3.5mm TRS Male to
• Dual Locking-type 3.5mm TRS Male Y-Cable x 1
• XLR to 3.5mm TRS Locking-type plug audio cable x 1
• windproof cat fur x 1
• antennas x 3
• Belt clip x 1
• Cold Shoe Mount Adapter x
