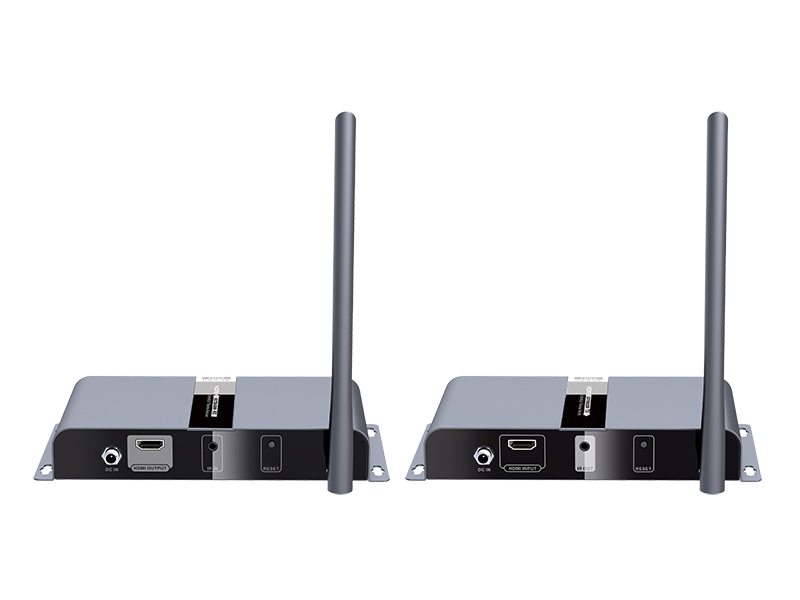

LKV398 4k HDMI Wireless Extender 200m

Introduction

This transmitter extends HDMI signal wirelessly from source device to display device up to 200meters with the advanced application of HDbitT
cables between sender (TX) and receiver (RX) which makes the installation easy and clean.
Note:
1) Transmission distance will be different due to the environment.
2) Wall, brick or glass will shorten the signal cover range or cause big signal loss.

Features

1. Extend HDMI signal wirelessly

2. 200m long transmission distance

3. HDMI 2.0 and HDCP2.2 compliant

4. High resolution up to 4K×2K@60Hz ultra HD

5. Support point to point and point to multi-point configuration (1 TX to 2 RX)

6. Strong anti-interference ability by running at 5.1~5.8GHz operation frequency

7. IR passback with 20-60KHz wide frequency to control source device from receiver side easily

Diagram Point to point

Diagram Point to multipoint
Specifications

Items	Specification
Voltage/Current	DC5V/3.5A
Power consumption	TX＜11W     RX＜12W
HDMI compliance	HDMI2.0
HDCP compliance	HDCP2.2
HDMI connector	Type A, female
HDMI input resolution supported	480i@60Hz、480p@60Hz、 576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、 1080p@50/60Hz、4Kx2K@24/25/30/ 60Hz
HDMI output resolution supported	1080p@60Hz、4Kx2K@30/60Hz
Audio formats supported	L/R stereo audio
Maximum transfer rate	18Gbps
Input and output TMDS signal	0.7～1.5Vp-p(TMDS)
Input and output DDC signal	5Vp-p(TTL)
Input cable length supported	≤5m(AWG24 HDMI2.0cable standard)
Output cable length supported	≤5m(AWG24 HDMI2.0cable standard)
IR remote control	Support IR passback with 20-60KHz frequency
Transmission method	5.1～5.8G Wireless transmission
Transmission distance	200 Meters
Latency	≤200 ms
Electrostatic protection of the whole machine	1a Contact discharge level 3 1b Air discharge level 3  Standard: IEC61000-4-2
Working temperature	0～50℃
Storage temperature	-10～70℃
Humidity (no condensation)	0～90%
Dimension	195.4(D) x138.3(W) x 30.8(H)mm
Material	Iron alloy material + crystal panel
Finishing	Grit blast
Colour	Black
Weight	TX：560g，RX：550g
Mean time between failures (MTBF)	>30000 Hours
