FEATURES

• Implements HDBaseT extension technology using only one Cat 5e/6 cable to connect the transmitter and receiver
• Long distance transmission – up to 100 m
• Supports resolutions of up to Ultra HD 4Kx2K and 1080p Full HD
• HDMI (3D, Deep Color, 4Kx2K); HDCP compatible
• Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
• Supports up to 340MHz bandwidth for high performance video
• Signaling rated up to 3.4 Gbits
• ExtremeUSB®Support – supports all USB 2.0 High Speed device
• Supports Dolby True HD and DTS HD Master Audio
• Consumer Electronics Control (CEC)Support
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
• USB 2.0 Support – connects devices such as keyboard, mouse, flash drive, printer, microphone, speakers, USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth

Note: The VE813 supports USB transfer rates of up to 30 Mbps

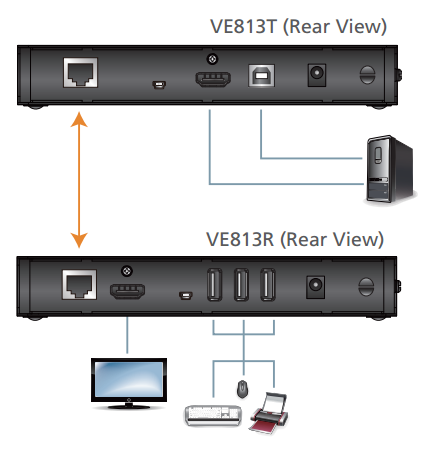

DIAGRAM
