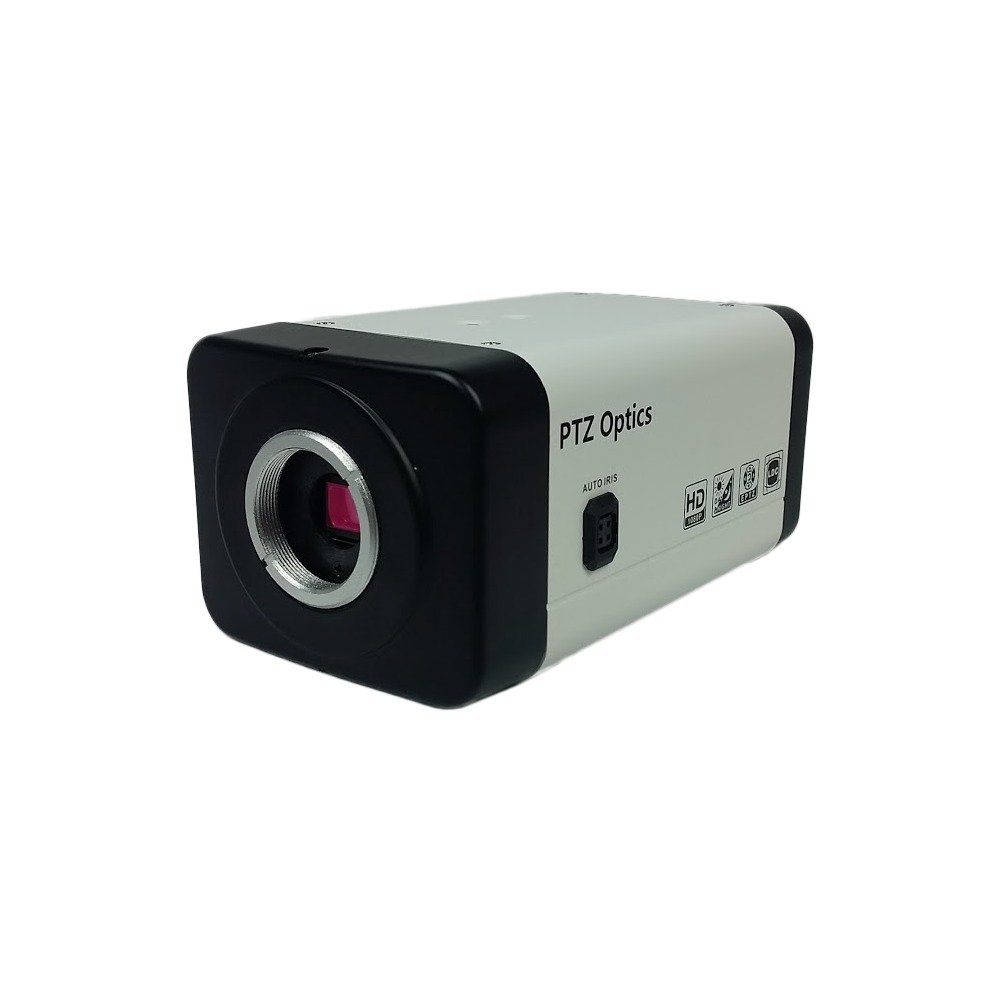

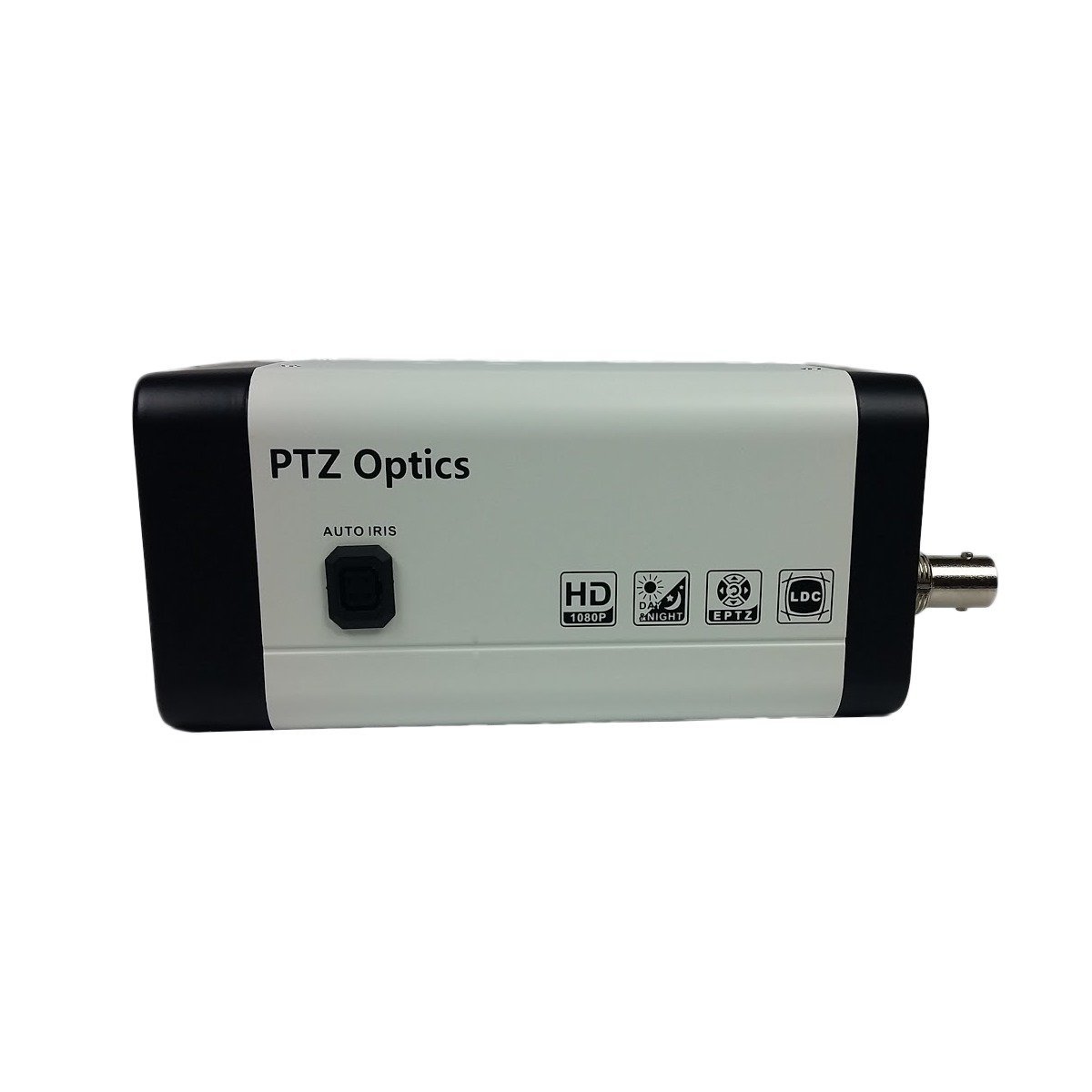

PTZOptics ZCAM VL 2.7MP 1080p Full HD Box Camera,4xOptical Zoom,30fps,H.264,HD-SDI

Feature

• Frame Rate: 1080p 60/50/30/25, 1080i 60/50, 30/25, 720p 60/50 30/25
• Included Lens: F 2.8mm ~ 12mm, F1.4
• Incl. Lens Zoom: 4X Optical Zoom
• Incl. Lens Field of View: 122°
• Min Lux : .05 Lux (F1.8, AGC ON )
• Video CMOS Sensor: 1/2.7” CMOS, 2.07 Mega Pixels
• Vertical Flip & Mirror: Supported
• Incl. Lens Horizontal Field of View: 28° (tele) – 122° (wide)
• Warranty: 3 Years

Be seen in 1080p

Crystal clear High Definition 1080p video with lossless 20X optical zoom letting you get up close to see and interact with your team.

Panasonic CMOS Sensor

Full 1080p quality from a built-in 1/2.7″  inch HD CMOS Sensor.

HD-SDI Connectivity

HD-SDI is a preferred cabling for 1080p video over long distances.

Wide Field of View

The 20X PTZOptics ZCam models offer a wide field of viewof 60.7°, with the ability to zoom into narrow a 3.4°.

RS-485 Camera Control

The RS-485 control interface can be used with VISCA or Pelco commands for zoom controls.

3 Year Warranty

PTZOptics offers the industries best 3 Year Warranty. Repairs are handled in our USA repair center located outside Philadelphia, PA.

Technical Specifications

• Power Supply: 12W – 1A
• Input Voltage: 12V DC (10.8 – 13.0V DC)

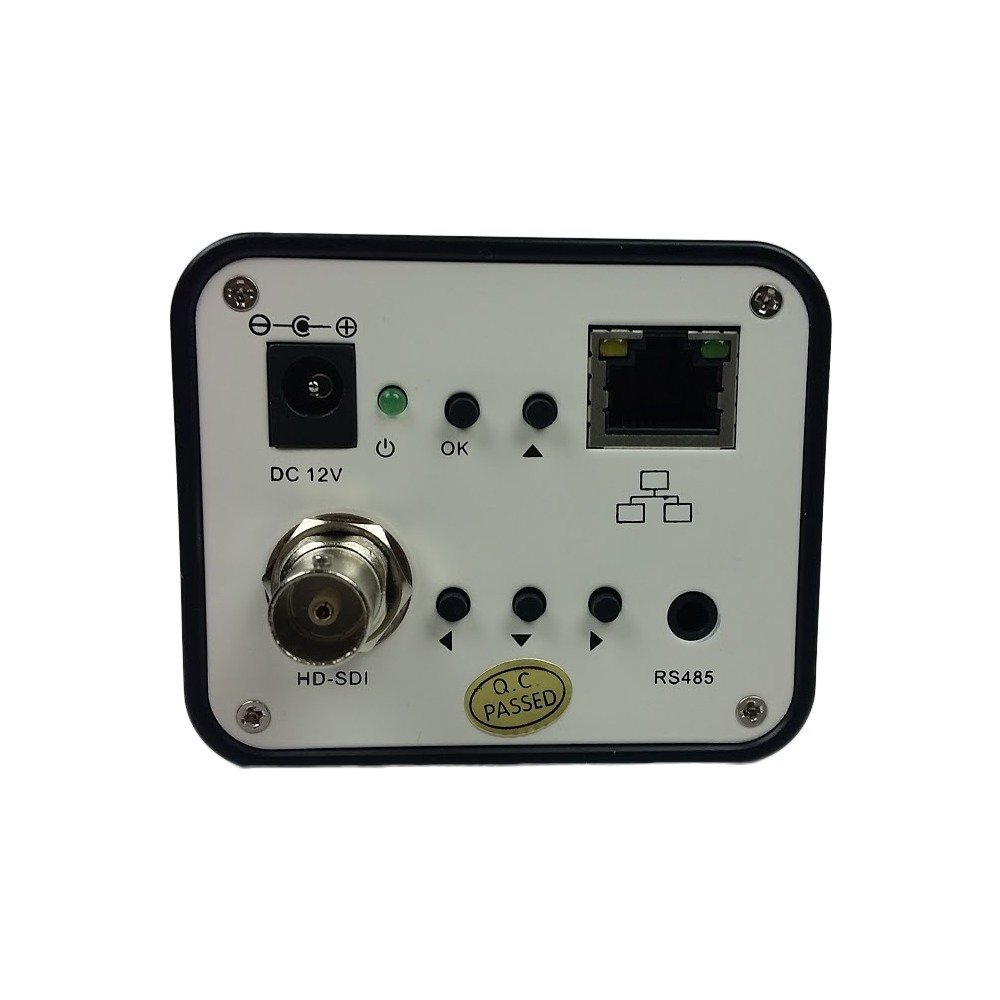

• Video Output Interface: 3G-SDI, RJ45 IP Network
• Communication Interface: RS485 VISCA, Pelco-D, Pelco-P
• Power Supply Interface: JEITA type Power Adapter (DC IN 12V)
• Dimensions: 2.8”W x 5.94”D x 2.4”H
• Weight: 0.82 lbs. (1.1 lbs. w/ lens)
• Box Dimensions: 6.25”W x 8.25”D x 4.6”H
• Box Weight: 1.6 lbs.
